Outsunny 845-540V02 Benutzerhandbuch
Quicklinks
Verwandte Anleitungen für Outsunny 845-540V02
Inhaltszusammenfassung für Outsunny 845-540V02

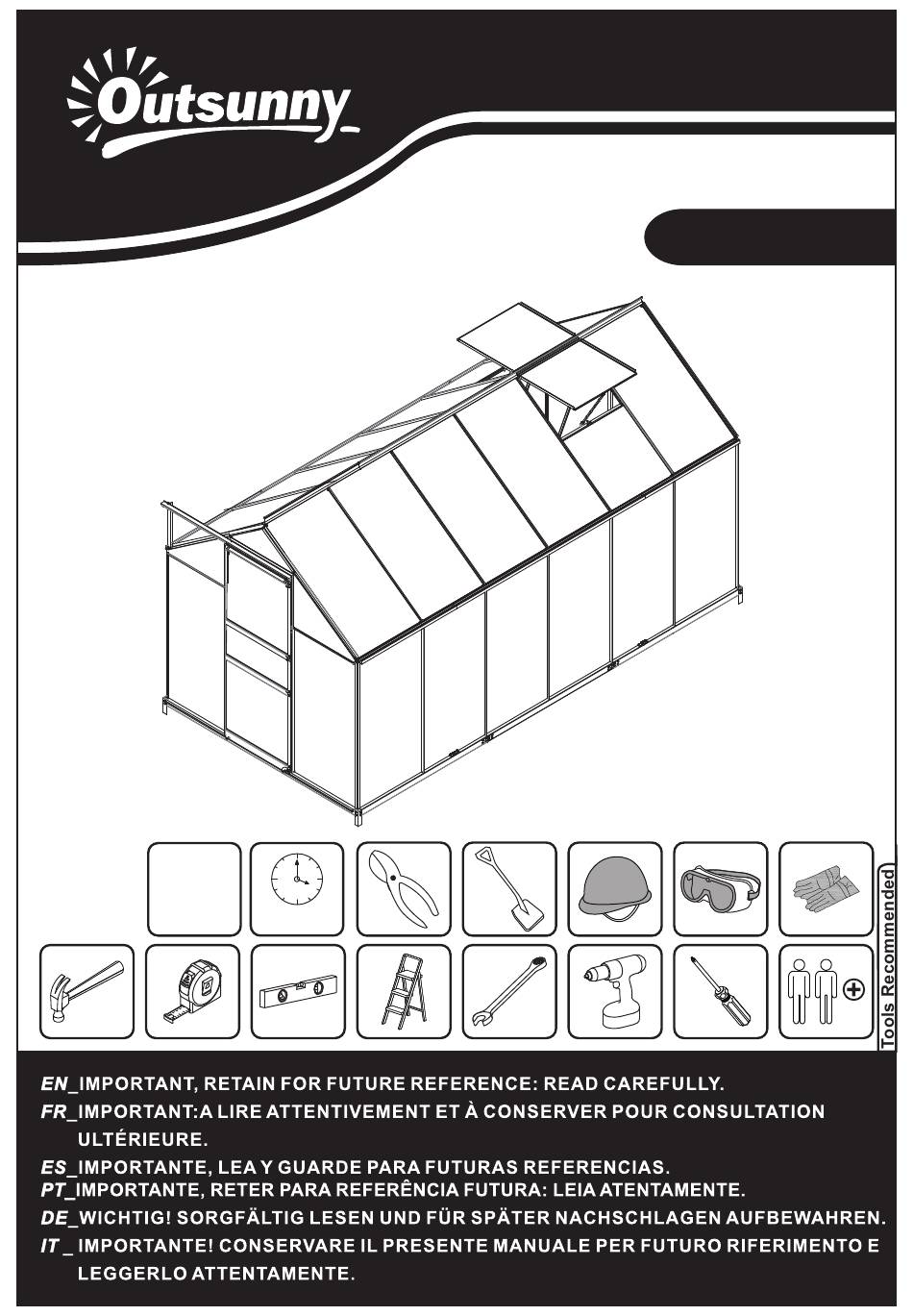

- Seite 1 IN230400198V03_GL 845-540V02 STEPS 5 HR...
- Seite 5 EN_Several steps in this manual involve inserting F10 Bolts into the groove of Aluminum profiles as a preparation for further installation. Dia-grams above illustrate how to use such inserted bolts. F10 BOLTS AND NUTS Part No. F10 refers to both the bolt and the nut. In some steps only the bolt or the nut will be used and in other steps the whole set will be used.
- Seite 6 BOX 1/2 BOX 1/2 Part No. Part Qty. Part No. Part Qty. 20-1 20-2 BOX 2/2 Part No. Part Qty.
- Seite 7 Anz. Teilenr. Teil...
- Seite 9 EN_Two foundation options with pre-fabricated Base FR_Deux options de fondation avec base préfabriquée ES_Dos opciones de cimentación con base prefabricada PT_Duas opções de fundação com base pré-fabricada DE_Zwei Fundamentoptionen mit vorgefertigtem Sockel IT_Due opzioni di fondazione con base prefabbricata EN_Option 1:Corner Stakes mounted into the soil EN_Option 2:Corner Stakes mounted into concrete FR_Option 1:Piquets d'angle montés dans le sol FR_Option 2:Piquets d'angle montés dans le béton...
- Seite 10 EN_Option 3 For installation on hard surfaces (such as concrete floors), the corner posts should be stood up and fixed to the ground using expansion bolts. If it's a wooden floor, self-tapping screws can be used for fastening (the fixing screws are not included and need to be purchased separately).
- Seite 12 EN_1. Place the two ends of the clip into the groove of the frame. 2. Position the middle section of the clip against the hollow chamber panel. Two edges of the clip are under the edge of the hollow chamber panel, and the middle edge holds the panel in place.
- Seite 15 EN_Pay attention to the nut installation direction FR_Attention au sens d'installation de l'écrou ES_Preste atención a la dirección de instalación de la tuerca PT_Prestar atenção à direção de instalação da porca DE_Achten Sie auf die Montagerichtung der Mutter IT_Prestare attenzione alla direzione di installazione del dado...
- Seite 16 EN_The position of installing door FR_La position d'installation de la porte ES_La posición de instalación de la puerta PT_A posição de instalação da porta DE_Die Position des Einbaus der Tür IT_La posizione di installazione della porta...
- Seite 25 EN_Reserve 2 pieces of F10 for installing 22 B26 FR_Réserver 2 pièces de F10 pour l'installation 22 B26 ES_Reservar 2 piezas de F10 para instalar 22 B26 PT_Reservar 2 peças de F10 para a instalação 22 B26 DE_Reservieren Sie 2 Stück F10 für den Einbau von 22 B26 IT_Riservare 2 pezzi di F10 per l'installazione di 22 B26 EN_Reserve 1 pieces of F10 for installing B26 FR_Réserver 1 pièces de F10 pour l'installation B26...
- Seite 27 EN_Please reserve bolts FR_Veuillez réserver des boulons ES_Reservar tornillos PT_Reservar parafusos DE_Bitte Bolzen reservieren IT_Si prega di prenotare i bulloni EN_Windows’ position can be adjusted optionally FR_La position des fenêtres peut être ajustée en option ES_La posición de las ventanas puede ajustarse opcionalmente PT_A posição das janelas pode ser ajustada opcionalmente DE_Die Position der Fenster kann optional angepasst werden IT_La posizione delle finestre può...
- Seite 28 EN_Reserve 2 pieces of F10 for installing B26 FR_Réserver 2 pièces de F10 pour l'installation de B26 ES_Reserva 2 piezas de F10 para instalar B26 PT_Reservar 2 peças de F10 para a instalação de B26 DE_2 Stück F10 für den Einbau von B26 reservieren IT_Riservare 2 pezzi di F10 per l'installazione di B26.
- Seite 39 EN_ADVICE It is not necessary but we would advise:For additional strength, you can also use some glue or tapes between the polycarbonate panel and the aluminium frame to enhance the stability. Note: Silicone sealant and glue gun are not included in our tool kit.You can buy them locally.Only use silicone sealant suitable for aluminium FR_CONSEILS Ce n'est pas nécessaire mais nous vous conseillons:...
