Mounting the accessories

• Turn the side of the lower flange with the correct collar diameter to face upwards.
The collar diameter depends on the axis diameter of the accessory.
• Place the accessory disc on the lower flange.
• Lock the driven shaft with a No. 6 Allen key.
• Fit the nut flange.

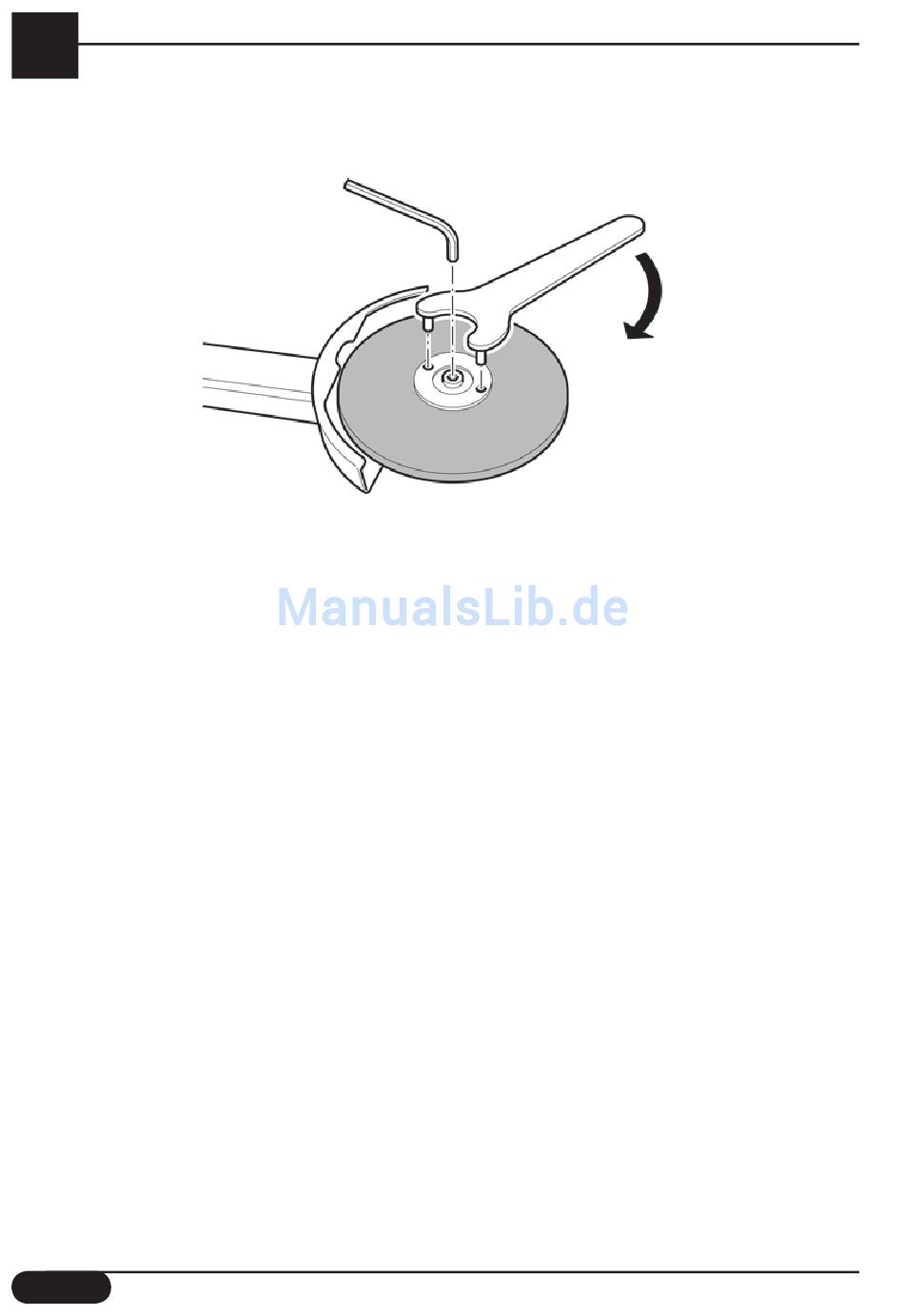

• Secure the nut flange with the pin wrench and No. 6 Allen key.
Consult a Cibo applications expert to determine the correct type of finishing disc for each
application.
