4.2 Connecting the manual control LH90 / LH100 to
the LZV100
LH100

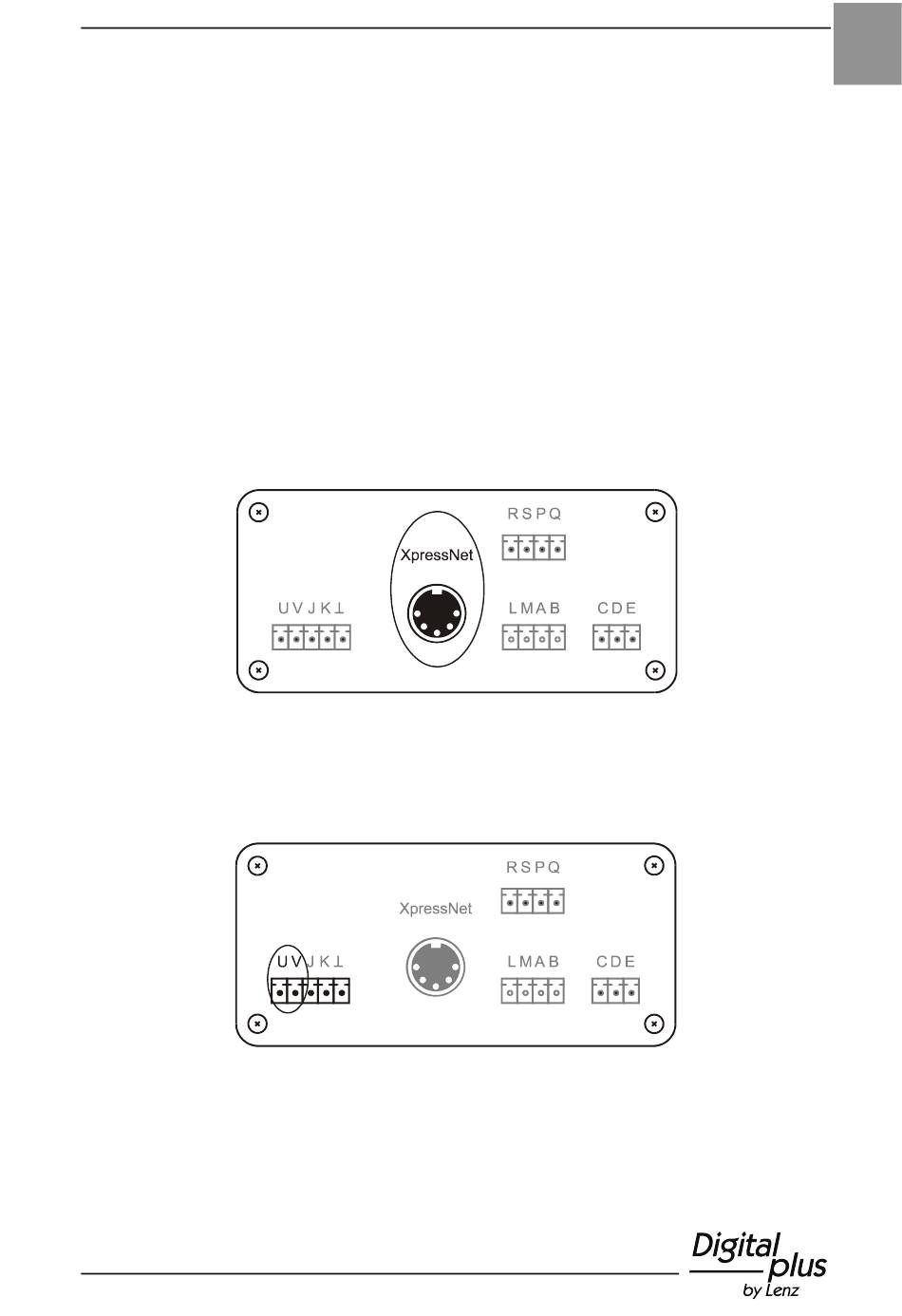

Plug the 5-pole DIN-plug of the connecting cable into the 5-pole DIN-
plug at the rear of your LZV100:
4.3 Connecting the LZV100 to the transformer
Connect terminals U and V of the LZV100 to the connecting terminals
of the transformer TR100 (or TR200)
Connections U,V to the power supply of the LZV100
LH90
Plug one end of the coiled cable
with the Western-plug (the small
connector made of see-through
plastic) into the socket of the
LH90.
