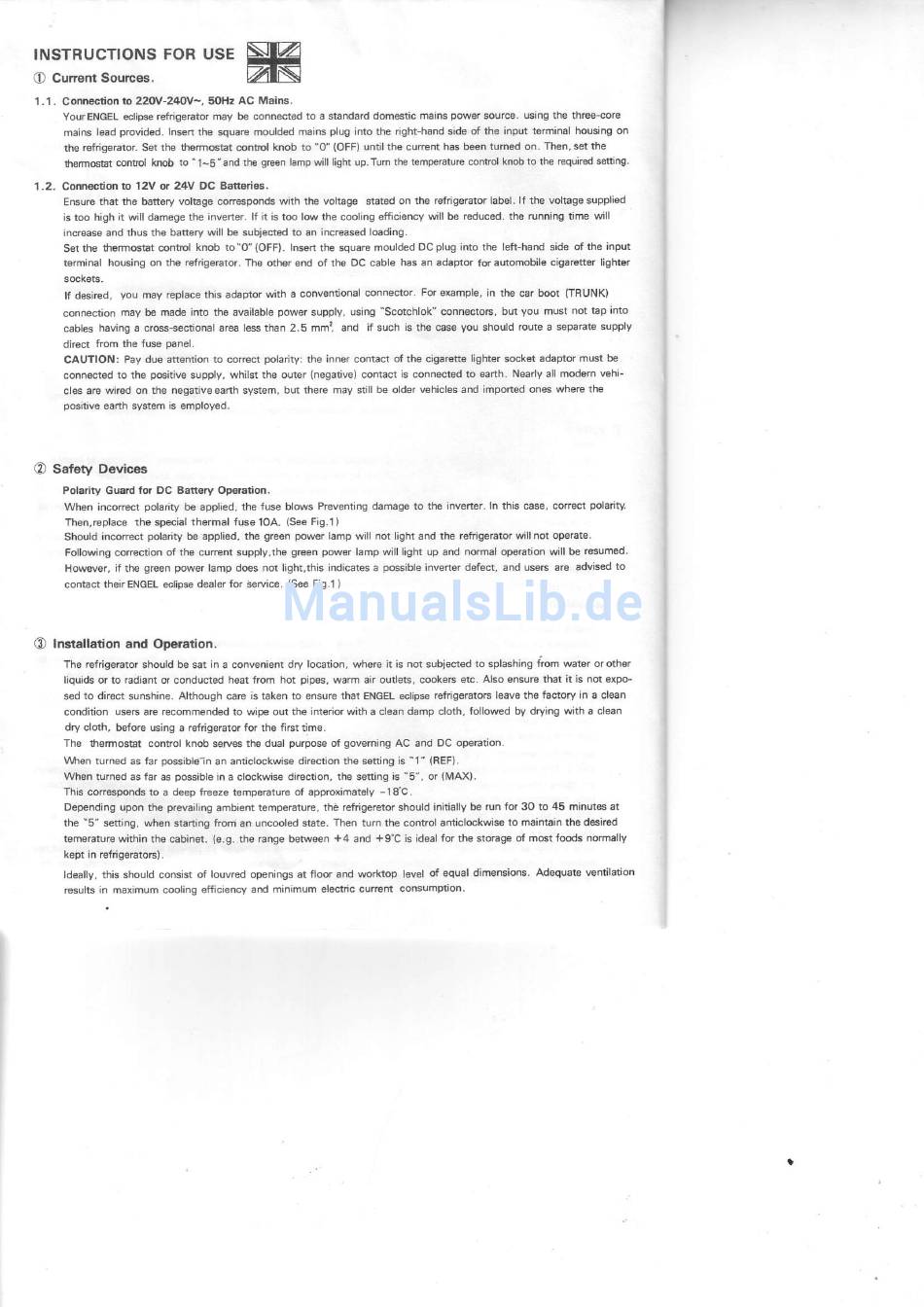

INSTRUCTIONS FOR USE
O Cunent Sourcqs.
1 l. conn€cr:on to 220v-2!tov-, 50Hz Ac Maiß.
YouTENGEL ectipB€ ref.ig€rator may be connected to a slandard domastic mains pow€r source. using the lhree-core
mains lead prcvid€d. Insert rhe square moulded mains plug intothe ght-hand side of the inptll terfiinal housing on
rhe refiigerator Set the tho.mo€tat contol knob to
'O" (OFF) |lntilthe currert has been tumed on. Thsn, set the
themos€t control knob to
"
1-5
"
and rh€ g.een lamp will light up. Tum the temperature control knob to the r€quired setting.
1.2. Connection to 12V or 24V DC Batt€ries.
Eßure thar rhs battery voltage coresponds with the volrage stated on the .efrige€tor label. lf th€ voltage suppla€d
is too high it will damege the inverter. lf it is too low the coolang efüciency will be reduced. the runniflg time wall
increase änd thus the battery will be subj€ct€d to an increased loading.
S€r ihe themostat conlrol k.ob to O" {OFF}. l.sert the square moulded DC plug into the left-hand sid€ of the input
torminal housing on the relrigeraror. The othsr snd of rhe DC cable ias an adaptor for automobile cigaretter lighter
lf desir€d, you may replace this adaptor with 6 conventonal connecror. For exampls, in the ca. boot IIBUNK]
connection m6y be mäde into the available power supply. using Scotchlok" connectofs, but You must not lap into
csbles having a cross€€ctional ärea less than 2,5 mmt, and if such is the case yoü shotild route ä separate supply
dkecr from the fus8 panel.
CAUTION: Pay du€ attention to corect pola tyr the inner contact of the cigärette lighter socket adaptor must be
connsctsd to ths positive supply, whilst rhe olrer {negative) contact is connecred to earth. Nearly 6ll modem vehi
cles ar€ wired on the negativeeanh system, but thsre may still be oldef vehicles and imported ones where the
positive oa.th svstem is employed.
O Safety Devices
Porsrify Guard lor DC 8attery Operation.
When ircorrect polaritv bs appliscl, the luse blows Preventing damage to the inveder. In this case. conect polarity
Then,replace the spscial thermal fus€ 1OA. (SeeFig.l)
Should incorrect polarity be appli€d, th€ g.een power lamp will not light and the refrigeraror willnot operate.
Following conecion of th€ current supply,the green power lamp will light up and normal op€ralion will be resumed.
However, if rhe g€en power lamp doos not light,lhis indicates a possible invener defect, and ussrs are advased to
contact theirENGEL eclipse dealer for 3ervice. (See Fig.1)
O Installation and Operation.
The refrigerato. should be sät in ä convenient dry location, where it is not subjeded to splashrng from water orothsr
liquids or to radiant or conducred hear trom hot pipss. wärm aif outlers, cookeß etc. Also snsure that i1 is nol expo-
sed to direct sunshino, Although care is täken to ensure that EitGEL eclipse refrigerators leave the faciory in zr cle6a
condition users äre recommended to wipe out the interior with a clean damp cloth, followed by drying with a clean
dry cloth, b€lore using a refigerato. for the fißt time .
The lhermosbet cont.ol knob s€rv6s the dual plrpose of governing AC and DC oporation.
Wtsn turned as far possiblein a. anriclockwise direction the s€tting is
"1" (REF).
wh6n turn€d as far as possible in a clockwise dißcfon, the setting is '5", or {[4AX).
This con€sponds to a deep f.ee.e temperature ot appro(imately - 1 8'c .
Depending üpoo the prevailing anbient temperature, thb refrigereror shoutd inkially be run fo.30 to 45 minut$ at
the
"5"
setting, when staning from an uocool€d stäte- Then tum the control anticlockwise to mainlain the desj.sd
temerature within tho cabinet. (e.9. the €nge betw€en .t4 and +9'C is ideal for the storäge of most toods normally
lept in refrigerators) .
tdealty. this should consist of louvred openings at tloor and worktop l€vel of squal dimensions. Ad€quate vsntilation
results In raxrmum cooling €fficEncy and al'nimum electnc cur.em consumption
