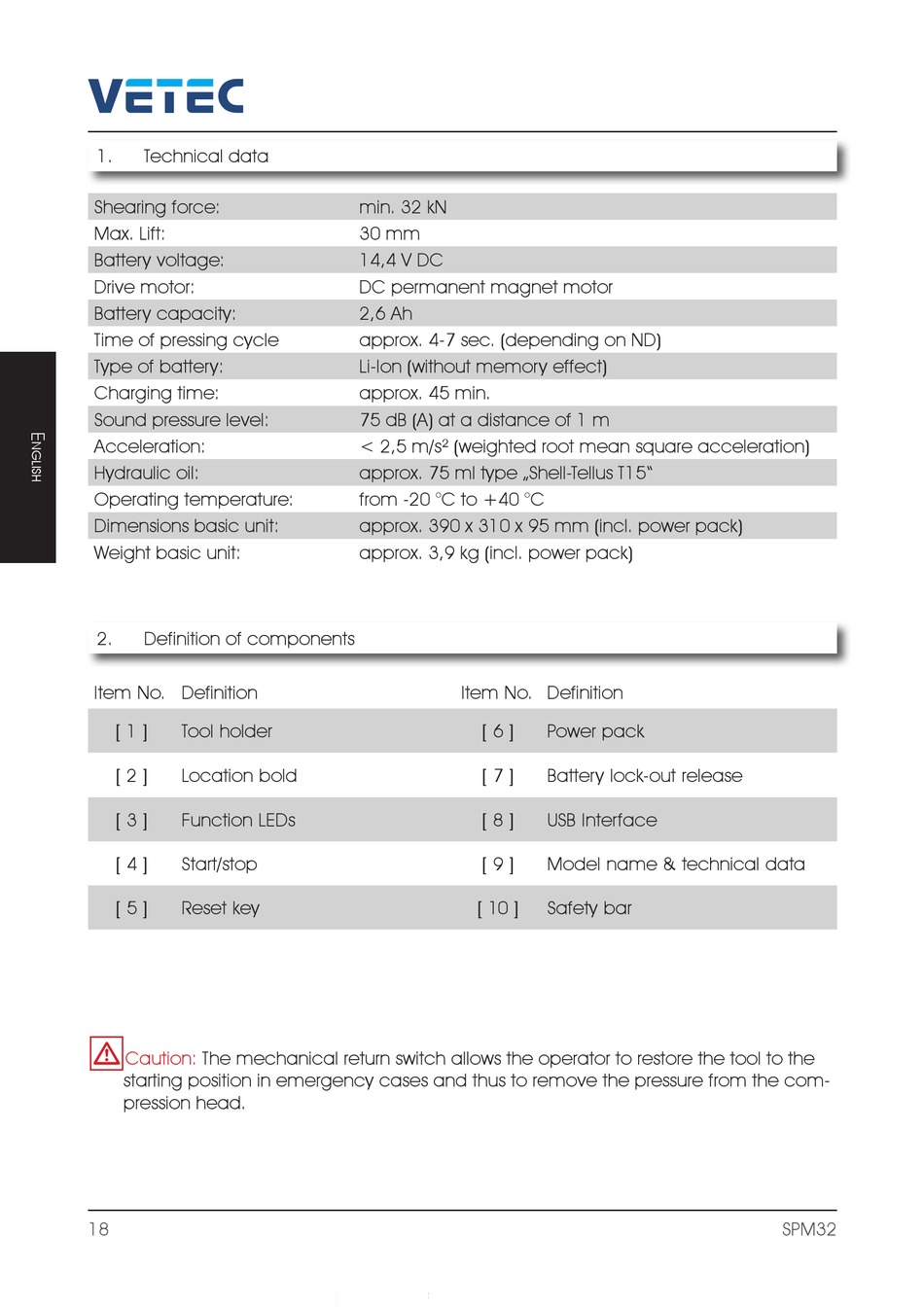

1.

Technical data

Shearing force:
Max. Lift:
Battery voltage:
Drive motor:
Battery capacity:
Time of pressing cycle
Type of battery:
Charging time:
Sound pressure level:
Acceleration:
Hydraulic oil:
Operating temperature:
Dimensions basic unit:
Weight basic unit:
2.

Definition of components

Item No. Definition
[ 1 ] Tool holder
[ 2 ] Location bold
[ 3 ] Function LEDs
[ 4 ] Start/stop
[ 5 ] Reset key
A
Caution: The mechanical return switch allows the operator to restore the tool to the
starting position in emergency cases and thus to remove the pressure from the com-
pression head.
18
min. 32 kN
30 mm
14,4 V DC
DC permanent magnet motor
2,6 Ah
approx. 4-7 sec. (depending on ND)
Li-Ion (without memory effect)
approx. 45 min.
75 dB (A) at a distance of 1 m
< 2,5 m/s² (weighted root mean square acceleration)
approx. 75 ml type „Shell-Tellus T15"
from -20 °C to +40 °C
approx. 390 x 310 x 95 mm (incl. power pack)
approx. 3,9 kg (incl. power pack)
Item No. Definition
[ 6 ]
[ 7 ]
[ 8 ]
[ 9 ]
[ 10 ]
Power pack
Battery lock-out release
USB Interface
Model name & technical data
Safety bar
SPM32
