handles on each side of the table. It is critical that you set the rods as shown below so the table will be correct when
flipped over.
Step 2: Once you are sure you have the rods set up correctly, slide the other side panel P1 onto the rods as shown in
FIGURE 2. Set the playfield P3 into the grooves in the side panels as shown in FIGURE 2. Once you have the
playfield set, place the playfield suport braces P10 on the playfield and slide the playfield supports rods H1 throught
the side panels and down the groove of the playfield supports brace, attach the playfield suport brace with screw H1
and plastic nut H3.
Step 3: Put the P8 into the End Apron holes, use the H5 acrossing H7 to lock the End Panel and Slide Panels. NOTE:
Be sure that the side Panels and End Panels are squre.
Step 4: Attach the leg suport brace P5 between the legs then using screw H9 to lock the legs suport
brace and leg. Attach each leg to the table side panel using two of the H6 and two of the H2 per leg, end
panel using bolt H10 and washer H7 to lock the legs as shown in FIGURE 4. Finishing leg assembly by
screwing in the leg levelers H11.
NOTE: If you have trouble inserting the leg bolts, you may have to go back and the cainet bolts slightly.
Step 5: This step requires two or more adults. Very carefully turn the table over and set it on its legs. Do not lift the
table by holding onto the rods. Put the eight PVC Rod Grips P6 on the rod ends and the P7 on the rod other ends.
Attach the Soccer Hoal Box onto the tnd panel using eight of the H5 as shown in FIGURE 5. DO NOT OVER-
TIGHTEN HARDWARE.
Game rules:
There are four rods at each table side. The first rod is a goalie, the second one – two defenders, the third
one is a five-men midfield line and the fourth one covers three attack players. Table football is played
between two or four people. Before the game, we form two teams. We choose our side of the pitch. We
can toss a coin to determine which team begins the game or we can basically throw the ball on the centre
of the table and thus the match begins. We move the rods to put the ball in motion. It is forbidden to turn
the rods by more than 360 degrees. You cannot shake the table or cause the ball to move in any other
mechanical way. The only part of the table which can be touched during the game are the rods of our
team. If the ball gets stuck in the place where it cannot be reached by any player, we can move it to the
nearest player. The objective of the game is to score a specific number of goals. Or we can also play over
a fixed period of time. The goal is regarded as scored correctly even if the ball hits the goal, bounces back
from the side wall and even returns to the pitch.
Maintenance:
Cleaning of the table – We recommend cleaning the table at least once a week. Use only dry, soft cloth
and a small amount of cleaning glass/dust cleaning agent (with a nozzle). Protect the pitch from sharp
items. Keep the pitch clean.

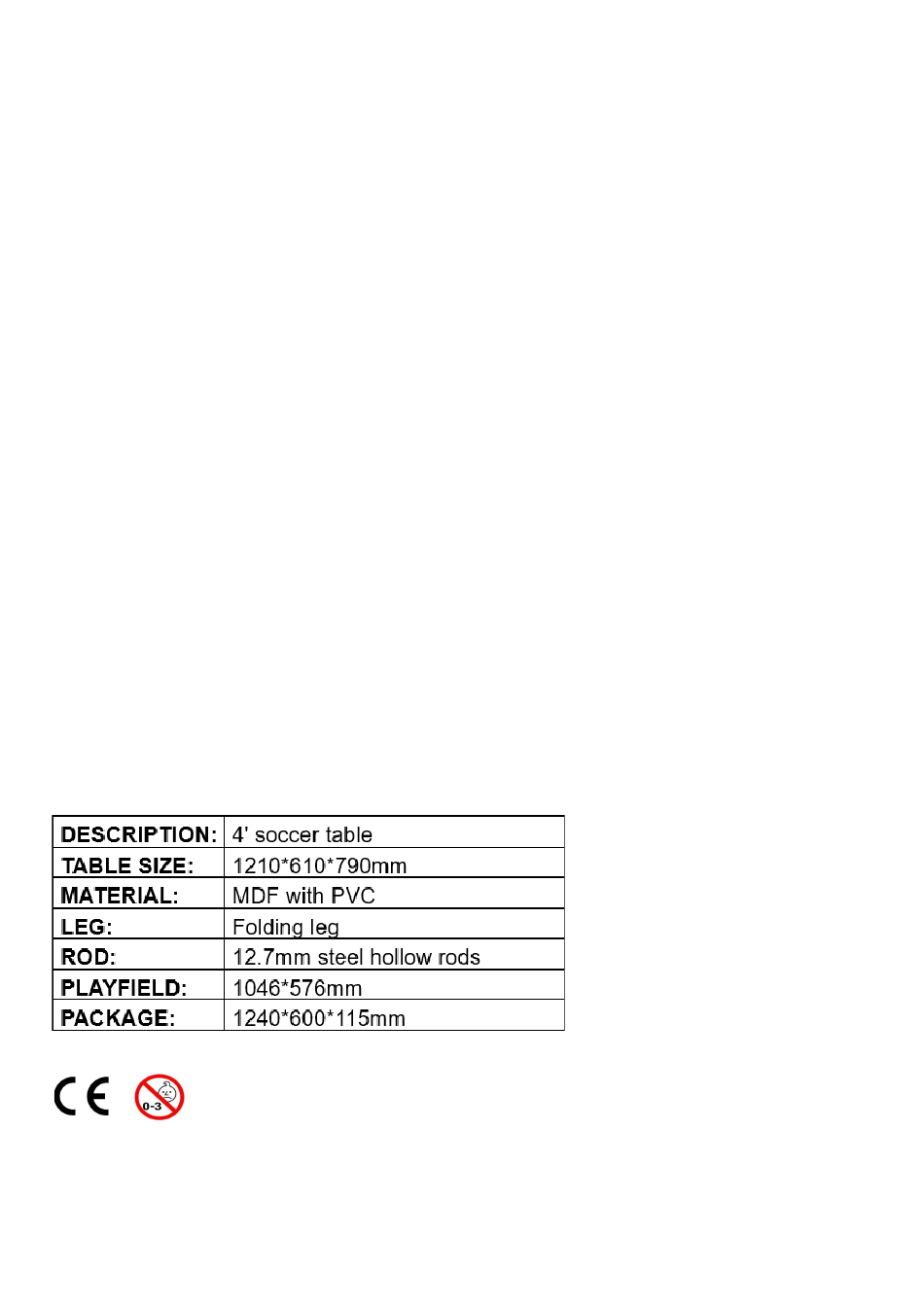

Specifications:
