CHAMELEON Sharp Montageanleitung Seite 3

Congratulations with your purchase!
• TÜV-certified magnetic mounting system.
• Simple and precise assembly: panels are easy to adjust and align to each other.
• Invisible mounting system: panels hang flush to the wall with a minimum gap.
• Dismountable system so you can take the product with you
• TÜV-certified magnetic mounting system.
• Simple and precise assembly: panels are easy to adjust and align to each other.
• Invisible mounting system: panels hang flush to the wall with a minimum gap.
• Dismountable system so you can take the product with you.
When mounting your Chameleon product, keep the following things in mind.
• The wall on which the boards are mounted must be suitable to provide sufficient security via the
right plugs and screws. The supplied screws and plugs are suitable for stone walls. In the case of a
different type of wall, make sure you have matching mounting material. Make sure that the screw
head can be deep enough in the mounting plate, without protruding. This is due to the magnetic load-
bearing capacity.
•
The wall must be smooth (no bumps or dents) and free of obstacles.
•
Magnetic surface of the plate should be completly in contact with back of the board to have it's full
holding power. Always mount magnets in the same flat plane.

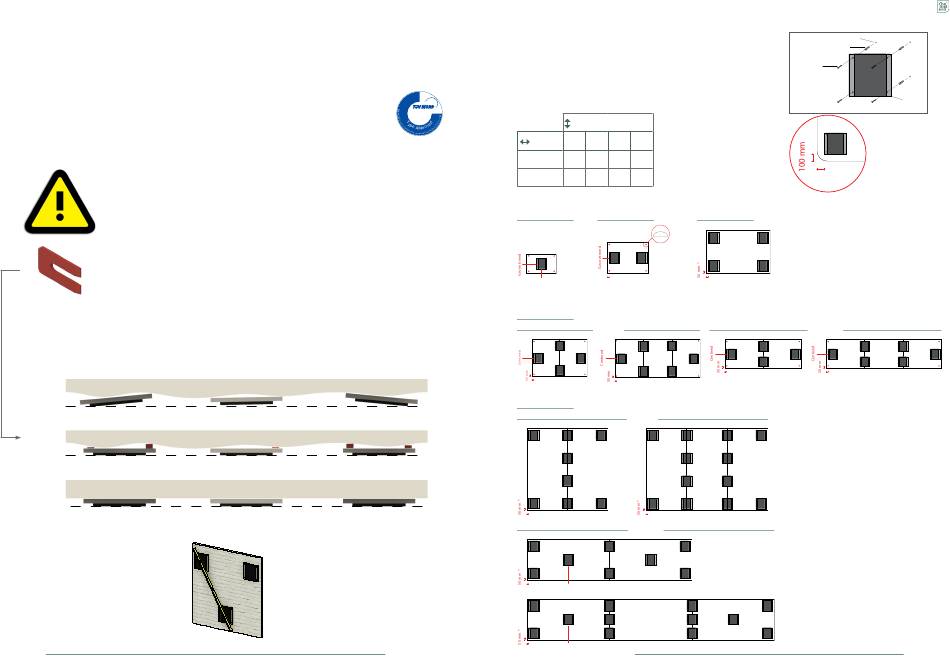

• With bumpy walls use spacers (available in most D.I.Y. shops) to put the magnets in the same plane.
See image 1.
• Check flatness between plates by using a level. Adjust with spacers and repeat check until all
surface are in the same plane. See image 2.
•
Tip: the use of glass vacuum lifters makes assembly much easier. These are available at Chameleon
Spacer (article number 51508.010) or at a hardware store.
• Note: do not place more than 1 kg. of accessories per m2 of whiteboard. This is to prevent the
whiteboard from shifting.
- Top view -
X
✓
✓
4
Image 1
Image 2
Placement magnetic plates
Fix the magnetic plates (300x300 mm) to the wall as indicated in the drawings.
Tip: previous to mounting, mark the sides of the panels on the wall with a pencil to
make the placement of the plates easier.
Amount of magnetic plates
TÜV Nederland QA
(cm)
(cm) ≤ 88 ≤ 118
≤ 98 1 (4) 2
≤ 118 2 (4) 2
Single boards
1 magnetic plate
Gecentreerd
Walls
2 magnetic plates per board
50 mm
4 magnetic plates per board
50 mm *
50 mm * Centered
50 mm * Centered
Mounting guide
and buffers per board.
≤ 158 > 158
(4) 2 (4) 4
(4) 4 4
2 magnetic plates 4 magnetic plates
50 mm 50 mm *
Vertical
50 mm
50 mm
Vertical
50 mm *
Horizontal
4x Ø 6mm
4x dowel 6mm
4x screw 4x40
Magnetic plate
300x300mm
100 mm
* In case of rounded corners: 100 mm.
Horizontal
50 mm
* In case of rounded corners: 100 mm.
5
