Outdoorchef ASCONA 570G Montageanleitung

141009_assembly_ASCONA 570G_2015_hscma.pdf 1 09.10.14 09:14
ASCONA 570 G
Spare Parts
Pos. Art. Nr. Description
1 18.350.91 Lid black 570 LH
1 18.350.93 Lid dark grey 570 LH
2 18.323.55 Lid handle pearl titan
2 18.323.76 Lid handle black
3 18.822.50 Logo
4 18.323.69 Lid hinge complete
5 18.360.63 Upper lid hinge cover
6 18.360.64 Lower lid hinge cover
7 18.850.23 Heat indicator °C/°F
8 18.850.22 Heat indicator-nut
9 18.320.00 Cooking grid
10 18.320.02 Large Funnel
1 1 18.320.03 Small Funnel
12 18.350.90 Bowl LH DB Pt black
12 18.350.92 Bowl LH DB Pt dark grey
13 18.360.65 Control knob large burner
14 18.360.60 Frame for control knob large burner
15 18.360.66 Control knob small burner
16 18.360.61 Frame for control knob small burner
17 18.323.70 Control panel ASCONA pearl titan
17 18.323.71 Control panel ASCONA black
18 18.340.77 Valve assembly direct DB 30mbar
18 18.340.78 Valve assembly direct DB 50mbar
19 18.340.58 Venturiprotection DB small
20 18.340.57 Venturiprotection DB & SB
21 18.340.87 Pulse ignitor DB
22 18.340.91 Ignition wire distributor
23 18.340.02 Burner small 30mbar
23 18.340.45 Burner small 50mbar
24 18.340.00 Burner large 30mbar
24 18.340.44 Burner large 50mbar
25 18.340.12 Ignition wire burner
26 18.340.1 1 Piezo electrode large burner
27 18.340.10 Piezo electrode small burner
28 18.323.04 Drip pan
29 18.323.05 Drip pan carrier
30 18.323.59 X-Module pearl titan
30 18.323.72 X-Module black
31 18.323.60 Stand-Module pearl titan
31 18.323.73 Stand-Module black
32 18.323.62 Wheel-Module left pearl titan
32 18.323.77 Wheel-Module left black
33 18.323.63 Wheel-Module right pearl titan
33 18.323.80 Wheel-Module right black
34 18.323.78 Table-Module pearl titan
34 18.323.79 Table-Module black
35 18.323.74 Connection-Module pearl titan
35 18.323.75 Connection-Module black
36 18.323.64 Axle pearl titan
36 18.323.81 Axle black
37 18.323.65 Bottle fixation bar pearl titan
37 18.323.82 Bottle fixation bar black
38 18.360.1 1 Bottle fixation strap
39 18.310.27 Bottom shelf black wood
40 18.310.33 Front table black
41 18.360.56 Wheel
42 18.360.57 Wheel cover
43 18.360.59 Thread insert grey
43 18.360.58 Thread insert black
44 18.360.37 Height adjustement
45 18.323.83 Tool holder pearl titan
45 18.323.84 Tool holder black
46 18.370.75 Gas hose Hook
47 18.360.62 Protection pin
18.379.20 Hardware Set
48 individual Gas hose
49 individual Gas regulator
www.outdoorchef.com
Ersatzteil-Liste
Beschreibung
Deckel schwarz 570 LH
Deckel dunkelgrau 570 LH
Deckelgriff perl titan
Deckelgriff schwarz
Logo
Deckelscharnier komplett
Deckelscharnier-Abdeckung oben
Deckelscharnier-Abdeckung unten
Temperatur Anzeige °C/°F
Temperaturanzeiger-Befestigungsmutter
Grillrost
Grosser Trichter
Kleiner Trichter
Kugel LH DB Pt schwarz
Kugel LH DB Pt dunkelgrau
Gasregulier-Knopf grosser Brenner
Rahmen zu Gasregulier-Knopf grosser Brenner
Gasregulier-Knopf kleiner Brenner
Rahmen zu Gasregulier-Knopf kleiner Brenner
Bedienungskonsole ASCONA perl titan
Bedienungskonsole ASCONA schwarz
Ventilsatz direkt DB 30mbar
Ventilsatz direkt DB 50mbar
Venturischutz DB klein
Venturischutz DB & SB
Elektro-Zündung DB
Zündungskabel Verteiler
Brenner klein 30mbar
Brenner klein 50mbar
Grosser Brenner 30mbar
Grosser Brenner 50mbar
Zündungskabel Brenner
Piezo-Elektrode grosser Brenner
Piezo-Elektrode kleiner Brenner
Fettauffangschale
Fettauffangschale Halterung
X-Modul perl titan
X-Modul black
Stand-Modul perl titan
Stand-Modul schwarz
Rad-Modul links perl titan
Rad-Modul links schwarz
Rad-Modul rechts perl titan
Rad-Modul rechts schwarz
Tablar-Modul perl titan
Tablar-Modul schwarz
Verbindungs-Modul perl titan
Verbindungs-Modul schwarz
Radachse perl titan
Radachse schwarz
Flaschenhalterungsstrebe perl titan
Flaschenhalterungsstrebe schwarz
Flaschenhalterungs-Gurt
Bodenrost Holz schwarz
Fronttablar schwarz
Rad
Radabdeckung
Gewindeeinsatz grau
Gewindeeinsatz schwarz
Höhenverstellung
Besteck-Halter perl titan
Besteck-Halter schwarz
Gasschlauch-Haken
Schutzstift
Schrauben Set
Gasschlauch
Gasdruckregler
DKB Household Switzerland AG operates a policy of
continuous product development and improvement.
As such we reserve the right to alter product design and
or technical specification without giving any prior notice.
8
ASCONA 570 G/09.OKTOBER.2014

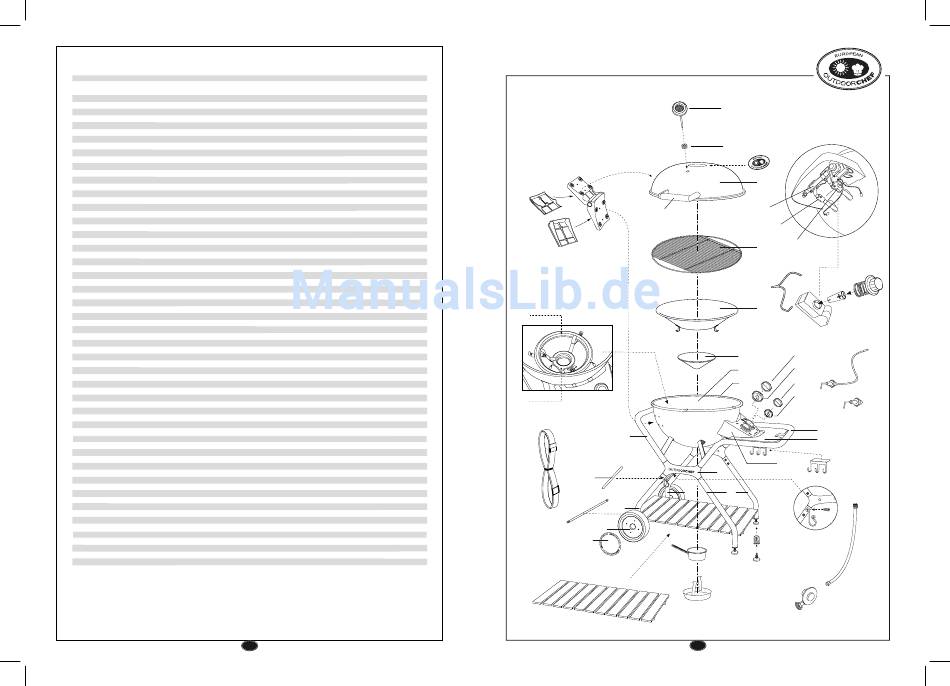

ASCONA 570 G
4
5
2
6
24
23
35
38
37
36
32
41
42
39
7
8
3
1
18
19
20
9
21
22
10
1 1
13
25
14
12
47
15
27
16
26
34
40
17
45
30
33 31
46
43
44
28
48
49
29
1
