com.tom BASIC 2.0 – Start-up Guide
The com.tom BASIC device communicate with
the web portal via Ethernet and the existing
network infrastructure. The
mechanism has a low data volume and can be
integrated easily in the existing network infra-
structure.
Device may only be put into service and
operated by qualified personnel.

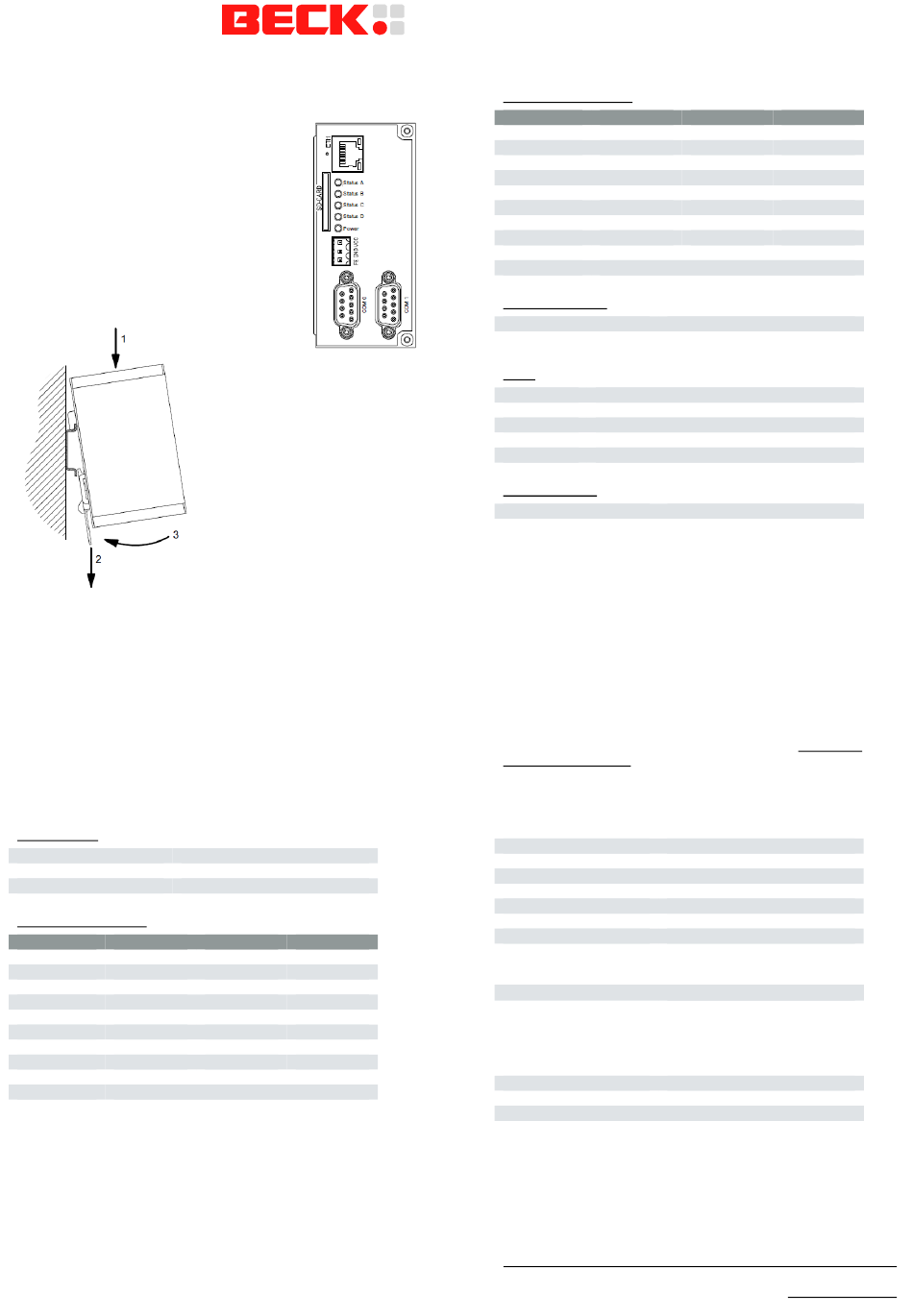

The device is designed for an installation on a
grounded 35 mm DIN Rail in dry rooms.
After the installation the housing of the device is connected with
functional earth.
The power supply must be a grounded circuit (PELV).
The power supply must be a limited power source according to
EN60950-1 cap. 2.5 or the device must be provided with an anti-
surge fuse of 2 A.
Pin Assignment
Power Supply
FE Functional earth
GND Ground
VCC 24 VDC
Serial Interface COM0
RS232
Pin 1 NC
Pin 2 RxD
Pin 3 TxD
Pin 4 NC
Pin 5 GND
Pin 6 NC
Pin 7 RTS
Pin 8 CTS
Pin 9 NC
Housing Connected to functional earth
communication
RS485 RS422
A(-/Y) A(TxD)
NC NC
NC NC
NC A'(RxD)
GND GND
B(+/Z) B(TxD)
NC NC
NC NC
NC B'(RxD)
Serial Interface COM1
RS232
Pin 1 NC
Pin 2 RxD
Pin 3 TxD
Pin 4 NC
Pin 5 GND
Pin 6 NC
Pin 7 RTS
Pin 8 CTS
Pin 9 NC
Housing Connected to functional earth
Ethernet Interface
Green LED Link indication
Yellow LED Activity indication
LEDs
Status A Freely programmable
Status B Freely programmable
Status C Freely programmable
Status D Freely programmable
Power Device is powered
Other Interfaces
SD card interface MMC/SD memory cards
SIM card interface no function
Getting Started
Wire the com.tom device according to the technical data.
Get the Getting Started documentation at www.beck-
ipc.com/gettingstarted and follow the steps described there to
put your com.tom device into operation.
General Data
Size (W x L x H) 46 x 103 x 63 mm
Operating temperature 0 to 55 °C
Electrical shock Class III
Protection rating IP20
EMC emission IEC 61000-6-4
EMC immunity IEC 61000-6-2
Compliance CE, RoHS
Electrical Data
Supply voltage
24 VDC (15 %)
Active current < 80 mA
Scope of supply
1 Piece com.tom BASIC 2.0
1 Piece Start-up guide
1 Piece Connector 3-pin
