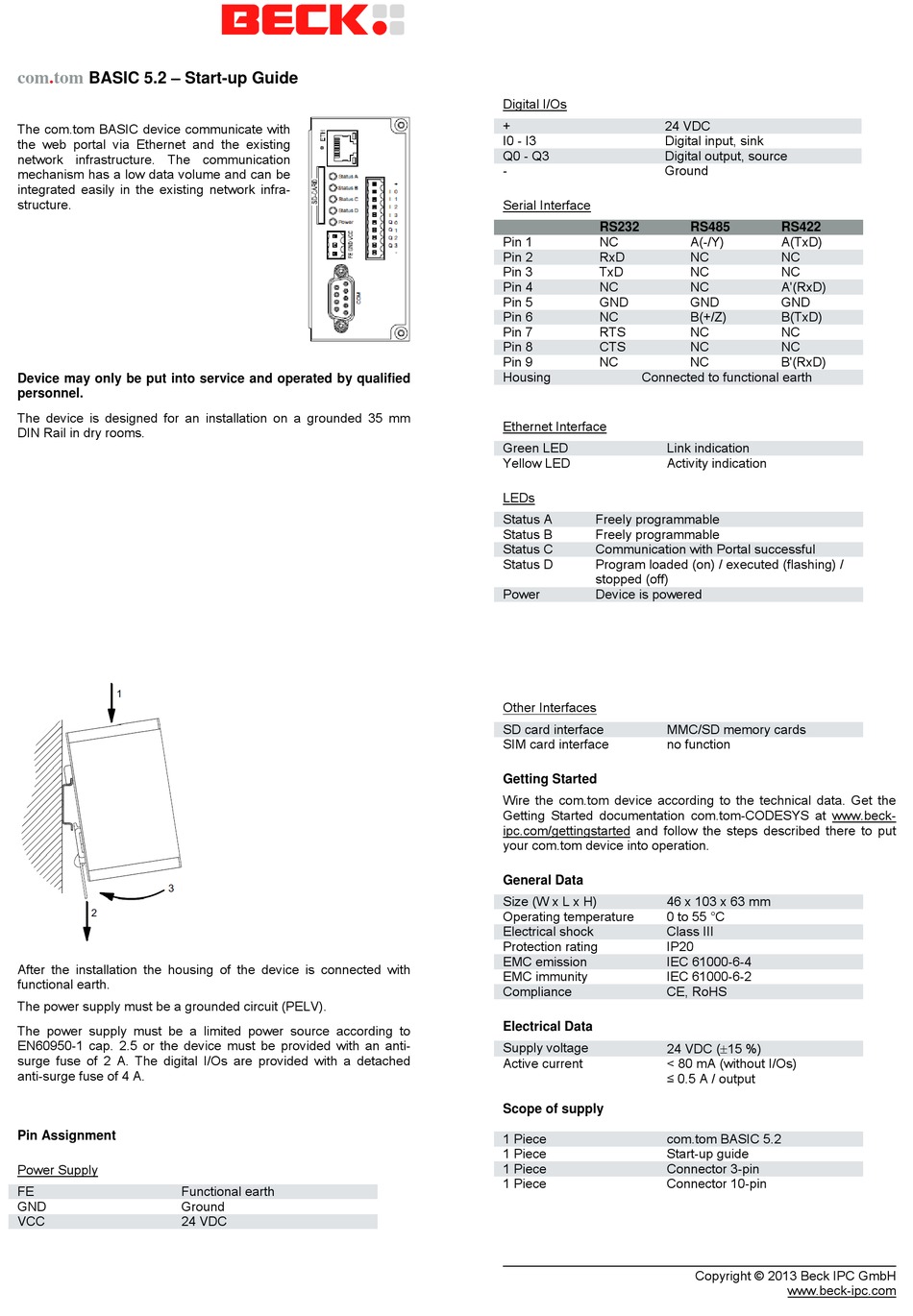

Beck com.tom BASIC 5.2 Inbetriebnahmeanleitung

com.tom BASIC 5.2 – Start-up Guide
The com.tom BASIC device communicate with
the web portal via Ethernet and the existing
network infrastructure. The communication
mechanism has a low data volume and can be
integrated easily in the existing network infra-
structure.
Device may only be put into service and operated by qualified
personnel.
The device is designed for an installation on a grounded 35 mm
DIN Rail in dry rooms.
After the installation the housing of the device is connected with
functional earth.
The power supply must be a grounded circuit (PELV).
The power supply must be a limited power source according to
EN60950-1 cap. 2.5 or the device must be provided with an anti-
surge fuse of 2 A. The digital I/Os are provided with a detached
anti-surge fuse of 4 A.
Pin Assignment
Power Supply
FE Functional earth
GND Ground
VCC 24 VDC
Digital I/Os
+ 24 VDC
I0 - I3 Digital input, sink
Q0 - Q3 Digital output, source
- Ground
Serial Interface
RS232
Pin 1 NC
Pin 2 RxD
Pin 3 TxD
Pin 4 NC
Pin 5 GND
Pin 6 NC
Pin 7 RTS
Pin 8 CTS
Pin 9 NC
Housing Connected to functional earth
Ethernet Interface
Green LED Link indication
Yellow LED Activity indication
LEDs
Status A Freely programmable
Status B Freely programmable
Status C Communication with Portal successful
Status D Program loaded (on) / executed (flashing) /
stopped (off)
Power Device is powered
Other Interfaces
SD card interface MMC/SD memory cards
SIM card interface no function
Getting Started
Wire the com.tom device according to the technical data. Get the
Getting Started documentation com.tom-CODESYS at www.beck-
ipc.com/gettingstarted and follow the steps described there to put
your com.tom device into operation.
General Data
Size (W x L x H) 46 x 103 x 63 mm
Operating temperature 0 to 55 °C
Electrical shock Class III
Protection rating IP20
EMC emission IEC 61000-6-4
EMC immunity IEC 61000-6-2
Compliance CE, RoHS
Electrical Data
Supply voltage
24 VDC (15 %)
Active current < 80 mA (without I/Os)
≤ 0.5 A / output
Scope of supply
1 Piece com.tom BASIC 5.2
1 Piece Start-up guide
1 Piece Connector 3-pin
1 Piece Connector 10-pin
RS485 RS422
A(-/Y) A(TxD)
NC NC
NC NC
NC A'(RxD)
GND GND
B(+/Z) B(TxD)
NC NC
NC NC
NC B'(RxD)
Copyright © 2013 Beck IPC GmbH
www.beck-ipc.com
