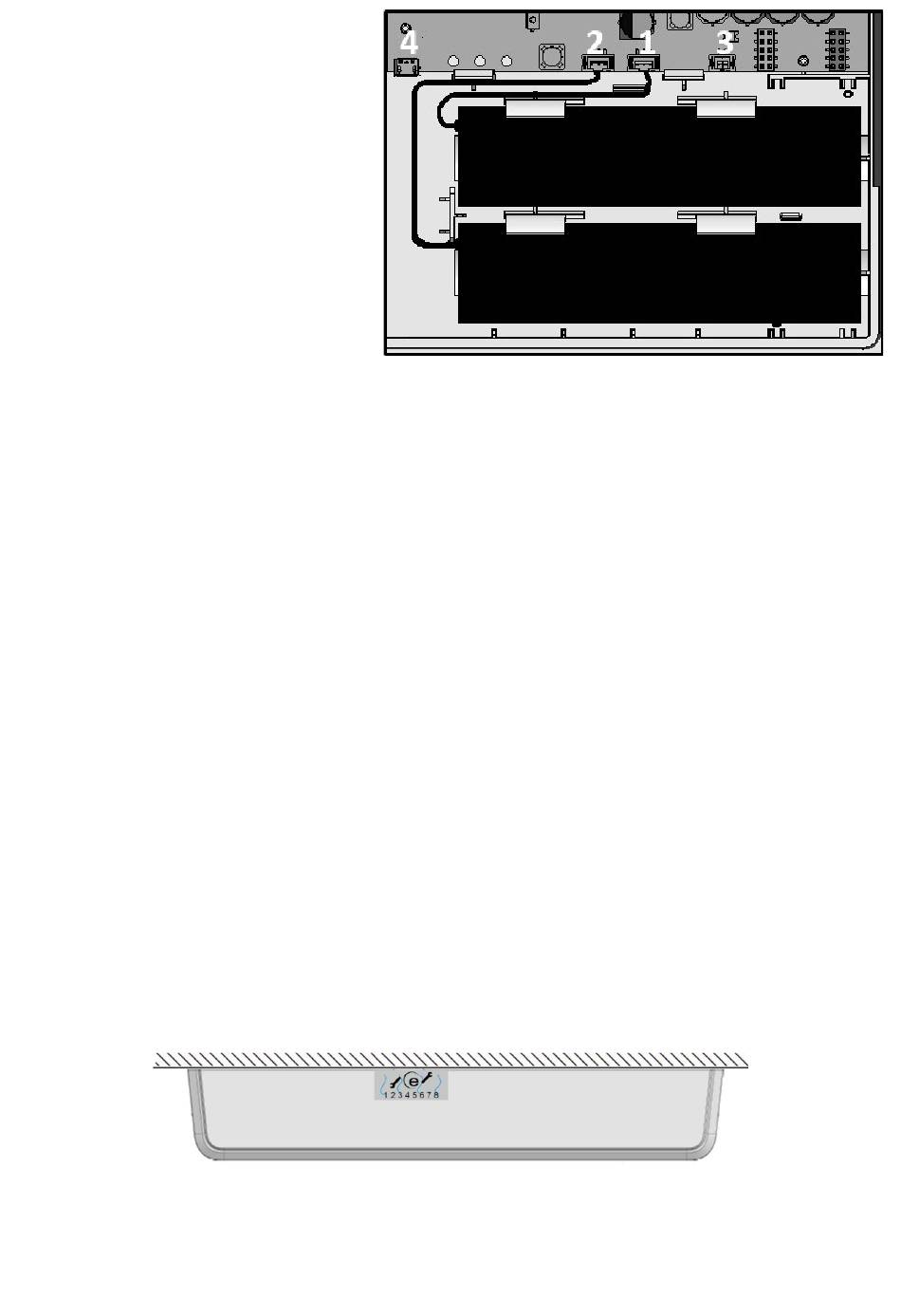

5 Connectors on the Circuit Board
1 Connector battery 1
2 Connector battery 2
3 Connector power pack
4 Micro-B USB connector
Battery 1
Battery 2
Gateway
6 Mounting the

6.1 Installation site

- An interference-free data connection and unimpaired radio reception are mandatory.
- The wall should be flat and smooth, and suitable for drilling holes.
- Before drilling, please ensure that no electrical wires, supply lines or pipes inside of the wall will be hit.
- The Gateway has to be mounted with at least two opposite screws.
- To prevent overheating direct sunlight must be avoided.
6.2 Mounting tools
- Concrete drill (6) mounted in a (hammer) driller.
- Screwdriver (TX25) or cordless electric screwdriver with 5 cm extension and TX25 bit.
6.3 Mounting part 1: case (bottom)
- Remove the cover (unlock the black clamps by pressing them a bit into the housing).
- Mark the position of the mounting holes on the wall and drill them.
- Mount the case on the wall using the enclosed screws and dowels.
7 Commissioning
- Plug the batteries plug into the corresponding connectors (see Fig. 1).
The green status LED will now flash every 30 seconds.
- Connect your laptop using a USB cord (Micro-B plug to A plug) with the Gateway.
The green status LED will begin to flash every second.
- Configure the Gateway with the Engelmann software „Device Monitor".
- Disconnect the USB cord from the Gateway. The green status LED will once again flash every 30 seconds.
8 Mounting Part 2: Case (Cover)
- Press the cover onto the bottom case until the black clamps snap in.
- Mount the numbered adhesive seal enclosed on the appropriate place. The added bar code label can be
used for the purpose of documentation.
Seite 14 von 24 Artikel Nr.: 9080000003
Page 14 of 24 Article no.: 9080000003
Battery 1
Battery 2
Stand: 2022_07_29
Date: 2022_07_29
Fig. 1 Gateway inside bottom right view
Fig. 2 Top view
