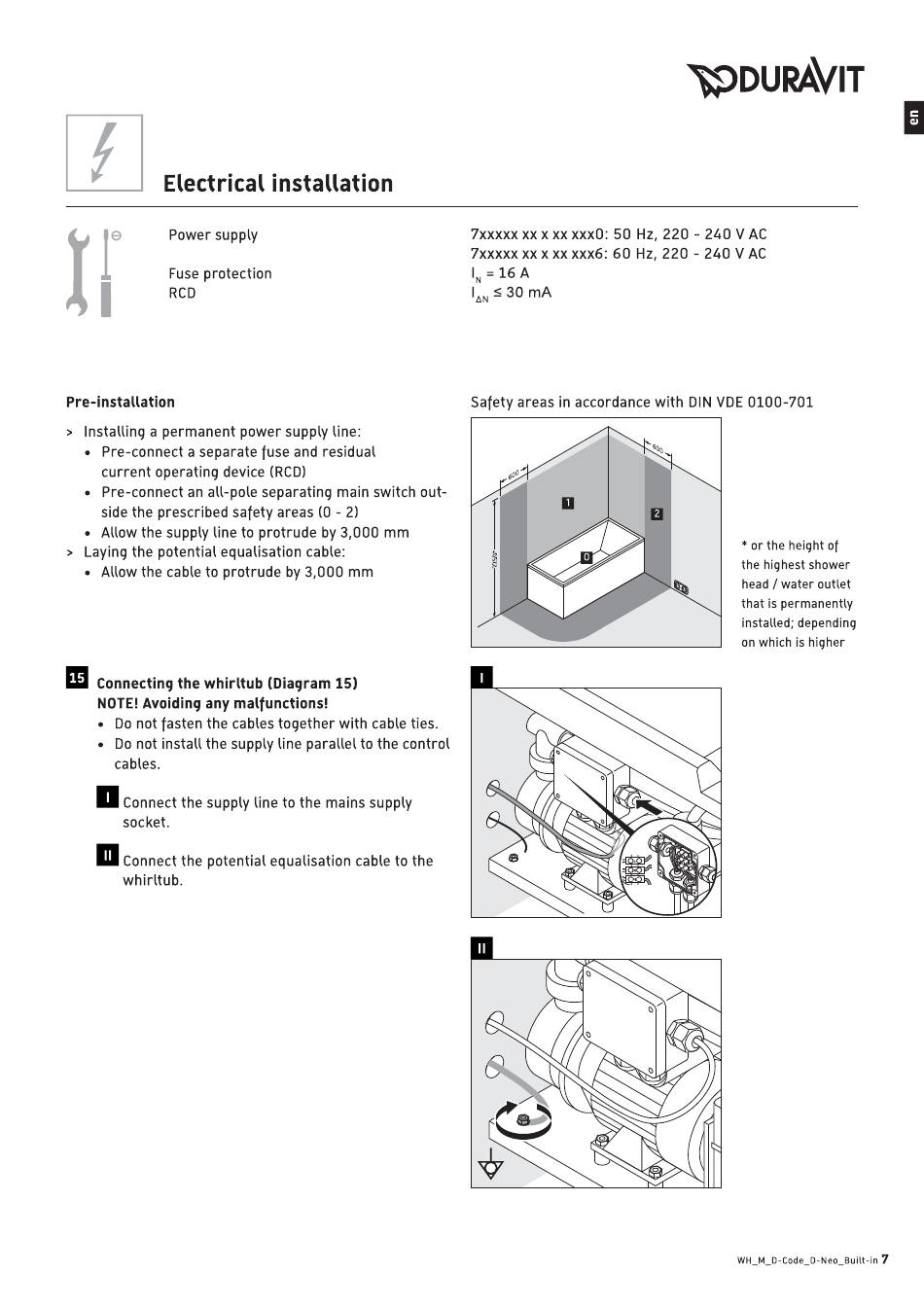

Electrical
Power supply
Fuse protection
RCD
Pre-instauation
> Installing a permanent power supply line:
• Pre-connect a separate fuse and residual
current operating device (RCD)
• Pre-connect an all-pole separating main switch out-
side the prescribed safety areas (0 - 2)
• Allow the supply line to protrude by 3,000 mm
> Laying the potential equalisation cable:
• Allow the cable to protrude by 3,000 mm
15
Connecting the whirltub (Diagram 15)
NOTE! Avoiding any malfunctions!
• Do not fasten the cables together with cable ties.
• Do not install the supply line parallel to the control
cables.
Connect the supply line to the mains supply
socket.
Connect the potential equalisation cable to the
whirltub.
installation
7xxxxx xx x xx xxxO: 50 Hz, 220
xx x xx xxx6: 60 Hz, 220
16 A
30 mA
Safety areas in accordance with DIN VDE 0100-701
e
- 240 V AC
- 240 V AC
* or the height of
the highest shower
head / water outlet
that is permanently
installed; depending
on which is higher
