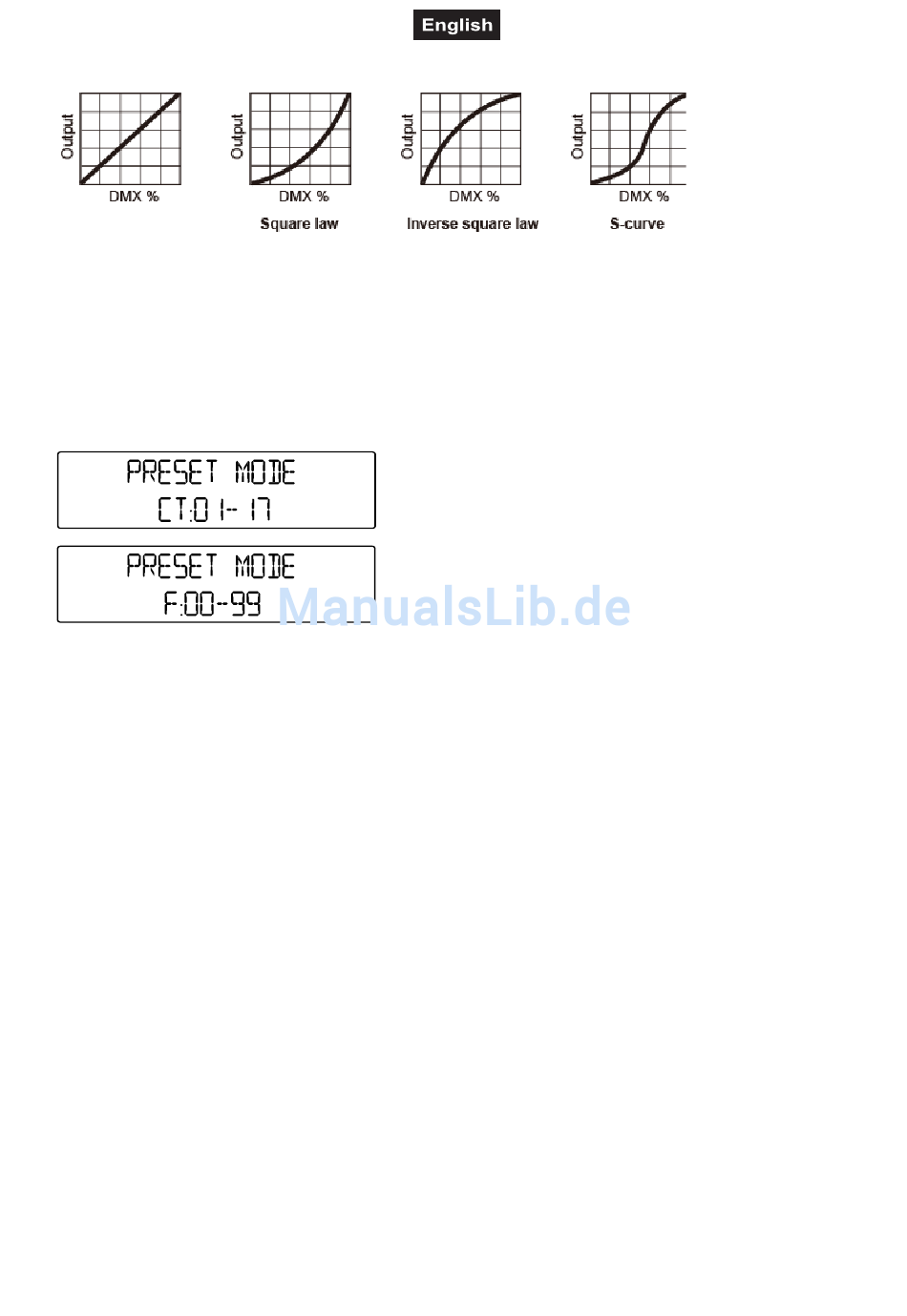

Dimming Curves options:
Linear
LINEAR: the increase in light intensity appear to be linear as DMX value is increased.
SQUARE LAW: light intensity control is finer at low levels and coarser at high levels
INVERSE SQUARE LAW: light intensity control is coarser at low levels and finer at high levels
S-CURVE: light intensity control is fine at low levels and high levels and coarser at medium levels.
The dimmer curves described above are available in two different versions – with the response
characteristics of halogen lamps (dimmer curve 01 – 04) and response characteristics of LEDs (dimmer
curve 05 – 08).
Preset Mode:
Strobe (flash) from 01 to 99, increasing speed.
Please press the ENTER button to confirm.

Master/Slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one master-
device.
On the rear of the LED ML-56 COB CW/WW 100W 60° you can find an XLR-jack (DMX Out) and an XLR-
plug (DMX In), which can be used for connecting several devices.
Choose the device which is to control the effects. Set the desired Master-mode on the master-device. This
device then works as master-device and controls all other slave-devices, which are to be connected to the
master-device via a balanced microphone lead. Connect the DMX out connectors with the DMX input plug of
the next device.
Set the Slave-mode on every slave-device.

DMX-controlled operation

The device has 3 DMX channel modes. The Control Board allows you, as described above, to assign the
DMX-Mode.
You can control the devices individually via your DMX-controller. Every DMX-channel has a different
occupation with different features.
The Control Board allows you to assign the DMX fixture address, which is defined as the first channel from
which the LED ML-56 COB CW/WW 100W 60° will respond to the controller.
Press the MODE button to select the PRESET mode. Press
the ENTER button. Select the desired presets color
temperatures (CT:1 – CT:17) via the UP or DOWN button.
Press the ENTER button to select strobe speed, respectively.
You can select the desired values via the UP or DOWN
buttons.
CT from 01 to 17, from warm white to cold white.
