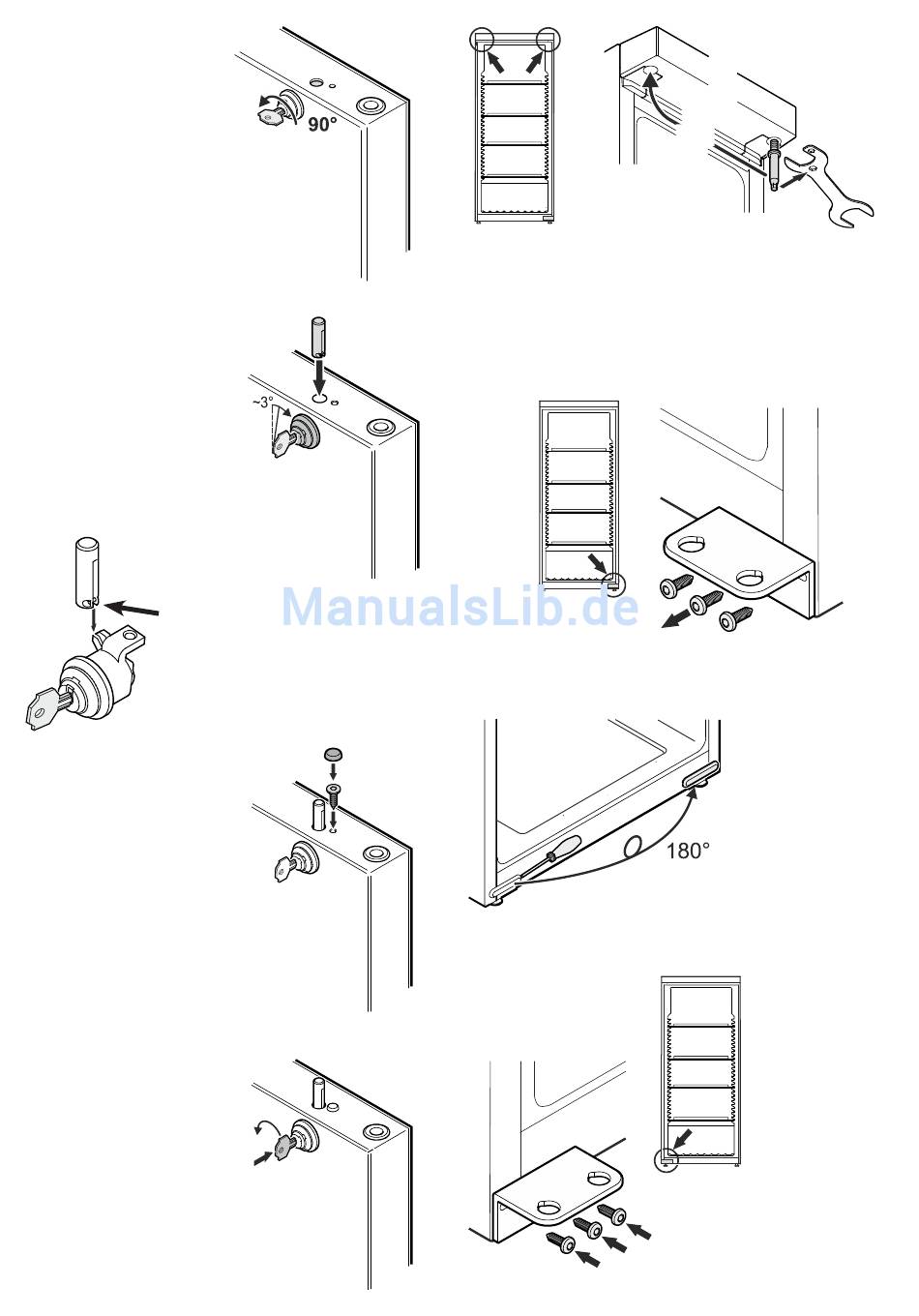

16. Turn back the lock 90°
anticlockwise.
17. Turn the lock further -
approx. 3° clockwise.
18. Insert pin.
Note on point 18
After insertion, the pin's cross pin must
be engaged in the groove of the catch.
19. Screw in the screw and attach
the cover cap.
20. Insert the key.
Turn the key 90°.
16
16
18
17
19
20
21. Unscrew the pin.
Use the spanner provided.
22. Screw in the pin on the opposite side.
23. Unscrew hinge bracket.
24. Remote the cover, turn it through 180°
and re-fit it on the opposite side.
25
EX 160 / EX 220 / EX 300 / EX 490_1 03/2014
22
21
23
24
25. Screw hinge bracket into place.
