RG-F251G
RG-F252E
LW;
Frequency range:
MW; 526.5 kHz to 1606.5
kHz
FM; 87.6 MHz to 108 MHz
12 volt (for negative earth car
Power source:
only)
MAX;
Output power:
RMS; 5 W x 2 (DIN 45 324)
(RG-F251G)
MAX;
Output power:
RMS; 5 W x 2 (10 % dis-
(RG-F252E)
tortion)
4 ohms
Output impedance:
Width;
Dimensions:
Height; 52 mm
Depth;
1.1 kg
Weight:
Specifications for this modelare subject to change without
prior notice.
Tuning Control
I.
Power Switch/Volume Control/Balance
2.
3. Tone Button
FM Mono-Stereo Selector
4.
Radio Band Selector
5.
6. Tape Eject/Fast Forward Button
7. FM Stereo Indicator

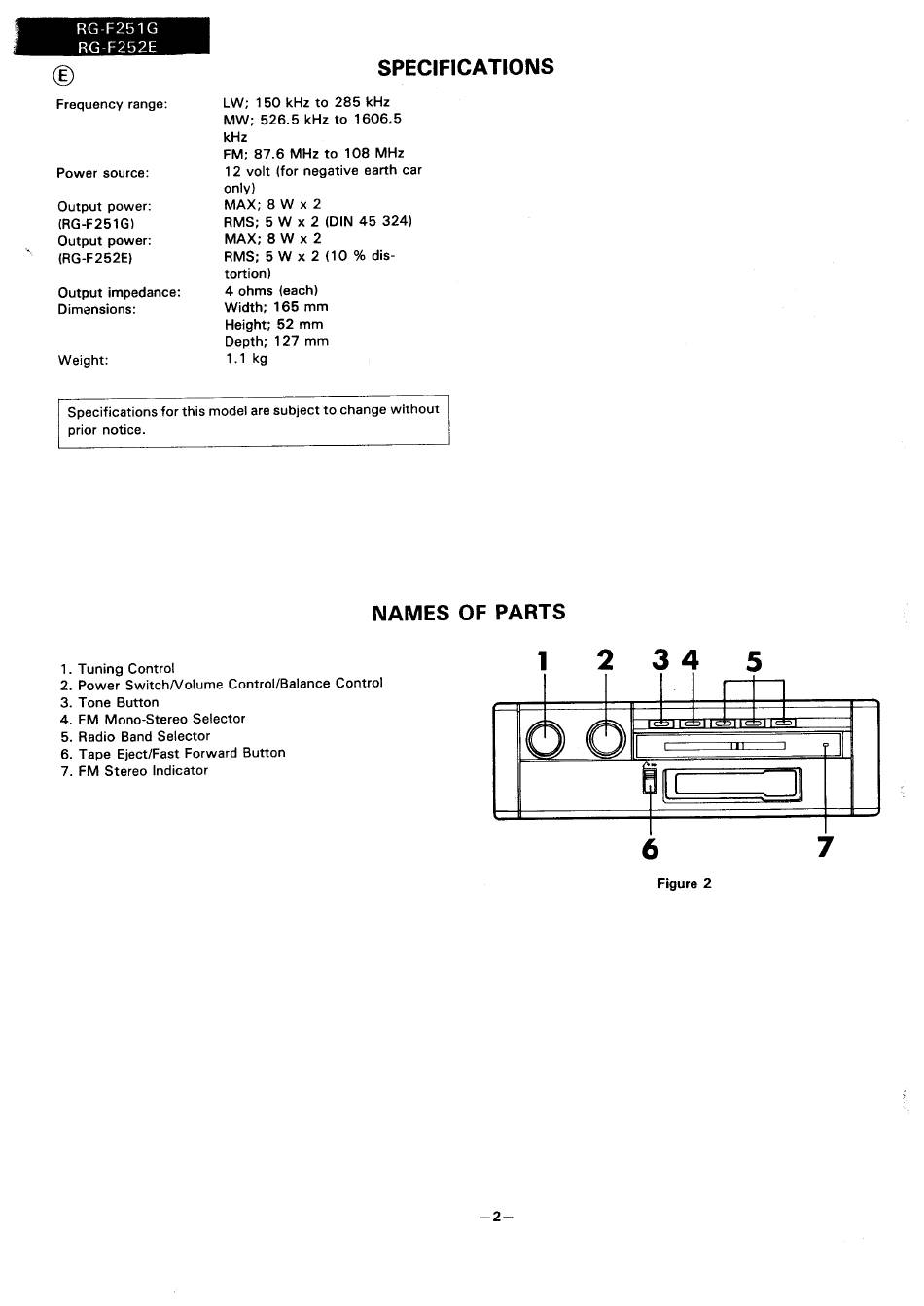

SPECIFICATIONS
150 kHz to 285 kHz
8 W x 2
8 W x 2
(each)
165 mm
127 mm
NAMES
Control
OF PARTS
2
1
—2—
34 5
6
Figure 2
7
