04 ESTIMATED POWER CONSUMPTION DISPLAY
Downloaded from www.Manualslib.com

OPERATION

1.

DIAGRAM

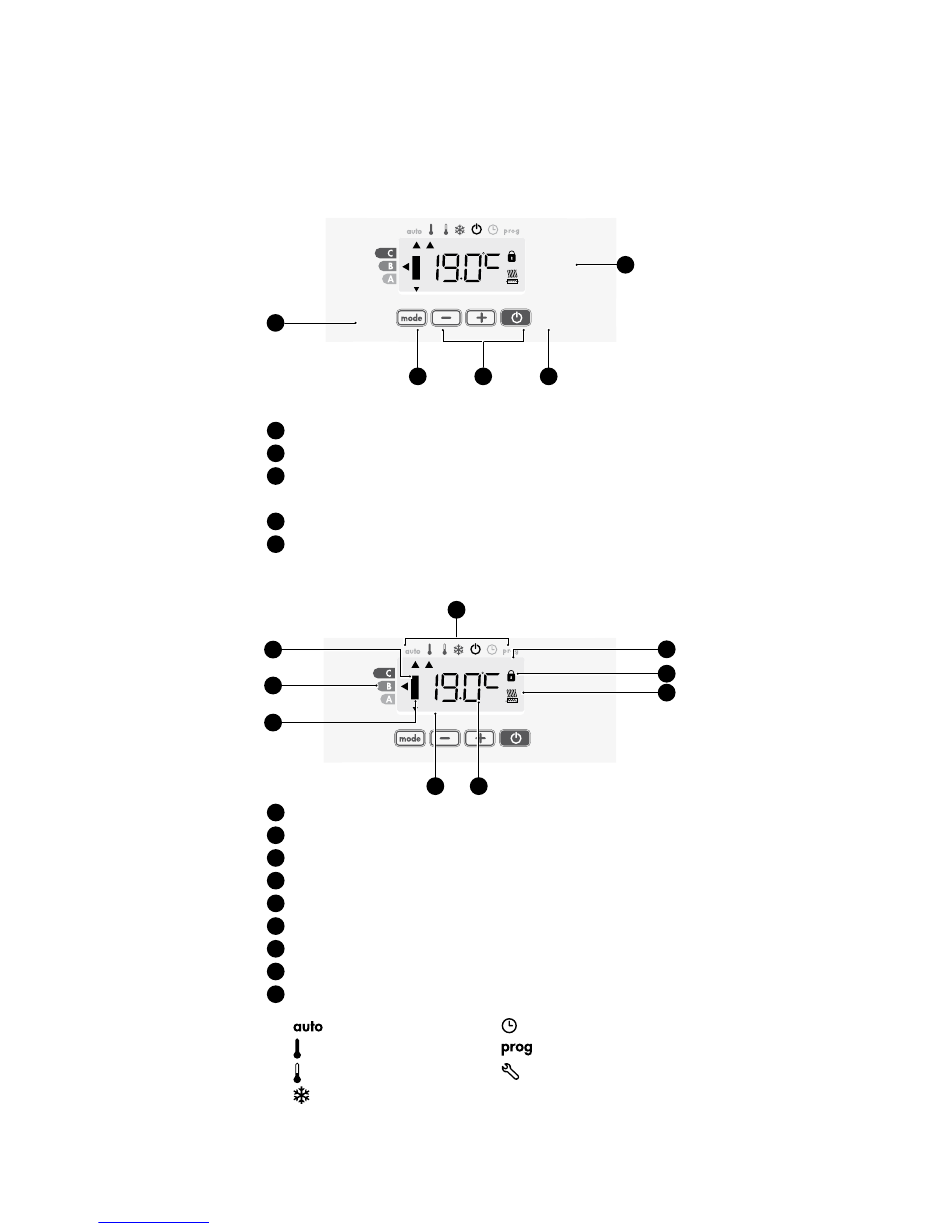

• Buttons overview
1
1
Button power on/standby mode
2
Selecting operating modes
3
Plus and minus buttons, used to set temperatures, time, date
and 2 programmes
4
Save settings
5
Boost
• Indicators overview
1
2
3
1
Boost indicator light
2
Gauge consumption
3
Heating indicator
4
Days of the week (1=Monday ... 7= Sunday)
5
Setting temperature
6
Open window detection indicator
7
Keypad locked
8
Radio transmission indicator
9
Operation modes:
Auto mode
Comfort mode
Eco mode
Frost protection
mode
