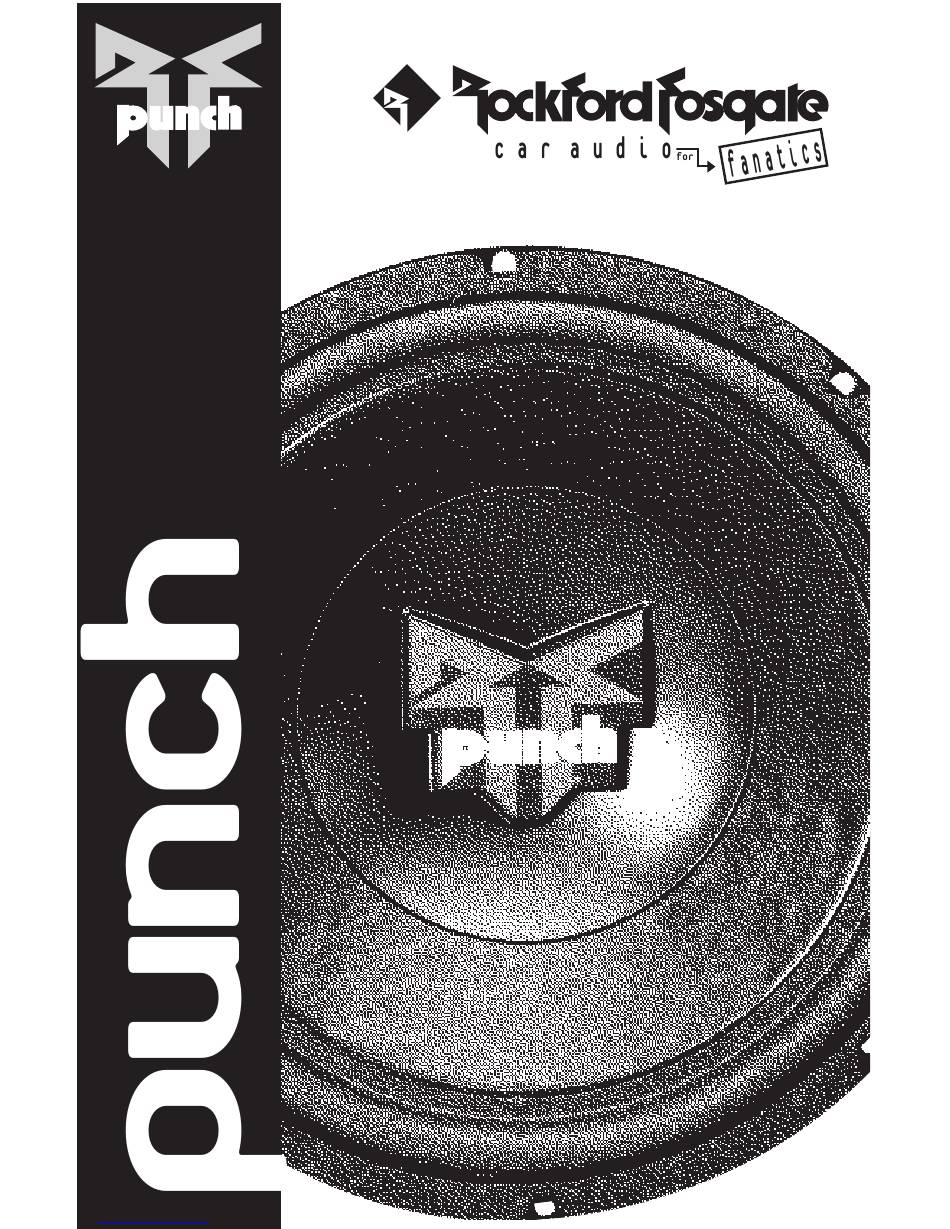

- Seite 1 ® ® ® RFP-1408/1808 RFP-1410/1810 RFP-1412/1812 RFP-1415/1815 RFP-1418/1815 Downloaded from www.Manualslib.com manuals search engine...
-
Seite 2: Practice Safe Sound
To add the finishing touch to your new Rockford Fosgate image order your Rockford wearables, which include everything from T-shirts and jackets to hats and sunglasses. To get a free brochure on Rockford Fosgate products and Rockford wearables, in the U.S. call 602-967-3565 or FAX 602-967-8132. For all other countries, call +001-602- 967-3565 or FAX +001-602-967-8132. -
Seite 3: Inhaltsverzeichnis
Installation Section of this manual or refer to the icon listed below. Other information can be located by using the Table of Contents. We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice. -
Seite 4: Introduction
N TR O DU CT ION The RF Punch Woofers are a full line of low frequency drivers sized from 8" to 18" and are available in 4 or 8 ohm impedance. The RF Punch woofers were designed for use primarily in small, sealed enclosures. -
Seite 5: Aluminum Voice Coil Former
Aluminum Voice Coil Former The voice coil former is black, anodized aluminum for highly efficient thermal transfer. This allows winding high temperature copper wire in multiple layers for improved efficiency. THE RESULT: Improves power handling by efficiently dissipating heat Four-Layer Voice Coil Multiple layers of high temperature copper wire are wound on the Aluminum Voice Coil for efficient thermal transfer. -
Seite 6: Installation
® ® NSTALLATION Recommended Enclosures Punch 8" Recommended Sealed .30ft (8.50L) W = 11" D = 8" (27.94cm) (20.32cm) Punch 10" Recommended Sealed .75ft (21.24L) W = 15" D = 10" (38.10cm) (25.40cm) Punch 12" Recommended Sealed 1.25ft (35.40L) W = 19-3/4" D = 12"... -
Seite 7: Building An Enclosure
® ® Punch 18" Recommended Sealed 4.0ft (113.27L) W = 32-1/2" D = 14" (82.55cm) (35.56cm) Building an Enclosure To work properly, the walls of the enclosure must be rigid and not flex when subjected to the high pressures generated by the speaker's operation. -
Seite 8: Wiring Configurations
® ® Wiring Configurations Three configurations for connecting speakers to an amplifier are Series, Parallel, and Series-Parallel wiring. A Series con- figuration consists of two or more speakers wired in an string (end to end). A Parallel configuration consists of two or more speakers wired with the common terminals connected across each other. -
Seite 9: Specifications
® ® – 6 – Downloaded from www.Manualslib.com manuals search engine... -
Seite 10: Warranty Information
• Who is Covered This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. -
Seite 11: International Information
– 8 – Downloaded from www.Manualslib.com manuals search engine... - Seite 12 LEA DETENIDAMENTE LAS SIGUIENTES INSTRUCCIONES DE INSTALACÍON DEL PRODUCTO. NTRODUCCÍON Los woofers RF son una gama completa de drivers de baja frecuéncia que comprenden diámetros de 8" a 15". Los Woofers RF fueron diseñados para su utilización en caja cerrada o bass-reflex mediana. Diseñada para ofrecer la máxima calidad, los Woofers RF ofrecen al entusiasta principiante en sistemas de car audio, la oportunidad para disfrutar de un bajo sólido en las bajas frecuéncias.
- Seite 13 ALCULO OLUMEN Para calcular el volumen sólo se han de medir las dimensiones en centimetros y aplicar la fórmula: Volumen du Alto x Ancho x Profundidad la caja = 1000 (en litros) Si dos caras opuestas son de diferente tamaño, súmelas y divida el total por dos para obtener el promedio.
- Seite 14 VEUILLEZ LIRE LES INSTRUCTIONS SUIVANTES POUR L'INSTALLATION DE CE PRODUIT. N TR O D UCT ION Les woofers Punch sont une gamme complète de haut-parleurs de graves allant de 20 à 46 cm et disponibles en 4Ω ou 8Ω. Les woofer Punch ont été...
- Seite 15 ALCUL OLUME On calcule le volume en mesurant la dimension de chaque côté et en utilisant la formule suivante: Volume du Hauteur (cm) x Longueur (cm) x Largeur (cm) caisson = 1000 (Litres) Si les due côtés qui se font face n'ont pas la même longueur, additionnez les et divisez le résultat par deux pour obtenir la moyenne des deux longueurs.
-
Seite 16: Einleitung
BITTE LESEN SIE DIESE GEBRAUCHSANLEITUNG ZUERST SORGFÄLTIG DURCH. DAS KANN SIE VOR FALSCHEM EINSATZ, AUSFALLEN ODER SOGAR BESCHÄDIGUNG DES PRODUKTES ODER IHRES FAHRZEUGES SCHÜTZEN. INLEITUNG Die RF-Punch Woofer sind eine komplette Produktlinie von Tief- Frequenzlautsprechern mit Durchmesser von 20 cm bis zu 46 cm, erhältlich in der Impendanz 4 - und 8 Ohm (Die RF Punch Woofer wurden vorwiegend fur den Einsatz in geschlossenen Gehäuse konstruiert). -
Seite 17: Volumen -Berechnung
OLUMEN ERECHNUNG Zur Volumen-Berechung benötigen sie die genauen Maβe und Dimensionen in Zentimetern. Gehäuse- Höhe (cm) x Breite (cm) x Tiefe (cm) Volumen = 1000 (Kubik Liter) Sollten zwei gegenüberliegende Seiten ungleich lang sein, so können sie die Maβe zusammen rechnen und durch zwei dividieren um den Durchschnitt zu erhalten. - Seite 18 LEGGERE CON ATTENZIONE LE SEGUENTI ISTRUZIONI PRIMA DELL'INSTALLAZIONE DEL PRODOTTO. NTRODUZIONE I woofer Punch RF sono una linea completa di altoparlanti per basse frequenze con diametri che vanno da 20 a 46 cm e disponibili sia a 4 che a 8 ohm. (I woofer Punch RF sono progettati per il funzionamento principale in cassa chiusa.).
- Seite 19 ALCOLO DEL OLUME Calcolare il volume é essenzialmente solo un poroblema di misurazione delle dimensioni in centimetri della cassa e di applicazione della formula: Volume della Alteza x Larghezza x Profonditá cassa = 1000 (litri) Se due pareti parallele sono di dimensioni diverse (prisma), semplicemente sommatele e dividete il risulto per due.
- Seite 20 American companies. However, due to the global nature of their manufacturing facilities and the loudspeaker parts industry in general, some parts may be manufactured in other countries. Rockford Fosgate Rockford Corporation 546 South Rockford Drive Tempe, Arizona 85281 U.S.A.
