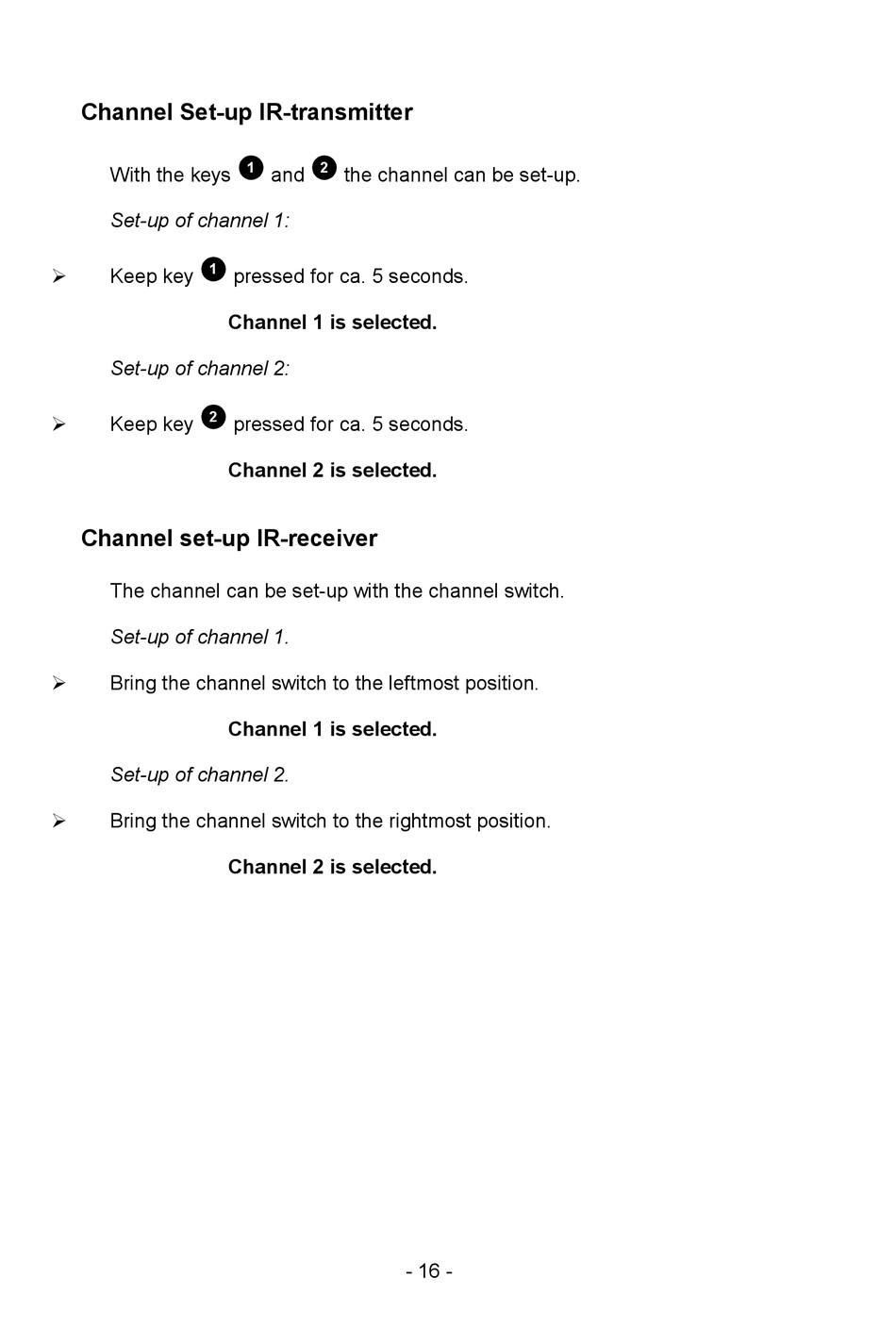

Channel Set-up IR-transmitter

With the keys
Set-up of channel 1:
1
Ø
Keep key
Set-up of channel 2:
2
Ø
Keep key

Channel set-up IR-receiver

The channel can be set-up with the channel switch.
Set-up of channel 1.
Ø
Bring the channel switch to the leftmost position.
Set-up of channel 2.
Ø
Bring the channel switch to the rightmost position.
1 2
and the channel can be set-up.
pressed for ca. 5 seconds.
Channel 1 is selected.
pressed for ca. 5 seconds.
Channel 2 is selected.
Channel 1 is selected.
Channel 2 is selected.
- 16 -
