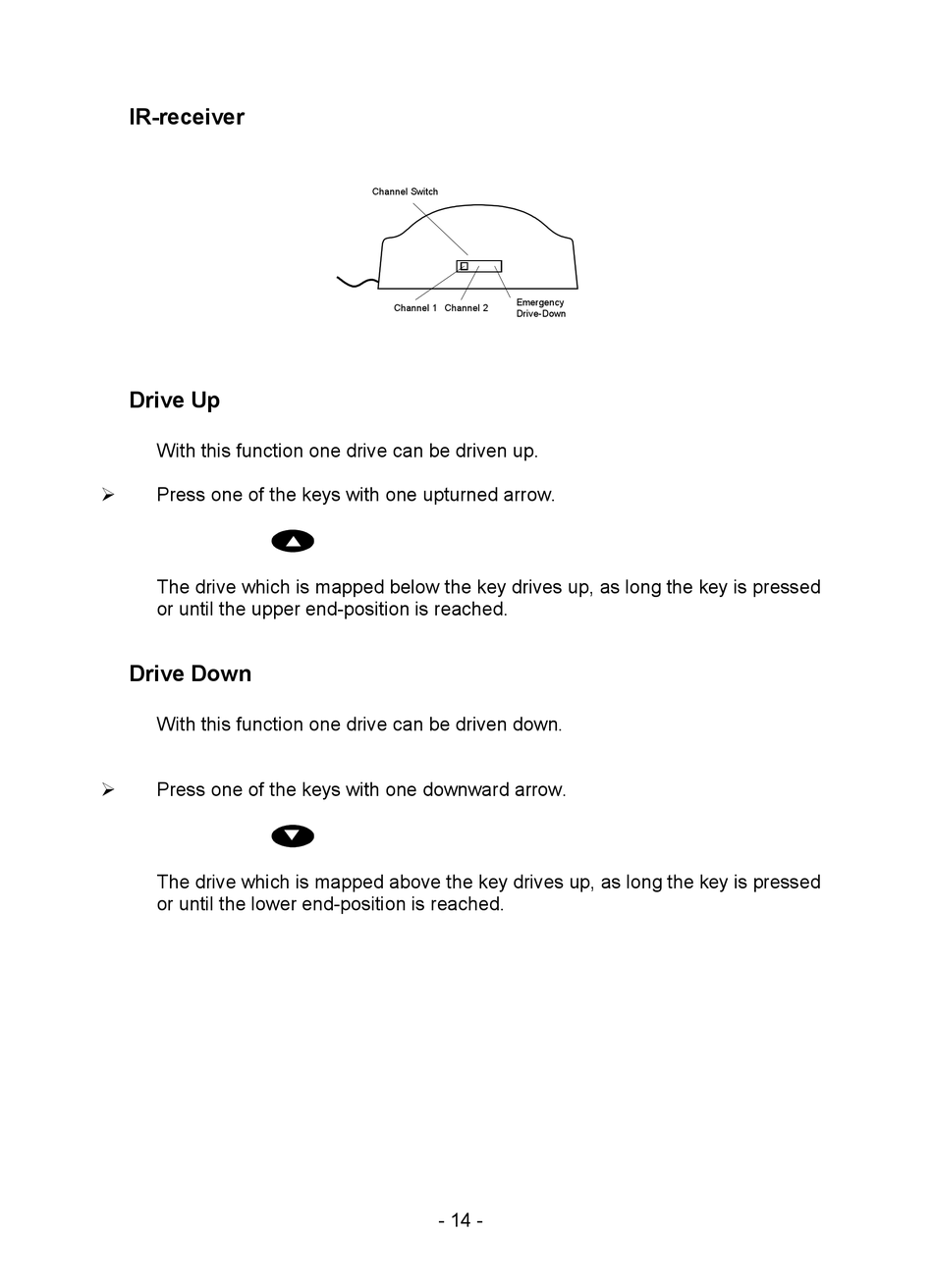

IR-receiver

Drive Up

With this function one drive can be driven up.
Ø
Press one of the keys with one upturned arrow.
The drive which is mapped below the key drives up, as long the key is pressed
or until the upper end-position is reached.

Drive Down

With this function one drive can be driven down.
Ø
Press one of the keys with one downward arrow.
The drive which is mapped above the key drives up, as long the key is pressed
or until the lower end-position is reached.
Channel Switch
Emergency
Channel 1 Channel 2
Drive-Down
- 14 -
