LCD monitor installation procedure

• Power installation: Please prepare two of AAA alkaline battery, open the battery cover and following the diagram
to install the battery. Connection via the cigarette lighter socket also possible.
• Switch on LCD monitor.
• Fixing frame installation: There are „glue plate" and „suction plate" inside the package you can use either one
to fix the frame. Please connect the multi-connector to the „glue plate" or the „suction plate" and then fix the
„Frame" to the back of the monitor.
• While you are installing the sensors, don't mix up the sensor caps.

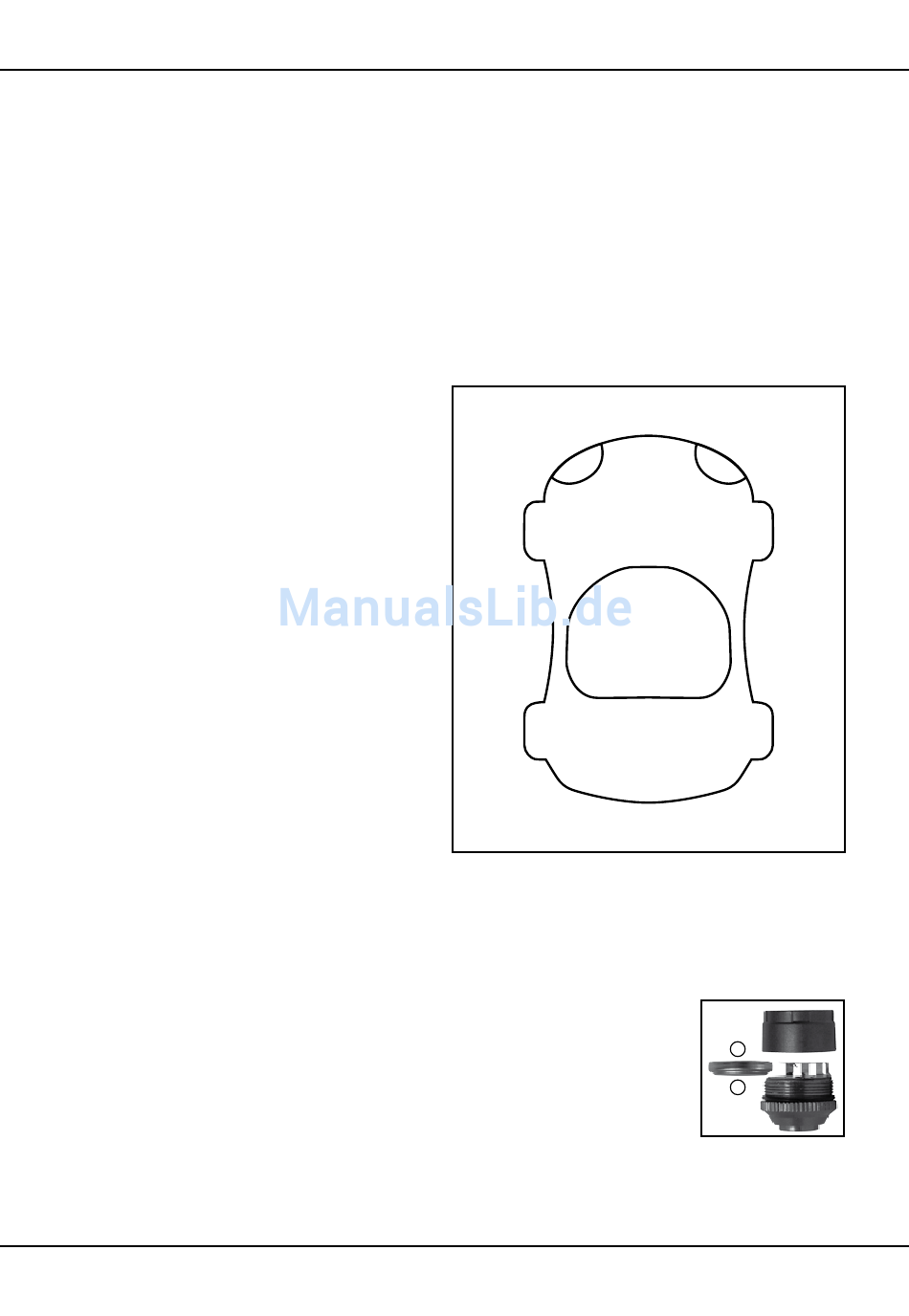

• The tire's position diagram as follows:
F.L. means „Front Left Tire"
F.R. means „Front Right Tire"
R.L. means „Rear Left Tire"
R.R. means „Rear Right Tire"

Tire pressure sensor installation

1. Install the battery. Attention: the negative pole must face the open end of the sensor.
Don't mix up the batteries caps!
2. Install the disassembly prevention lock to the tire valve stem. Teeth facing the end
of the valve.
3. Install the tire pressure sensor on the correct valve.
4. Please use the special key to open and lock the screw.
F.L
R.L
English
F.R
R.R
+
–
