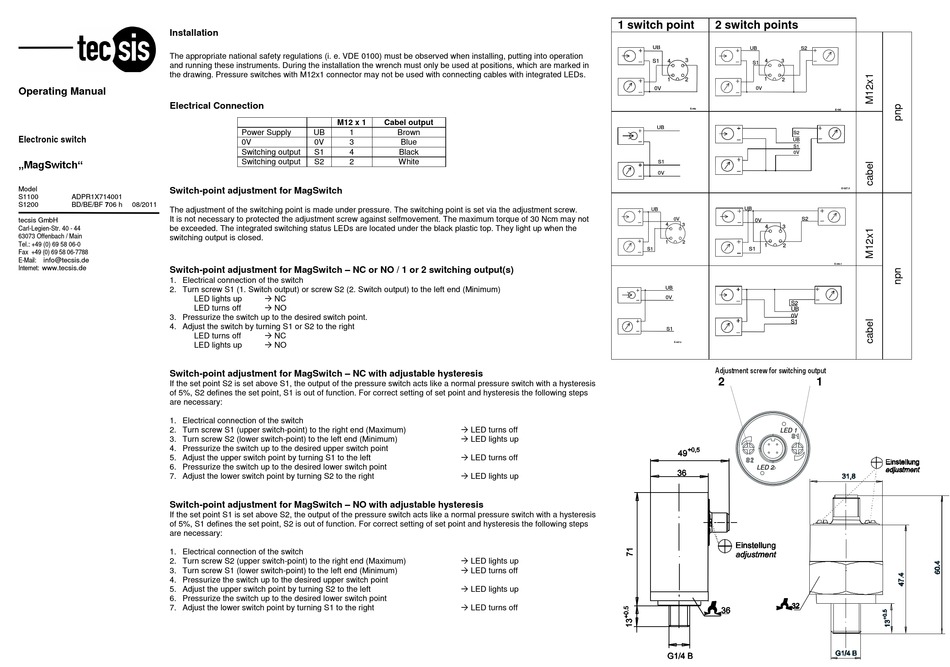

Tecsis MagSwitch Betriebsanleitung Seite 2

Installation
The appropriate national safety regulations (i. e. VDE 0100) must be observed when installing, putting into operation
and running these instruments. During the installation the wrench must only be used at positions, which are marked in
the drawing. Pressure switches with M12x1 connector may not be used with connecting cables with integrated LEDs.
Operating Manual
Electrical Connection
Electronic switch
„MagSwitch"
Model Switch-point adjustment for MagSwitch
S1100 ADPR1X714001
S1200 BD/BE/BF 706 h 08/2011
The adjustment of the switching point is made under pressure. The switching point is set via the adjustment screw.
It is not necessary to protected the adjustment screw against selfmovement. The maximum torque of 30 Ncm may not
tecsis GmbH
be exceeded. The integrated switching status LEDs are located under the black plastic top. They light up when the
Carl-Legien-Str. 40 - 44
63073 Offenbach / Main switching output is closed.
Tel.: +49 (0) 69 58 06-0
Fax +49 (0) 69 58 06-7788
E-Mail: info@tecsis.de
Internet: www.tecsis.de Switch-point adjustment for MagSwitch – NC or NO / 1 or 2 switching output(s)
1. Electrical connection of the switch
2. Turn screw S1 (1. Switch output) or screw S2 (2. Switch output) to the left end (Minimum)
LED lights up
LED turns off
3. Pressurize the switch up to the desired switch point.
4. Adjust the switch by turning S1 or S2 to the right
LED turns off
LED lights up
Switch-point adjustment for MagSwitch – NC with adjustable hysteresis
If the set point S2 is set above S1, the output of the pressure switch acts like a normal pressure switch with a hysteresis
of 5%, S2 defines the set point, S1 is out of function. For correct setting of set point and hysteresis the following steps
are necessary:
1. Electrical connection of the switch
2. Turn screw S1 (upper switch-point) to the right end (Maximum)
3. Turn screw S2 (lower switch-point) to the left end (Minimum)
4. Pressurize the switch up to the desired upper switch point
5. Adjust the upper switch point by turning S1 to the left
6. Pressurize the switch up to the desired lower switch point
7. Adjust the lower switch point by turning S2 to the right
Switch-point adjustment for MagSwitch – NO with adjustable hysteresis
If the set point S1 is set above S2, the output of the pressure switch acts like a normal pressure switch with a hysteresis
of 5%, S1 defines the set point, S2 is out of function. For correct setting of set point and hysteresis the following steps
are necessary:
1. Electrical connection of the switch
2. Turn screw S2 (upper switch-point) to the right end (Maximum)
3. Turn screw S1 (lower switch-point) to the left end (Minimum)
4. Pressurize the switch up to the desired upper switch point
5. Adjust the upper switch point by turning S2 to the left
6. Pressurize the switch up to the desired lower switch point
7. Adjust the lower switch point by turning S1 to the right
M12 x 1 Cabel output
Power Supply UB 1 Brown
0V 0V 3 Blue
Switching output S1 4 Black
Switching output S2 2 White
 NC
 NO
 NC
 NO
1 switch point
 LED turns off
 LED lights up
 LED turns off
 LED lights up
 LED lights up
 LED turns off
 LED lights up
 LED turns off
2 switch points
UB
UB S2
4 3 4
S1 3
S1
1 2 1 2
0V 0V
E-042
UB
S2
UB
S1
0V
S1
0V
UB
UB
S2
0V
0V
4 3
4 3
1 2
1
2
S1
S1
UB
0V
S2
UB
0V
S1
S1
E-027.2
Adjustment screw for switching output
2 1
LED 1
LED 2
E-043
E-027.3
E-043.1
