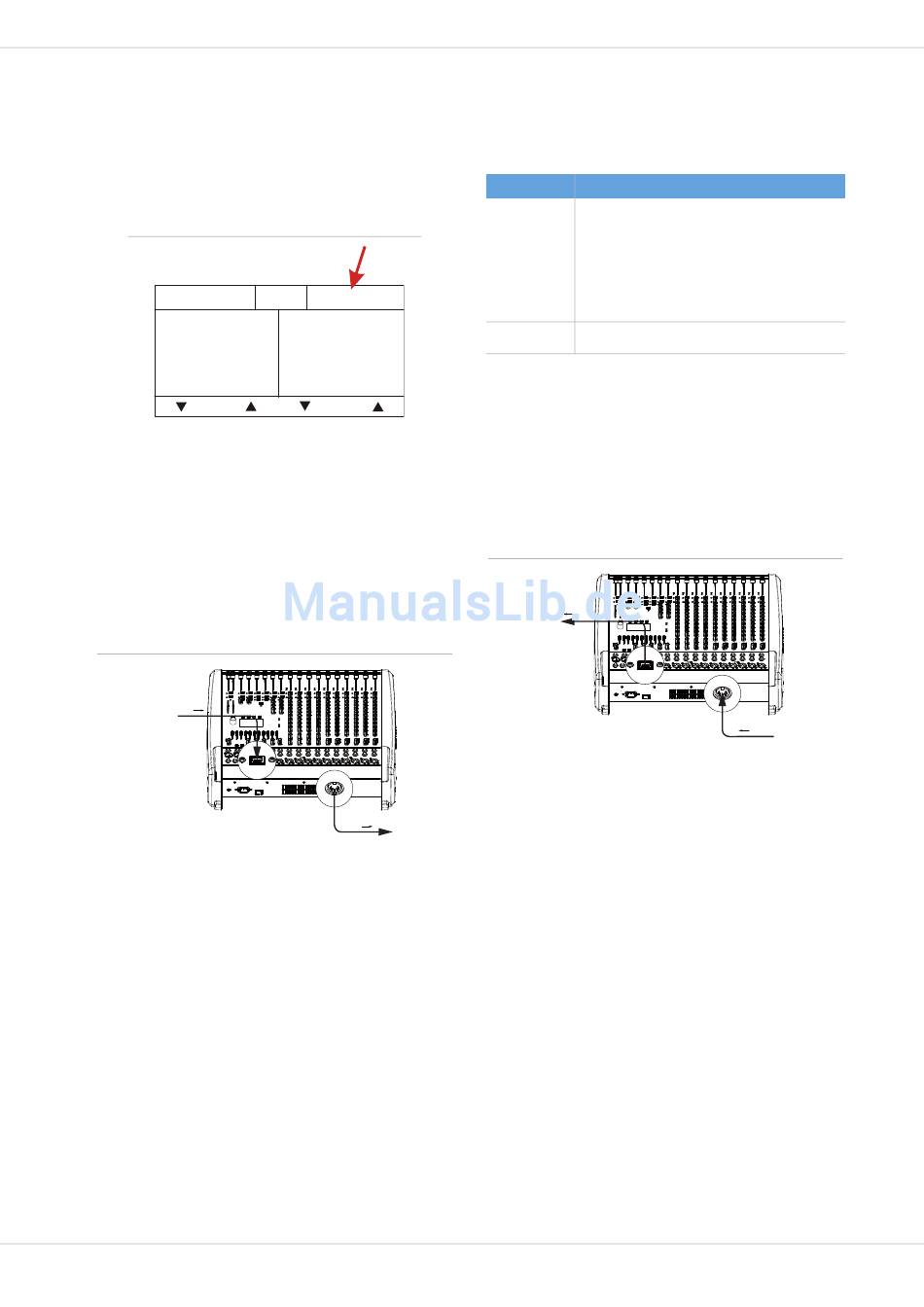

4.3 Status display
In effect mode, the display of the CMS shows the status
information of the DIGITAL AUDIO INTERFACE.
Illustration 4-2: DIGITAL AUDIO INTERFACE display
REC STUDIO
MIDI
BRIGHT HALL
5
Large Hall 3
FX1
4.4 PC-MIDI-Interface
The CMS provides a full-featured PC-MIDI interface. So,
when you use an appropriate software application to
send MIDI data from the PC/Mac to the DIGITAL AUDIO
INTERFACE, the MIDI data is present at the MIDI OUT jack
on the rear of the CMS.
Illustration 4-4: Sending MIDI data from a PC/Mac to a
Synthesizer
MIDI
USB from PC/Mac
Vice versa, all MIDI data input via the MIDI IN jack are
passed through to the PC, for instance to be recorded
using a sequencer software application.
Keep in mind that the control data for the integrated
effects units, that for example can be remotely controlled
via MIDI footswitch, are transmitted to the PC as well.
Data error interpretation can be avoided through careful
selection of suitable MIDI channels, see also "FX Control
Setup" on page 27 and the documentation of your soft-
ware application.
PEAK AUX 1
MONO DELAY
55
230 ms 40%
FX2
MIDI OUT
MIDI
to Synthesizer
Display
Description
PEAK AUX 1,
For at least one of the four recording channels exists the
PEAK AUX 2,
risk of clipping. Reduce the output level of the affected
PEAK MON 1,
channel by lowering the setting of the AUX 1, AUX 2, MON
PEAK MON 2,
1 or MON 2 fader or the REC SEND & USB OUT control
PEAK MASTER
(Master).
HINT:
The PEAK warning appears also when the
DIGITAL AUDIO INTERFACE connected to a
PC/Mac is used for playback purposes only.
In this case the warning can be ignored.
2TRACK PLAY
The Play USB to 2TRACK function is active, refer also to
page 28.
Table 4-3: USB status display
Illustration 4-5: Sending MIDI data from a Master Keyboard to a
PC/Mac
MIDI
USB to PC/Mac
HINT: For sending MIDI data from your PC to the
CMS, open the Sounds and Audio Devices Prop-
erties in the Windows Control Panel. Select
DYNACORD USB-MIDI as Default Device for
MIDI music playback.
3
CMS
MIDI IN
MIDI
Master Keyboard
31
