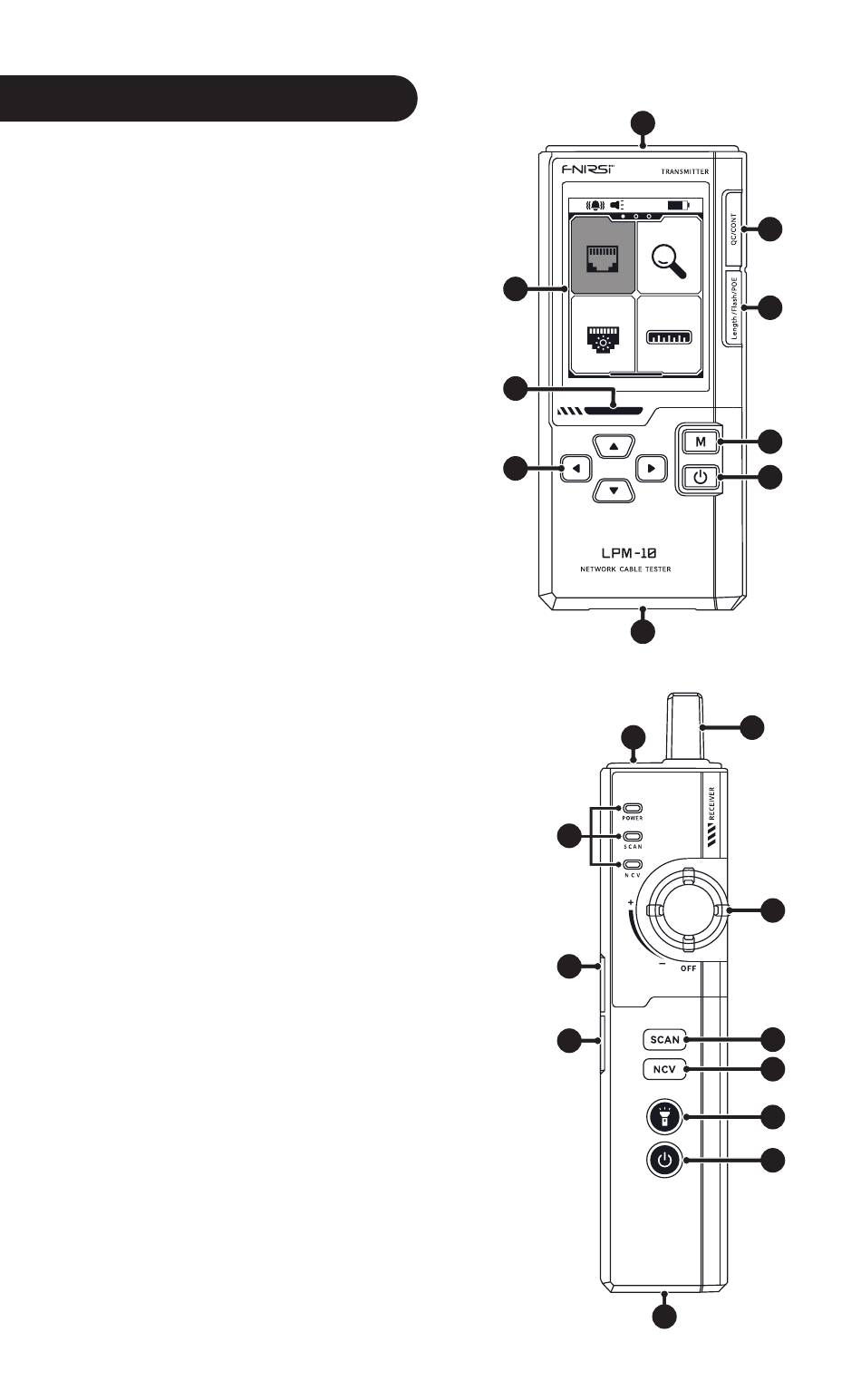

2.2 Product Description

①Wire tracing interface: RJ11/RJ45
connection port.
②LCD display: This area displays the
function test results, color screen.
③Function indicator: Idle is blue, error is
red, and correct is green.
④Selection key area: operation keys up,
down, left, and right.
⑤Charging port with power cover: USB
Type-C.
⑥Power on/off/return key: long press to
power on, short press to execute the
selected operation return key.
⑦Measurement/confirmation key:
measurement key, selection operation
confirmation key.
⑧Length measurement/end flash/POE
interface: This interface is used for
length test, port flash, and PoE test.
⑨Wire crimping/wire alignment interface:
This interface is used for wire crimping
test and wire alignment test.
⑩Probe: Enhance signal receiving
capability, accurately locate the line
position and adapt to different working
environments.
⑪Lighting lamp: Light is emitted from
here.
⑫Indicator lamp: Power indicator lamp,
wire tracing signal lamp, NCV signal
lamp.
⑬Sensitivity knob: Used to adjust the wire
tracing sensitivity.
⑭Headphone jack: 3.5mm headphone
jack.
⑮Receiver charging port with power
cover: USB Type-C.
⑯wire tracing button: Switch wire tracing
mode button.
⑰NCV button: Switch NCV mode button.
⑱Flashlight button: Turn on/off the
lighting function.
⑲Power button: Long press to turn on/off
the device power.
⑳RJ45 port: Used to connect the
transmitter.
