Seite 1
Leadex 70 AC Intraoraler Röntgenstrahler - intraoral x-ray system INSTALLATIONS- UND WARTUNGSANLEITUNG INSTALLATION & MAINTENANCE MANUAL V05.00.00 D I E S E A N L E I T U N G S O L L T E I M M E R I N D E R N Ä H E D E S G E R Ä T E S A U F B E W A H R T W E R D E N T H I S M A N U A L...
Seite 2

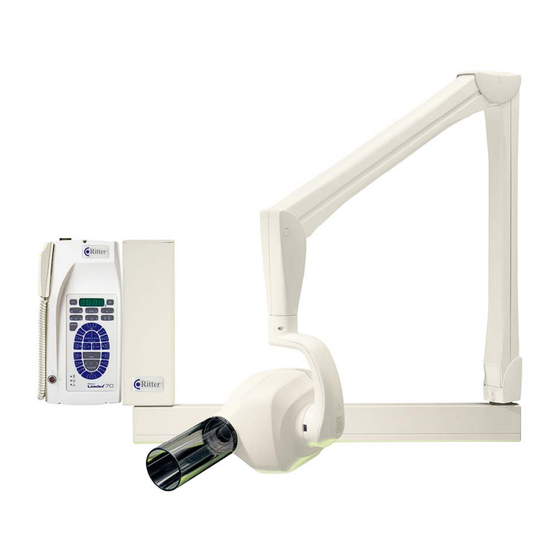

APITEL HAPTER RÖNTGENSYSTEM RADIOGRAPHIC SYSTEM Fig.1 Das Röntgensystem (Abb. besteht aus The radiographic system ( consist folgenden Komponenten: SYSTEM SYSTEM KOMPONENTEN COMPONENTS Abb.1/Fig. 1 TIMER TIMER GELENKARM PANTOGRAPH TYPE ARM RÖNTGENKOPF TUBEHEAD TUBUS CONE WANDARM BRACKET WANDHALTER WALL PLATE OPTIONAL OPTIONAL ZWEITER AUSLÖSER SECOND CONTROL BUTTON...
AUSSEN OVERALL ABMESSUNGEN DIMENSIONS Abb. zeigen die Außenabmessungen Fig. give the overall dimensions of the der lieferbaren Wandarme: possible supply conditions: WANDARM 400: Länge 41cm – 16,2” BRACKET 400: length 41cm – 16,2” WANDARM 800: Länge 82,5cm – 32,5” BRACKET 800: length 82,5cm – 32,5” WANDARM 1100: Länge 110cm –...
Seite 4
Fig. 3 Abb. und 4 zeigen die typischen Abmessungen show the typical dimensions of the des Röntgensystems: radiographic system: Abb. 3/Fig. 3 Abb. 4/Fig. 4...
Seite 6
Major Dental Equipment Utility Specifications Ritter Leadex 70 DC Intra Oral X Ray Electrical POWER supply GPO minimum 240v/10a power to marked location area (refer x- ray mounting template), Leave 500mm tail as requested. Power Supply must be installed in accordance with AS/NZS 3003.2011 for Body Protection with R.C.D...
