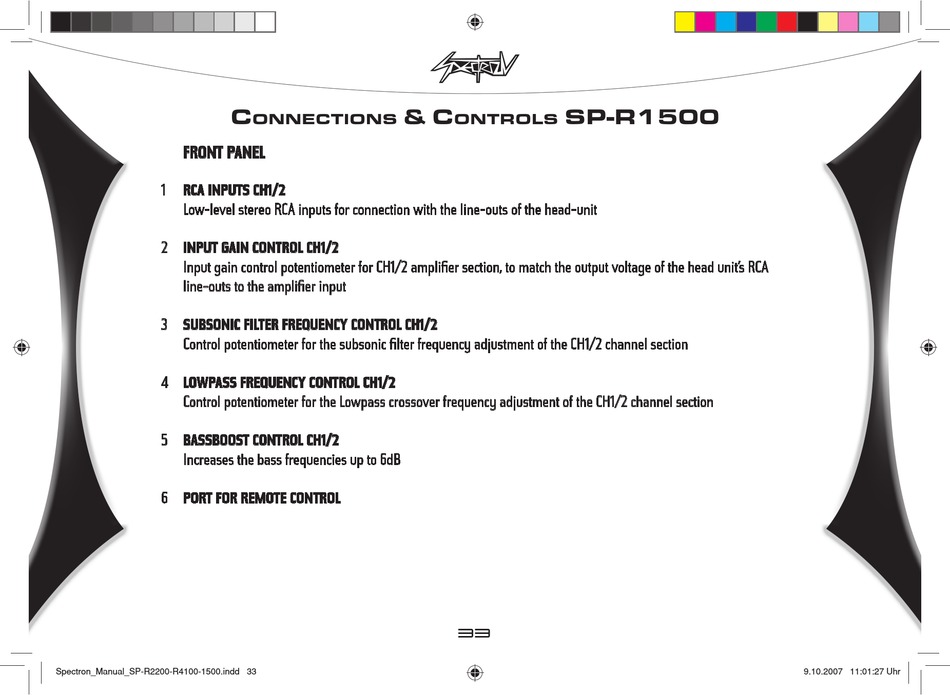

FRONT PANEL FRONT PANEL
1 1 RCA INPUTS CH1/2 RCA INPUTS CH1/2
Low-level stereo RCA inputs for connection with the line-outs of the head-unit Low-level stereo RCA inputs for connection with the line-outs of the head-unit
2 2 INPUT GAIN CONTROL CH1/2 INPUT GAIN CONTROL CH1/2
Input gain control potentiometer for CH1/2 amplifi er section, to match the output voltage of the head unit' s RCA Input gain control potentiometer for CH1/2 amplifi er section, to match the output voltage of the head unit' s RCA
line-outs to the amplifi er input line-outs to the amplifi er input
3 3 SUBSONIC FILTER FREQUENCY CONTROL CH1/2 SUBSONIC FILTER FREQUENCY CONTROL CH1/2
Control potentiometer for the subsonic fi lter frequency adjustment of the CH1/2 channel section Control potentiometer for the subsonic fi lter frequency adjustment of the CH1/2 channel section
4 4 LOWPASS FREQUENCY CONTROL CH1/2 LOWPASS FREQUENCY CONTROL CH1/2
Control potentiometer for the Lowpass crossover frequency adjustment of the CH1/2 channel section Control potentiometer for the Lowpass crossover frequency adjustment of the CH1/2 channel section
5 5 BASSBOOST CONTROL CH1/2 BASSBOOST CONTROL CH1/2
Increases the bass frequencies up to 6dB Increases the bass frequencies up to 6dB
6 6 PORT FOR REMOTE CONTROL PORT FOR REMOTE CONTROL
