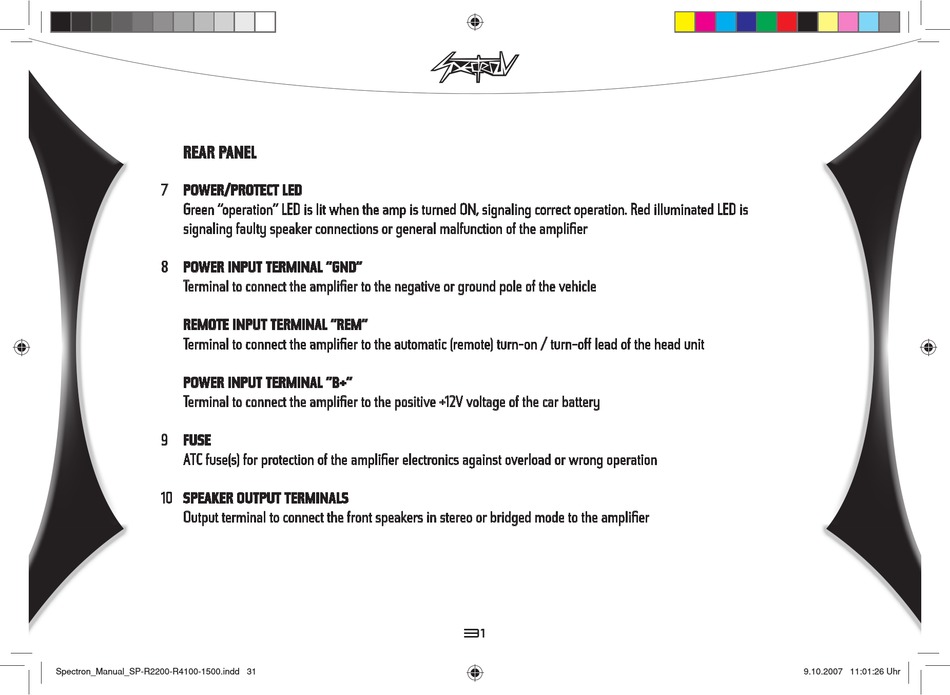

Spectron SP-R4100 Bedienungsanleitung Seite 31

REAR PANEL REAR PANEL
7 7 POWER/PROTECT LED POWER/PROTECT LED
Green "operation" LED is lit when the amp is turned ON, signaling correct operation. Red illuminated LED is Green "operation" LED is lit when the amp is turned ON, signaling correct operation. Red illuminated LED is
signaling faulty speaker connections or general malfunction of the amplifi er signaling faulty speaker connections or general malfunction of the amplifi er
8 8 POWER INPUT TERMINAL "GND" POWER INPUT TERMINAL "GND"
Terminal to connect the amplifi er to the negative or ground pole of the vehicle Terminal to connect the amplifi er to the negative or ground pole of the vehicle
REMOTE INPUT TERMINAL "REM" REMOTE INPUT TERMINAL "REM"
Terminal to connect the amplifi er to the automatic (remote) turn-on / turn-off lead of the head unit Terminal to connect the amplifi er to the automatic (remote) turn-on / turn-off lead of the head unit
POWER INPUT TERMINAL "B+" POWER INPUT TERMINAL "B+"
Terminal to connect the amplifi er to the positive +12V voltage of the car battery Terminal to connect the amplifi er to the positive +12V voltage of the car battery
9 9 FUSE FUSE
ATC fuse(s) for protection of the amplifi er electronics against overload or wrong operation ATC fuse(s) for protection of the amplifi er electronics against overload or wrong operation
10 10 SPEAKER OUTPUT TERMINALS SPEAKER OUTPUT TERMINALS
Output terminal to connect the front speakers in stereo or bridged mode to the amplifi er Output terminal to connect the front speakers in stereo or bridged mode to the amplifi er
