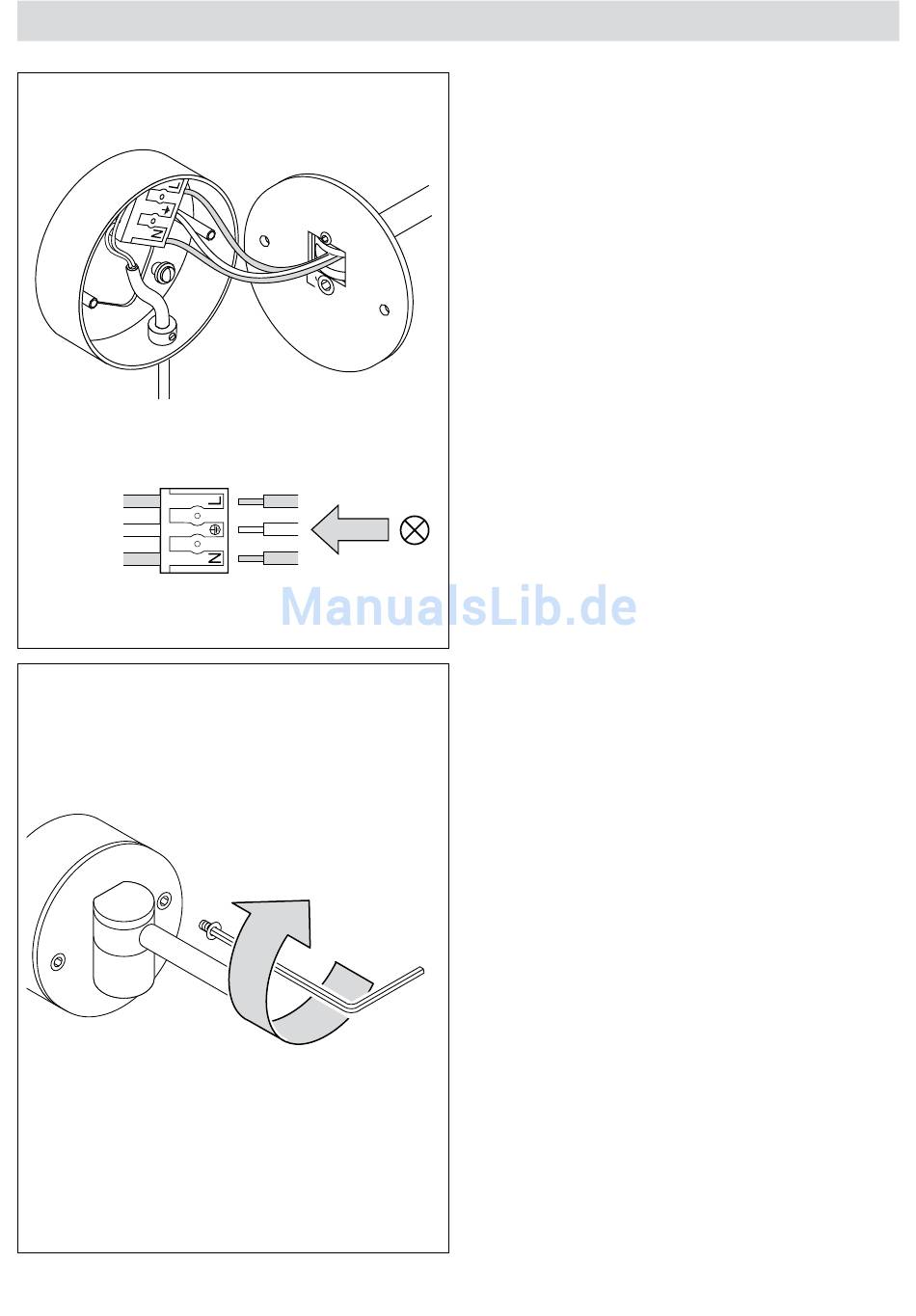

Connect the ends of the cables for the
lamp body to the terminal block as shown
in the diagram.
Connect the sensor cable in the middle
(earth symbol).
Fit the lamp body onto the box and screw
on with the Allen screws provided.
