Mounting

$
Caution
Before mounting, disconnect all
current-carrying lines from the mains
supply.

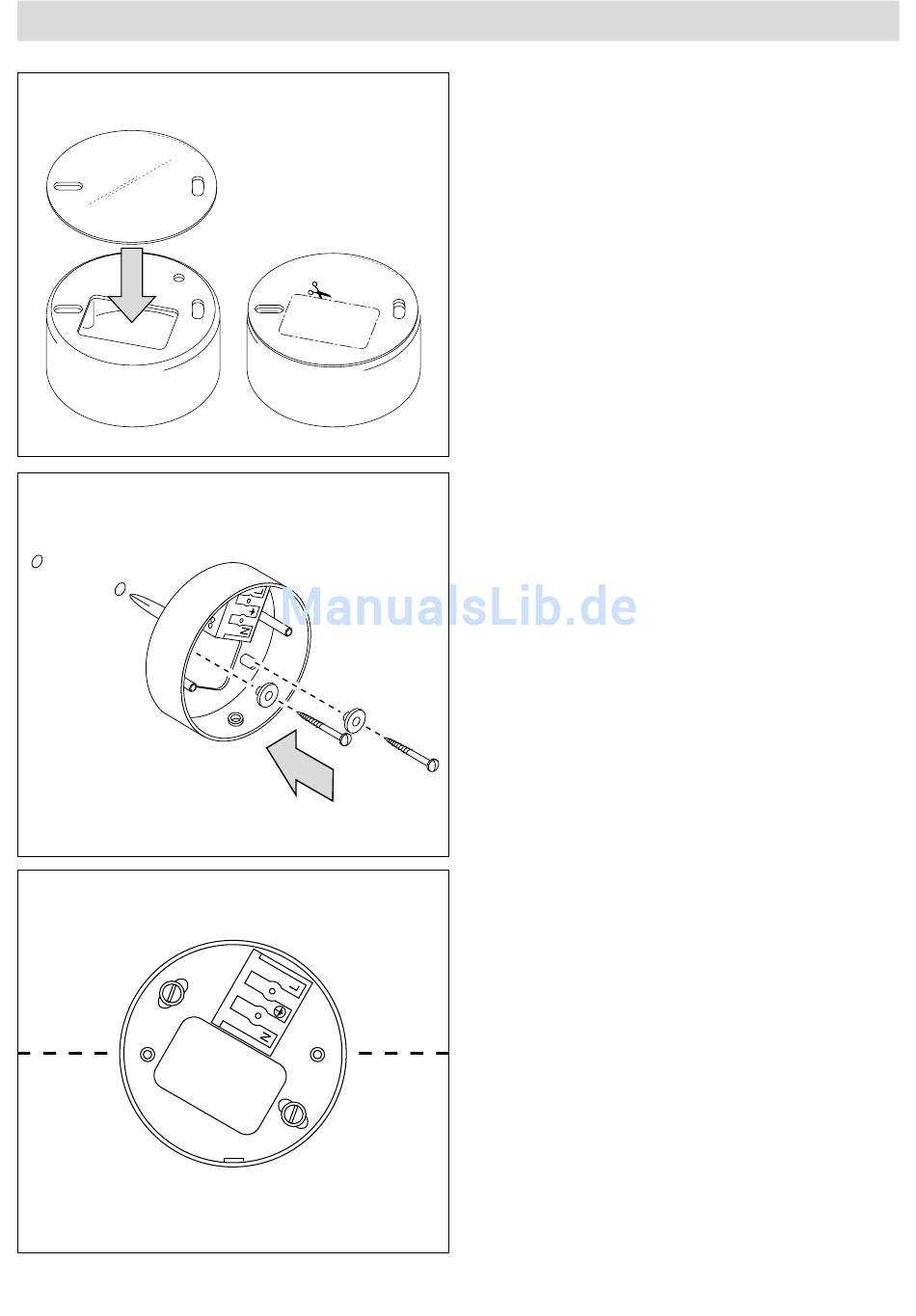

Remove the protective film from the
insulating foil and stick it to the back of
the spacing box.
Use a cutter to cut out the recess.
Place the spacing box at the desired
position on the wall and turn it so that
the bushings for mounting the lamp are
aligned vertically. Mark the position of the
drill holes through the fixing slots.
Before drilling, check where the cables
are routed in the wall.
Drill two 6 mm diameter holes and insert
the wall plugs flush with the wall.
Screw the spacing box to the plastering/
built-in box with the plastic insulation
washers supplied.
Make sure that the screws are insulated
from the spacing box, otherwise the sen-
sor dimming operation may be adversely
affected.
Align the box horizontally and tighten the
screws.
