Operating instructions
USB studio microphone
Item no. 1343669
Intended use
This microphone is designed to convert acoustic signals (sound waves) into electrical
signals. It is designed for podcast productions, multimedia presentations and other
applications such as test recordings, voice recordings and interviews. The vibration-
damping microphone holder can be securely fixed to a microphone stand (not
included) and decouples structure-borne sound transmitted from the stage/floor to
the microphone, enabling clear and noise-free recording. The microphone can be
easily adjusted to a wide variety of heights/positions for standing or sitting speakers/
singers using a microphone stand. The low-level audio output signal must only be
connected to suitable USB inputs on computers and other suitably equipped audio
devices. Analogue headphones with a 3.5 mm jack can be connected directly to the
microphone.
It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in
bathrooms, must be avoided under all circumstances.
For safety and approval purposes (CE), you must not rebuild and/or modify this product.
If you use the product for purposes other than those described above, the product may
be damaged. In addition, improper use can cause hazards such as short circuiting,
fire, electric shock etc. Read the instructions carefully and keep them. Make this
product available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All
company names and product names are trademarks of their respective owners. All
rights reserved.
Delivery content
• USB studio microphone
• Microphone holder
• USB cable
• Operating instructions
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the
warranty/guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may
become dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong
jolts, high humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can no
longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a
low height can damage the product.
• Also observe the safety and operating instructions of any other devices
which are connected to the product.
• The microphone must only be operated via a USB connection (5 V/DC).
• When using the product, make sure that the cable is not pinched, kinked
or damaged by sharp edges.
• Consult an expert when in doubt about operation, safety or connection of
the device.
• Maintenance, modifications and repairs are to be performed exclusively
by an expert or at a qualified shop.
• If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.

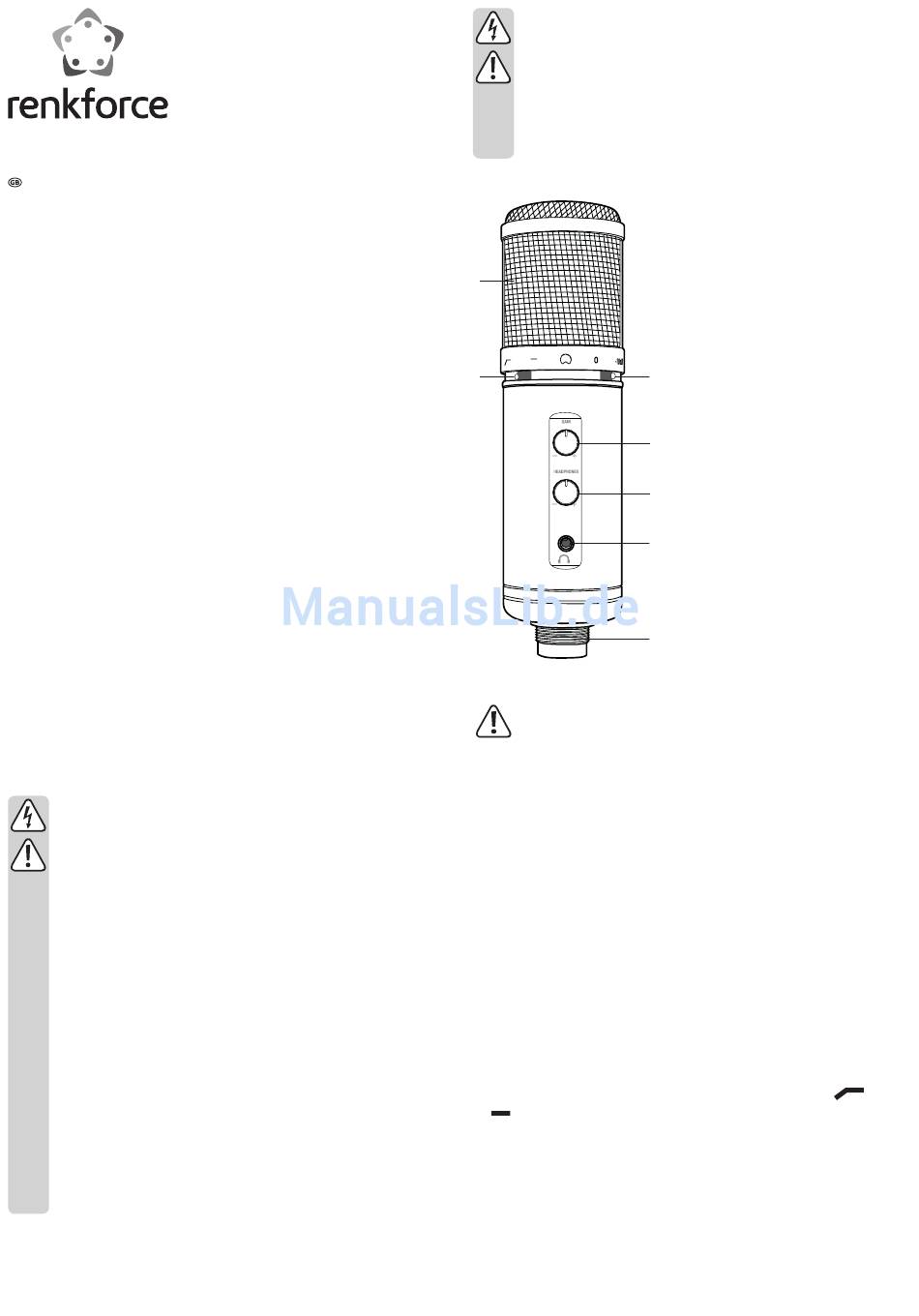

Operating elements
2
1
Operation
The product must only be connected to suitable USB inputs in order to avoid
distortions or mismatches that could cause damage to the microphone or
the connected audio device. Refer to the connection information in the
"Technical data".
Never direct the microphone at the sound outlet of loudspeakers, as this
can result in feedback which may damage the loudspeakers and the
connected amplifier.
a) Mounting and connection
1. Screw the microphone head onto a suitable microphone stand (not included) using
the screw joint on the bottom.
2. Fix the microphone in the desired position by tightening the clamp screw.
3. Screw the microphone into the microphone stand. Hold the microphone with
the control dials facing towards you and screw the nut underneath onto the
microphone using your fingers.
4. Ensure that you place the product in a secure position.
5. Adjust the audio software volume to zero on the digital audio device that you are
connecting to the microphone. If speakers are connected, reduce the volume on
these too.
6. Connect the USB connection (7) on the microphone to your computer/audio device
using the USB cable. The LED indicator inside the microphone head (2) will turn on
when the microphone is supplied with power.
b) Settings on the microphone
1. Set the desired filter mode using the high-pass filter switch (1):
flat.
2. Set the sensitivity of the microphone using the sensitivity control (3):
0: full sensitivity, -10dB: minus 10 dB sensitivity.
3. The Gain control GAIN (4) sets the level of the microphone signal:
+ stronger, - weaker
4. The volume control HEADPHONE (5) sets the volume of the headphones:
+ increase volume, - decrease volume.
1 High-pass filter switch
2 Microphone head
3 Sensitivity control
4 Gain control GAIN
5 Volume control HEADPHONE
6 Headphone socket
3
7 USB connection
4
5
6
7
low cut,
