4. OPERATION
6
2
5
7

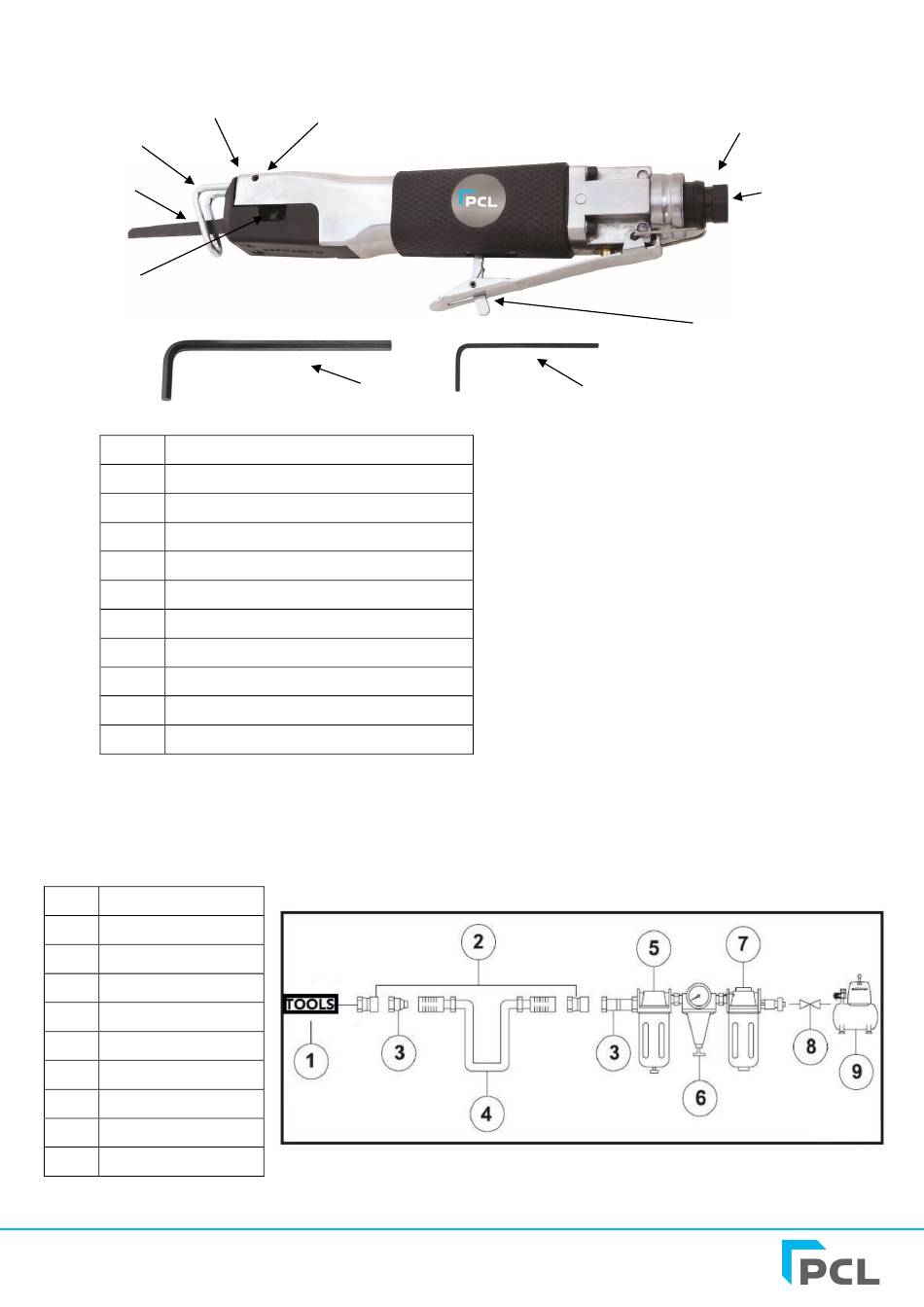

Description
1 Trigger/Safety lever
2 Work guide
3 Work guide adjustment screw
4 Exhaust
5 Blade
6 Blade retainer
7 Blade retaining screws
8 Compressed air inlet
9 4mm Allen key
10 2mm Allen key
Be sure to use the correct air compressor with air-powered tools. The compressor should be able to
supply a minimal air delivery of 6.36 SCFM @ 90 psi to ensure the compressor can run continuously with
the tool.
Always use clean, dry regulated compressed air.
Description
1 Air Tool
2 Adaptor
3 Coupling
4 Air Hose
5 Lubricator
6 Regulator
7 Filter
8 Cut-off valve
9 Air compressor
