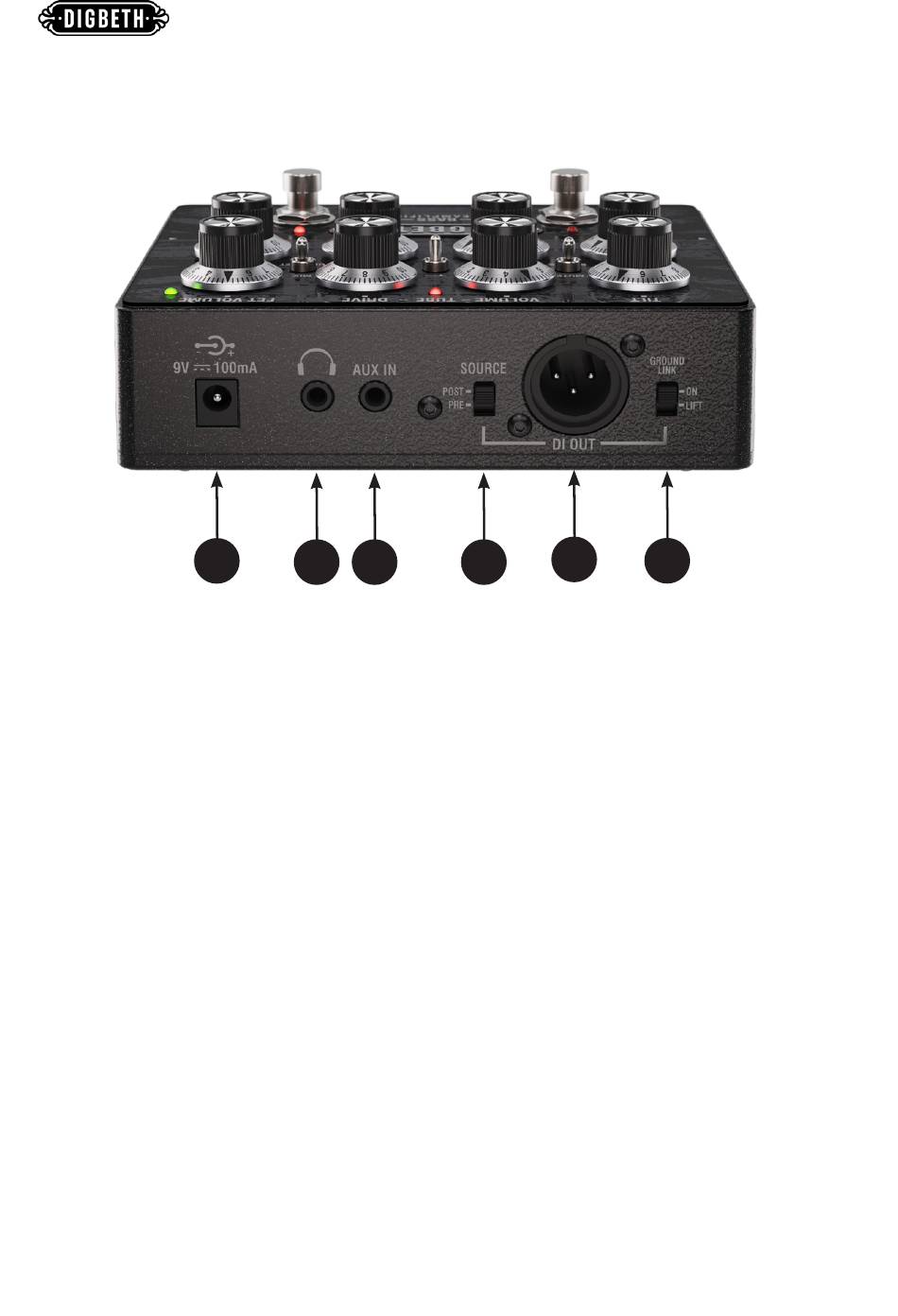

DB-PRE FEATURES
13 - PSU input for connectinig a regulated 9V DC PSU, centre negative,
2.1x5.5x10mm connector type
14 - PHONES SOCKET – Connecting headphones for monitoring or silent
practice..
15 - AUX IN – Provided for connecting an external sound source. Useful for
jamming along with audio tracks.
16 - SOURCE SWITCH - The signal sent to the DI-XLR can sent either PRE or
POST the pedals EQ section. The source is selected via this switch. With the
switch set in pre position the EQ section of the pedal is bypassed. With the
switch set to post mode the pedal EQ setting plus the TILT (1) setting will be
sent to the XLR-DI (16).
17 - XLR-Balanced D.I. Out – This is a balanced signal output for sending to
external devices such as mixing desking, PA etc.
18 - GROUND LIFT – Provided to avoid any hum problems there may be when
connecting the balanced D.I to external equipment such as mixing desks etc.
