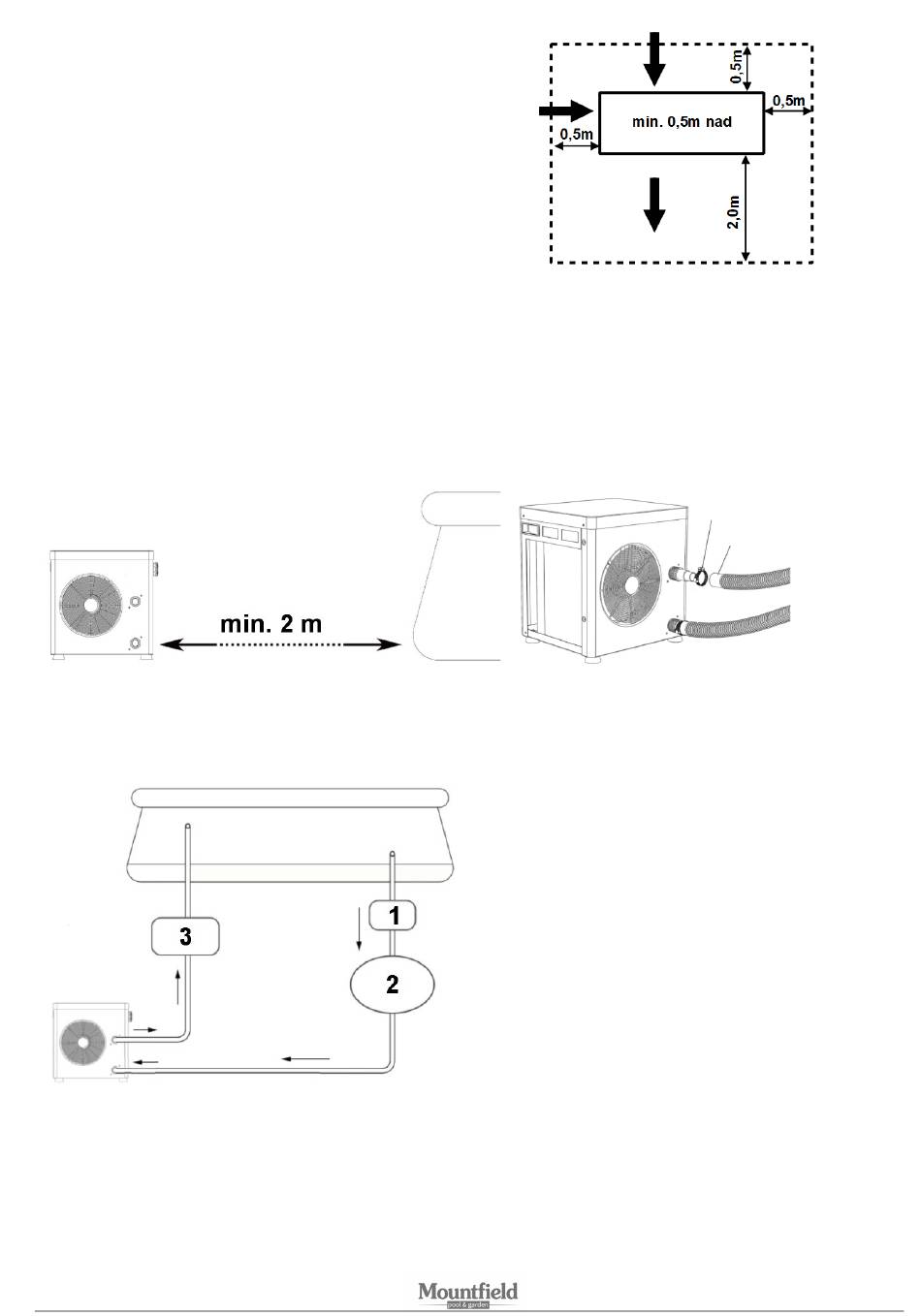

The image on the side shows the minimum distance
(9)
requirements of the heat pump from obstacles
(10) The distance of the equipment from the edge of the pool may not be
2 m. Installation of the heat pump ensuring the overall length of
connecting hoses doesn't exceed 30 m is recommended. Remember,
longer the connecting hoses, the greater the heat and pressure losses
line.
(11) Optimal heat exchange is ensured with the water flow specified on
plate of the pump and in the specifications.
(12) The equipment must be placed on a level and solid surface, e.g., on a
plinth or steel support.
(13) During installation, it is necessary to take winter decommissioning of
pump into account, which requires timely disconnection before
temperatures occur, disconnection of the heat pump from the filtration circuit and, including other parts of the water circuit,
drainage of all water. The guarantee does not cover frost damage.
(14) The heat pump is fitted with connecting branches for connection of pool hoses with a diameter of 32 or 38 mm.
In case of aboveground installation, always use pipes, not hoses. The exchanger threaded coupling cannot support the
exchanger's weight and may result in damage to the exchanger.
(15) The placement of water treatment equipment (chlorinator, ozonator, etc.) has significant impact on the service life of the heat
pump. Disinfection dosage equipment must be placed so the dosage outlet is connected downstream from the heat pump. In
this part of the line an air trap, preventing back flow of water, must at least be installed.
Note: The manufacturer only supplies the heat pump, hose pins and hose clamps. Request all other components, including hoses
and brackets, from your dealer.
Connection diagram:
.
1 – filtration pump
2 – filtration container
3 – chemical water treatment equipment (chlorinator,
ozonator, etc.)
Note: The water treatment equipment must be
located downstream from the thermal pump.
less than
that the
in the
the name
concrete
the heat
freezing
Hose clamp
Hose
