Connecting the receiver to the control panel

Connecting the safety outputs to control panel.

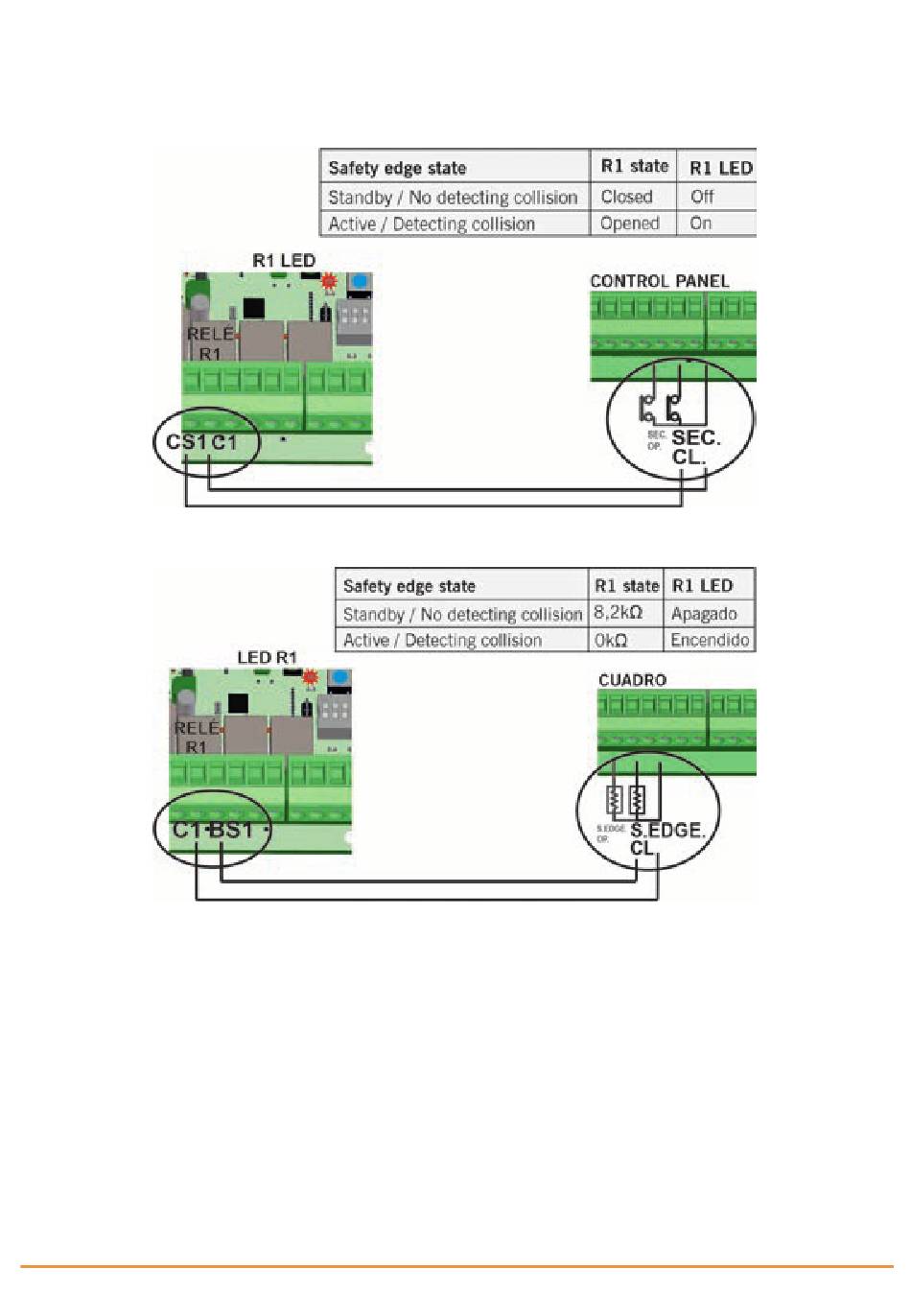

Example: connection to control panel with safety contact / STOP input
Example: connection to control panel with input for safety edge 8k2
The equipment can be connected to the control panel with input for safety edge 8k2 or
directly into a safety input normally closed contact as if it were a photocell or stop sig-
nal.
This connectivity exists for R1 and R2 outputs.
