Sigma HT114 Bedienungsanleitung Seite 2

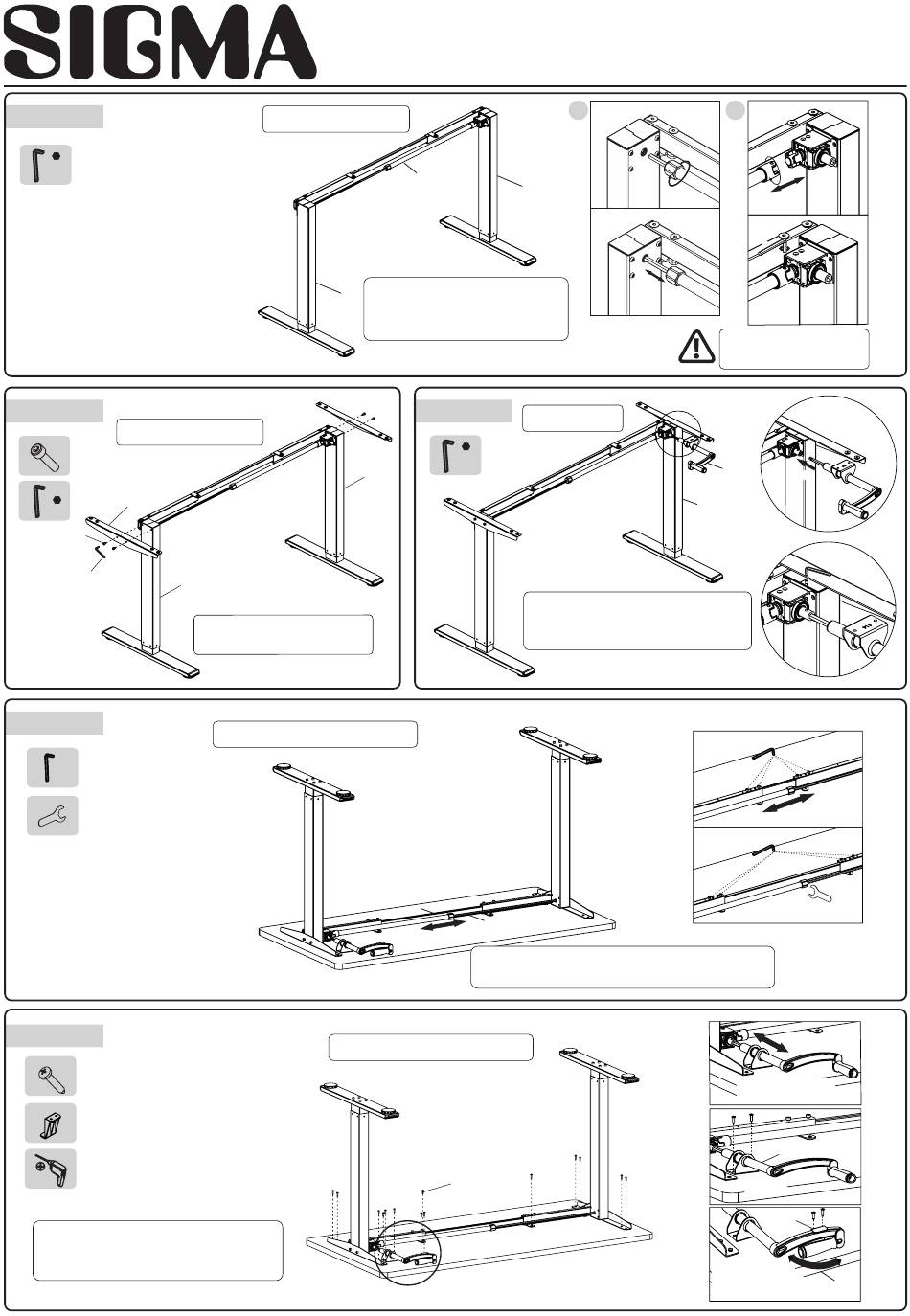

STEP3
A
2.5x
2.5
STEP4
Install Supporting plate(6)
C
x4
A
6
5x5
C
A
2
STEP6-1
A
4x4
G
STEP6-2
D
x14
H x1
Fix the desktop with screws (D), screw the crank
(7) and the crank holder (H) on the desktop with
screws (D ), and lock them with a pistol drill.
Install Transmission rod(5)
2
3
Install(6)&(2)(3), use 5*5 wrench(A)
to tighten the screws(C).
Adjust the beam and transmission rod
Install the desk, crank and crank holder
5
3
Install (5) & (2)(3), following picture1
shows first, then picture 2, use 2.5*2.5
wrench(A) to tighten.
STEP5
Install the crank
A
2.5x
2.5
hexagonal hole on the column (3), and use
a 2.5 x 2.5 wrench (A) to tighten the above
self-contained screw.
3
5
Stretch the beam (4) and the transmission rod (5) to a
suitable position according to the hole position of the desk.
D
1 2
Loosen
Insert
Do not rotate the drive rod
more than a third of a turn.
7
3
A
Loosen
Tighten
Stretch the crank to
a suitable position
Fixed crank
Fold the crank to
the inside of the desk,
and fix the crank holder
HT114
Rotate
Insert
A
Tighten
Insert
A
Tighten
Stretch
A
G
Tighten
7
H
Desktop
