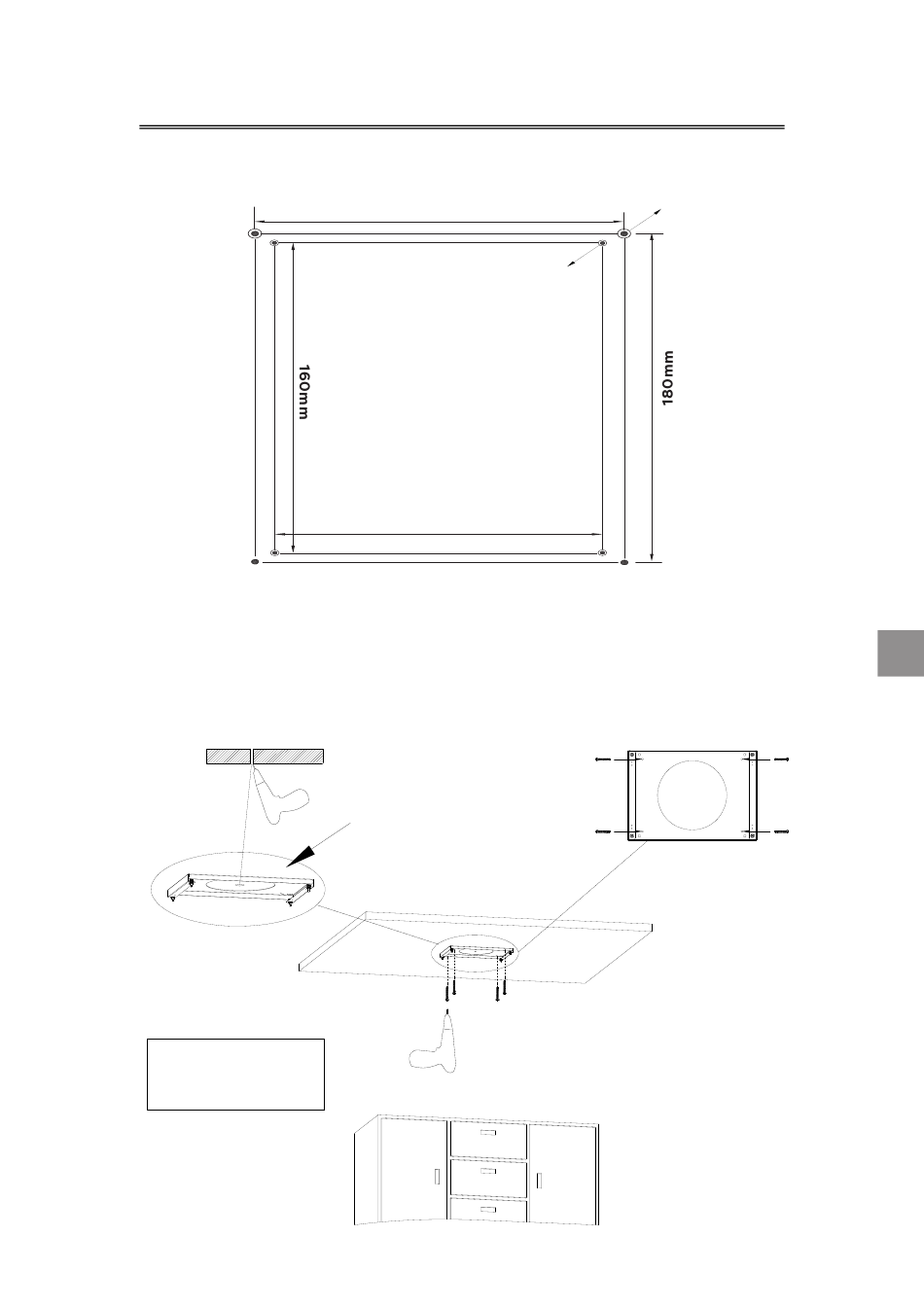

3) Below is the 1:1 hole drilling installation drawing:
4) According to the 1:1 installation diagram, drill 4*Ø8mm holes to
accommodate the Hanging plate, tighten the bracket onto the
ceiling with the Expansion bolt holes provided.
Attention: If the ceiling is made of wood, there is no need to drill
holes, and the hanging plate are directly fixed on the ceiling with
4pcs 6*40mm Screws.
COMPONENTS:
Part 2: Expansion Bolt X 4
Part 6: Hanging Plate X 1
140mm
Self-tapping
Screw Holes
124.4mm
Hanging plate
9
Installation
Expansion
Bolt Holes
