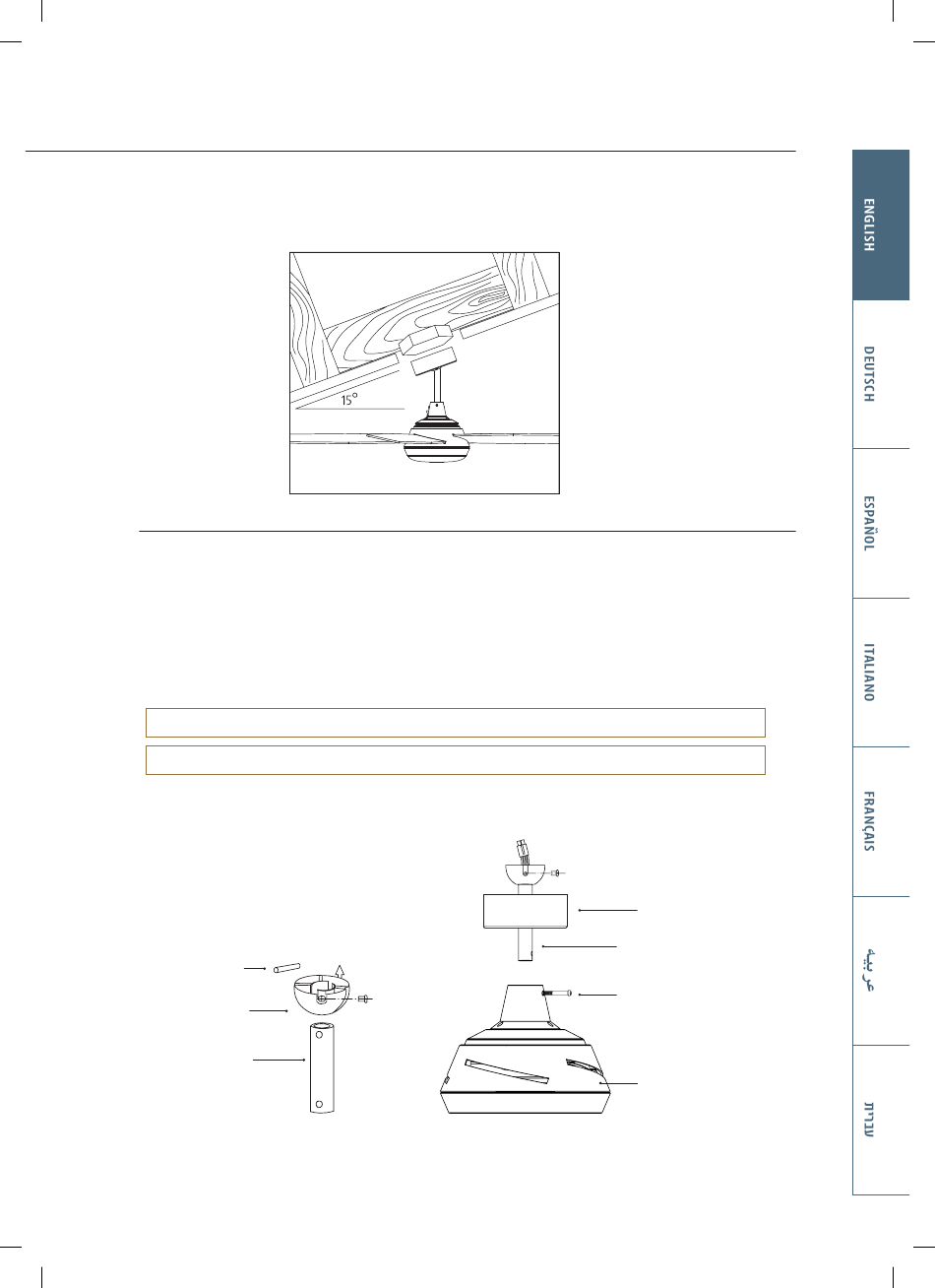

5. Installing the ceiling fan at an angle

- This fan can be installed at a ceiling slope of up to 15 degrees.
6 . Assembling the down rod and the ceiling cover
- Loosen the screw of the ball-joint and remove the pin of the ball-joint, so that it allows the ball-joint to be
disassembled from the down rod.
- Thread the wiring through the ceiling cover, and the down rod.
- Place the down rod on top of the fans motor housing and align the holes.
- Insert the pin through the extension rod (make sure the wires are not damaged) and insert the security pin.
Attention! Perform the assembly of the down rod and the upper cover with manual and non-electric tools.
Attention! It is mandatory to tighten the 2 screws of the down rod to the fan motor housing.
- Reassemble the ball-joint and ensure proper installation of the ball-joint pin and the ball-joint screw.
Ball-joint pin
Ball-joint
Down rod
Ceiling cover
Down rod
Pin
Fan motor
