Reverse Cascading Operation
Cascading-Primary Controller
Hand-Switch
Motor 1 Motor 2

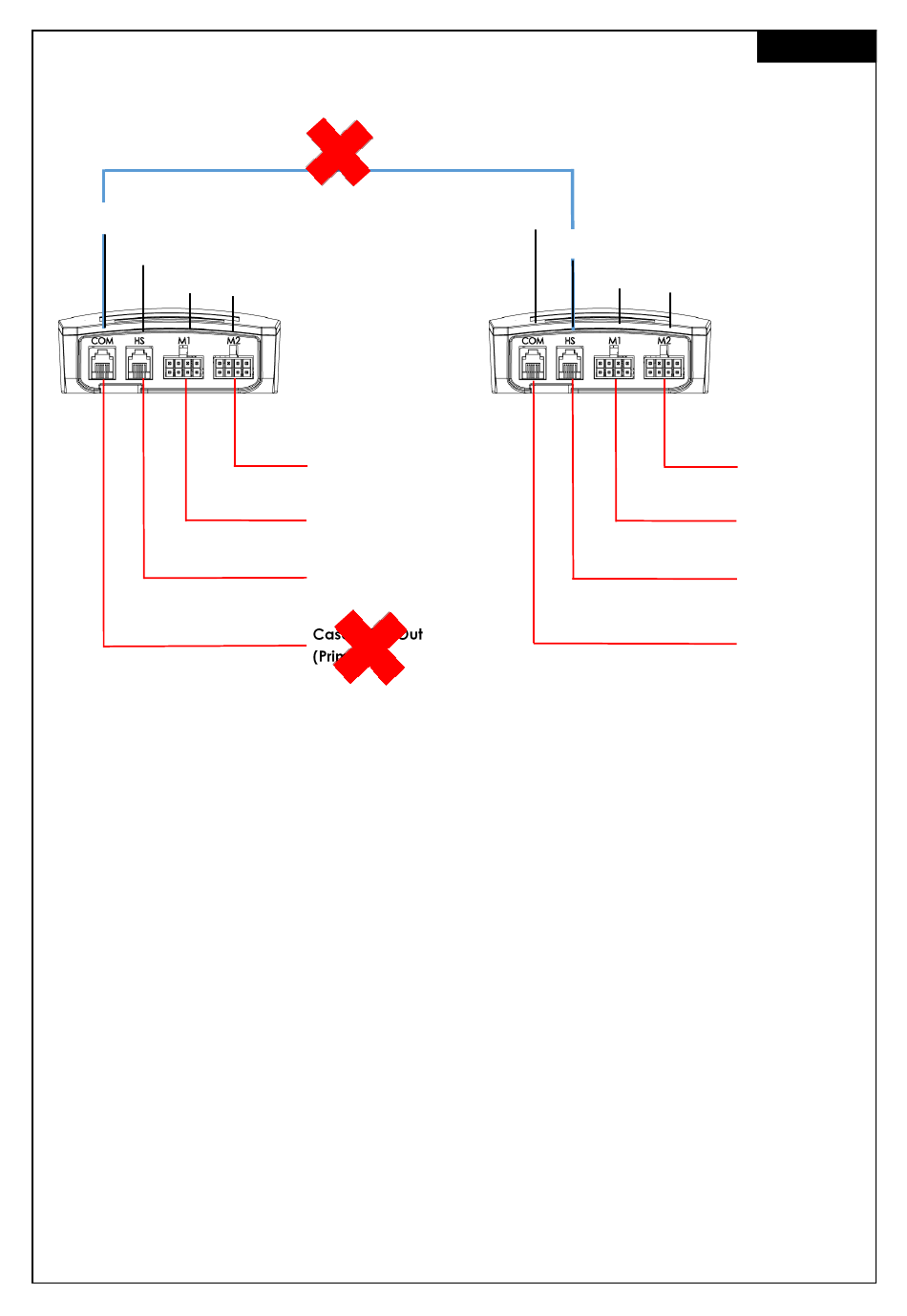

Reverse Cascading Instructions
• Disconnect cascading cable from both controllers.
• Both controller will click/beep as verification.
• Connect Hand-switch to "HS" port of Controller 2.
• Hold the down button of Hand-Switch for both tables until they moved to the lowest position and
reversed their drive direction.
Cascading Cable
Controller 1
Table 1-Leg 2
Table 1-Leg 1
Hand-Switch
Sensor
Cascading-Secondary Controller
Motor 1 Motor 2
English
Controller 2
Table 2-Leg 2
Table 2-Leg 1
Hand-Switch
Sensor
(Optional)
