actiforce ControlForce Montageanleitung Seite 12

CORRECT
CORRECT
Figure 1.8

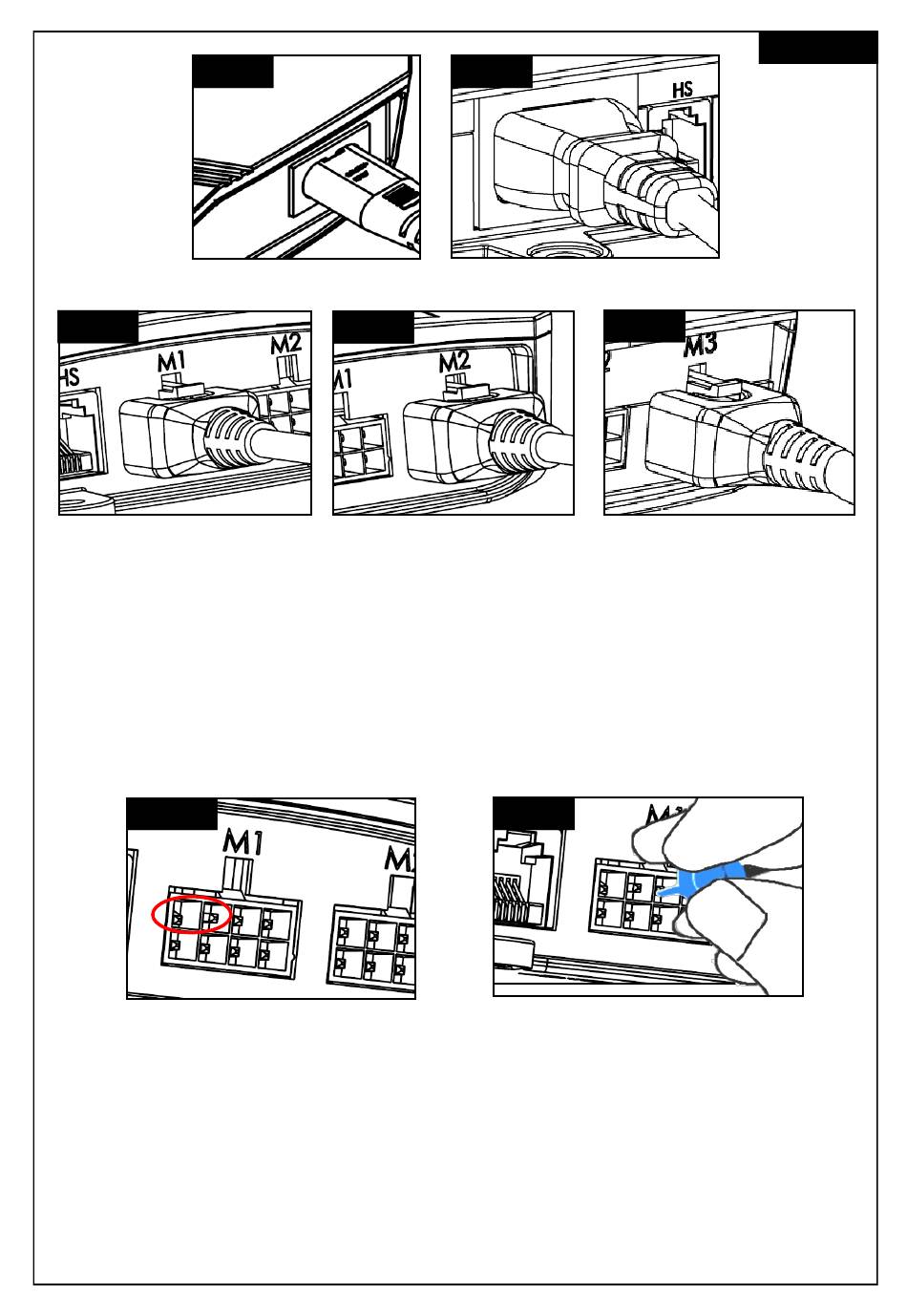

Figure 1.6 and Figure 1.7 Power cord is fully seated in Control Box.
Figure 1.8, Figure 1.9 and Figure 1.10 Motor Cable is fully seated in Control Box.
2. The motor cable doesn't fit into the control-box, what can I do?
• Check the Female-PIN plug on the control-box and ensure proper alignment or check for
damages.
In case of misalignment, take a small needle and realign the PIN.
DAMAGED
Figure 2.1 Pin is damaged due to misalignment.
Figure 1.6
CORRECT
Figure 1.9
CORRECT
Figure 1.7
CORRECT
CORRECT
Figure 2.2 Pin is corrected with a small needle.
English
Figure 1.10
12
