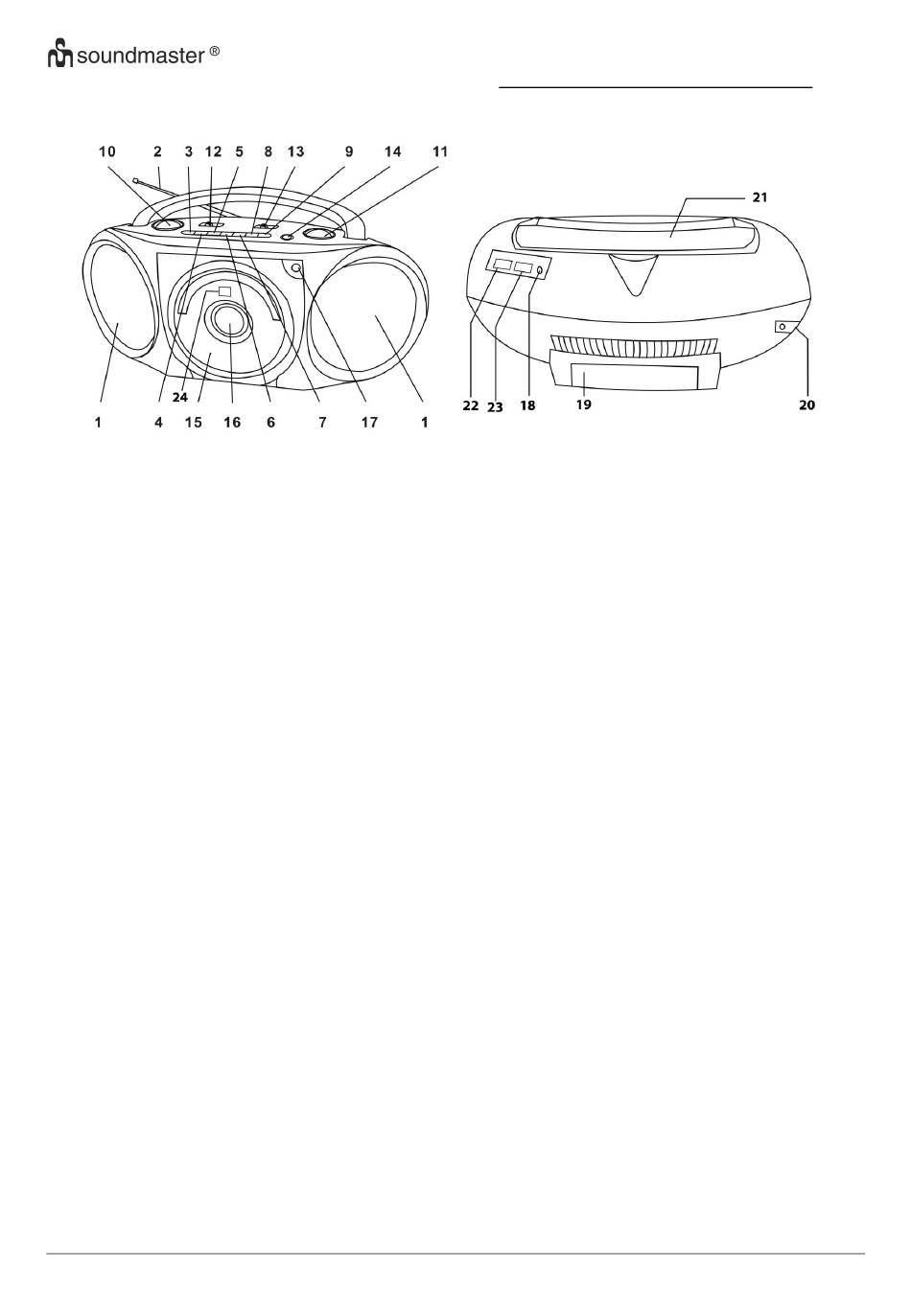

LOCATION OF CONTROLS
1
2
3
4
5
6
7
8
9
10
11
12
AC OPERATION
Before operation, please make sure that the VOLTAGE mentioned on the unit is same as the voltage of your local
area. Unravel the AC power cord, insert one end into the AC socket on the set, and the other end into a standard
AC outlet.
ATTENTION
1. Do not plug or unplug the power cable while you have wet hands.
2. When planning not to use this unit for a long time, disconnect the power cable from the wall outlet.
3. When disconnecting the power cord from the wall outlet, do not pull on the cord in order to avoid shock risks
caused by damaged cable.
BATTERY OPERATION
Disconnect the AC cord set completely. Open the battery compartment door and insert 8 pieces UM-2 "C" size
batteries into the battery compartment with battery polarity as shown inside the battery compartment.
USB CHARGING (1 A)
This product can provide 1A charging when it is under AC operation. You can charge most of the smartphones and
tablets. Please be reminded to connect your device to the correct USB slot.
BASS EFFECT
Press BASS button for bass effect.
RADIO OPERATION
1. Set the FUNCTION switch to RADIO position.
2. Rotate the TUNING control to tune to your desired radio station.
3. Adjust the sound level by rotating the VOLUME control.
4. To turn off the radio, set the FUNCTION switch to OFF position.
FM Stereo/Mono Broadcast
For FM Mono Broadcast, set the BAND switch to FM.
For FM stereo broadcast, set the BAND switch to FM ST. "ST." will be shown on the display.
1
All manuals and user guides at all-guides.com
Speaker
Antenna
FOLDER DOWN Button
FOLDER UP Button
MODE Button
SKIP DOWN Button
SKIP UP Button
STOP/USB Button
PLAY/PAUSE Button
VOLUME Control
TUNING Control
FUNCTION Switch
RCD5000 English Instruction Manual
BAND Switch
13
BASS Button
14
15 CD Compartment
16 LCD Button
17 CD Door Open Button
18 AUX-IN Jack
Battery Compartment
19
AC Socket
20
Handle
21
22 USB Slot (1A Charging)
23 USB Slot (Decoding)
24 NFC Sensor
