SIGNODE BXT2
1
4

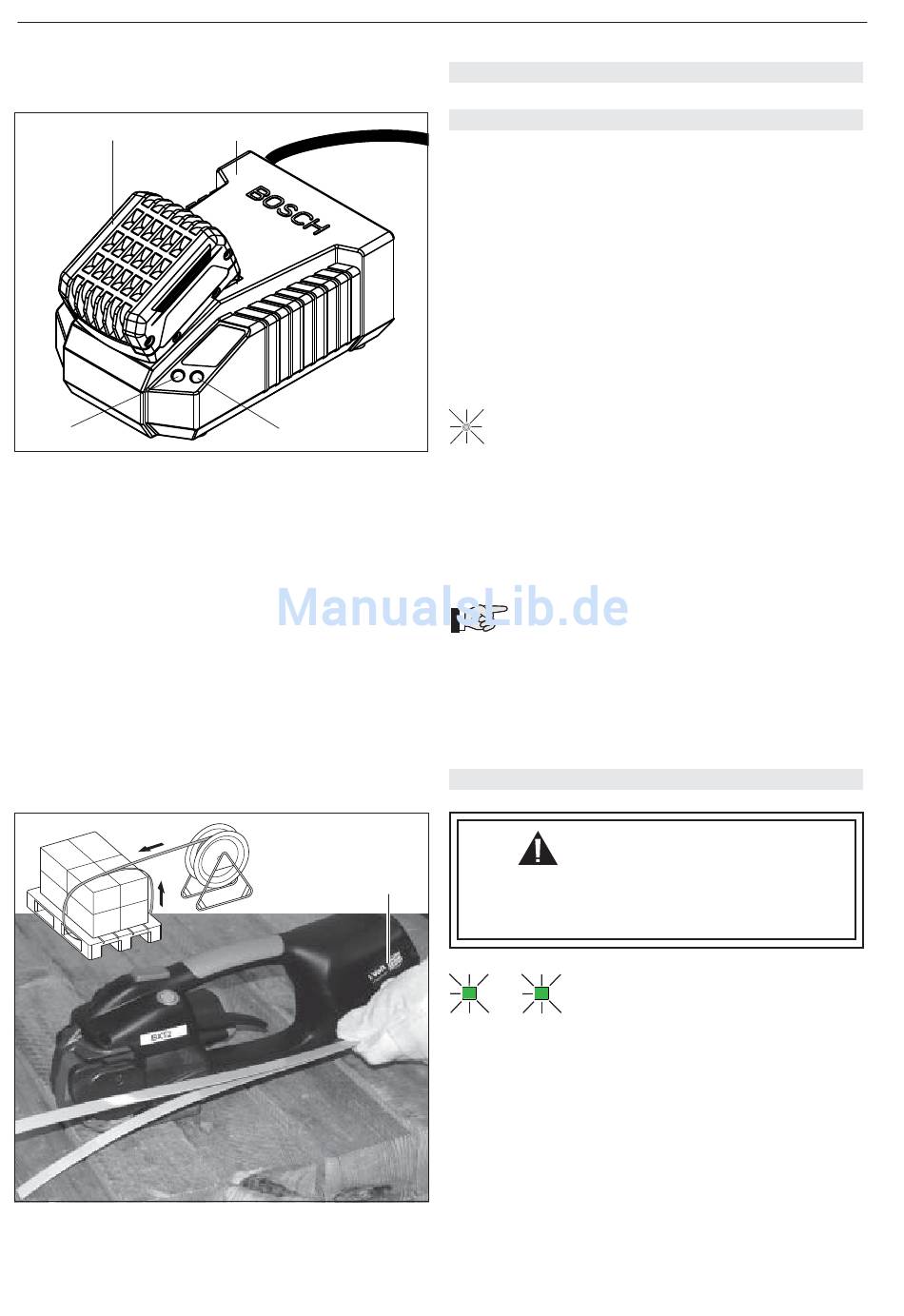

Fig. 4
Fig. 5
14
2
3
1
5
ORERATING INSTRUCTIONS

5.1 CHARGING THE BATTERY

– Connect battery charger AL 1860 CV (4/2) to mains
supply.
– Insert battery 14.4 V (4/1) into battery charger slot.
The charging process and error functions are indicated
by a green (4/3) and a red light (4/4).
For detailed information, refer to the operating instruc-
tions for the battery and battery charger.
Charging times:
– First charging of a new battery, min. 5 hr.
– Recharging of empty battery:
approx. 20 to 45 minutes
Continuous lighting of the green LED (4/3)
+
indicates that the battery is fully charged.
The maximum charging current fl ows when the tempe-
rature of the battery is between 15–40°C (59–104°F).
Avoid charging the battery at temperatures below 0°C
(32°F) and above 40°C (104°F).
Battery can be charged at any time regardless of char-
ging status!
If the battery is not to be used for a longer
period (several days), it should be remo-
ved from the tool and charged/stored in the battery
charger.
To remove battery from tool, depress button on battery
and at the same time pull out battery.

5.2 OPERATING THE TOOL

WARNING
Wear safety glasses. Stand to one side of the
strap when tensioning. Make sure all bystanders
are clear before proceeding.
This description assumes that the
+
MAN. AUTO
mode of operation is adjusted to
„Semi-Auto" (refer to chapter 5.5).
– Insert charged battery (5/1) into strapping tool.
– Place strap round goods to be packaged, so that the
straps lie one above the other on top of package. The
start of the strap is underneath. Hold the straps with
the left hand so that the strap start projects approxima-
tely 20 cm (8") out of the hand.
