Make sure all computers, devices, printers and other components are
powered off.
First, you must determine your setup mode:

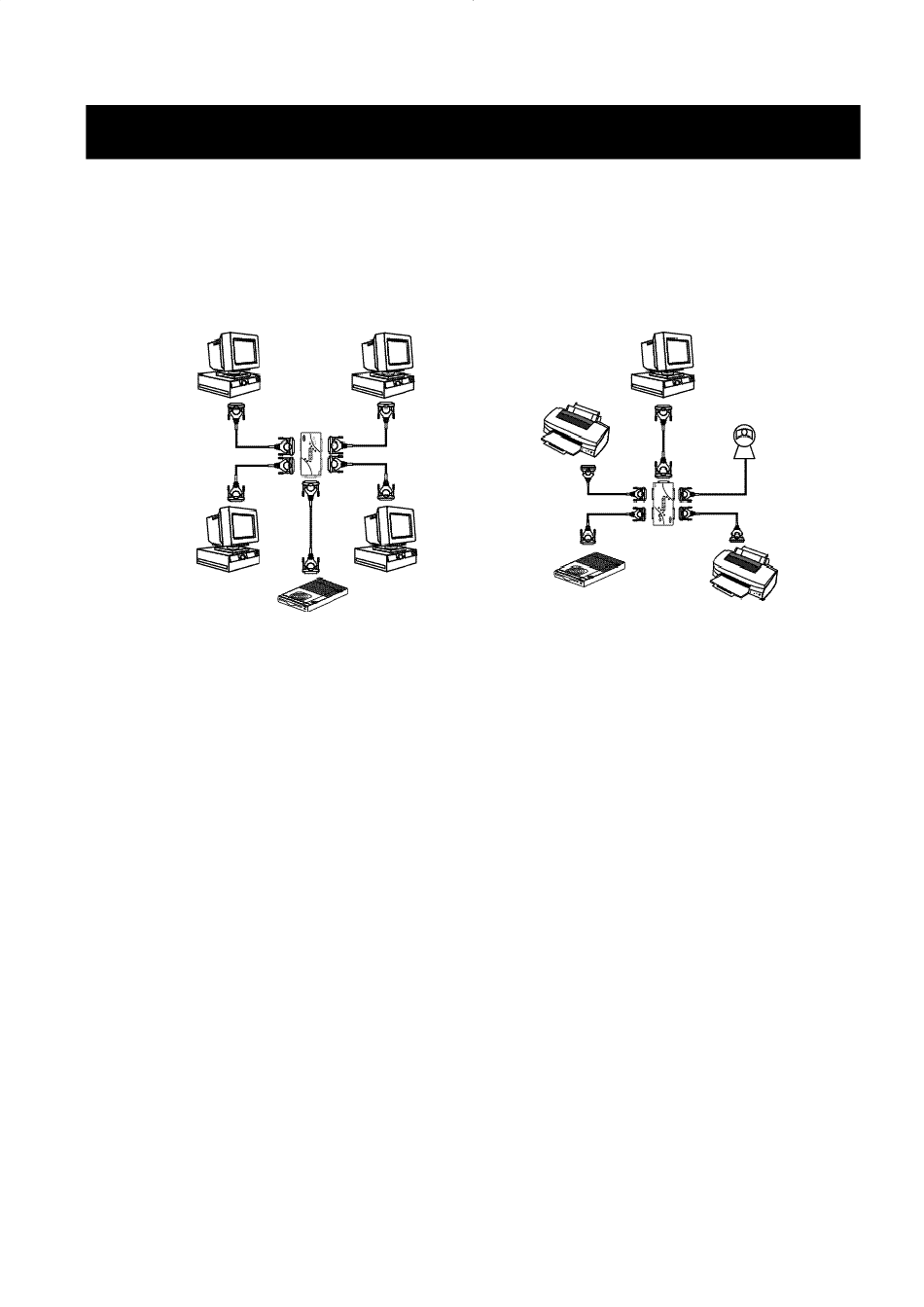

Four PCs sharing one device
This is "4 to 1" mode.
You must then set DIP switch #1 according to your mode. Refer to the
previous page for more info.
• For "4 to 1" mode, DIP switch #1 is set to OFF
• For "1 to 4" mode, DIP switch #1 is set to ON
Set DIP switches 2 and 3 to your preference. See previous page.
Next, connect the computer(s), the device(s) and the Bitronics AutoSwitch
together using the proper cables. From a computer to the AutoSwitch, use an
IEEE DB25 M/M cable, such as the one included in the package. For
connecting a printer to the AutoSwitch, use an IEEE printer cable, such as
Belkin Part# F2A046-XX, where XX is the length in feet.
