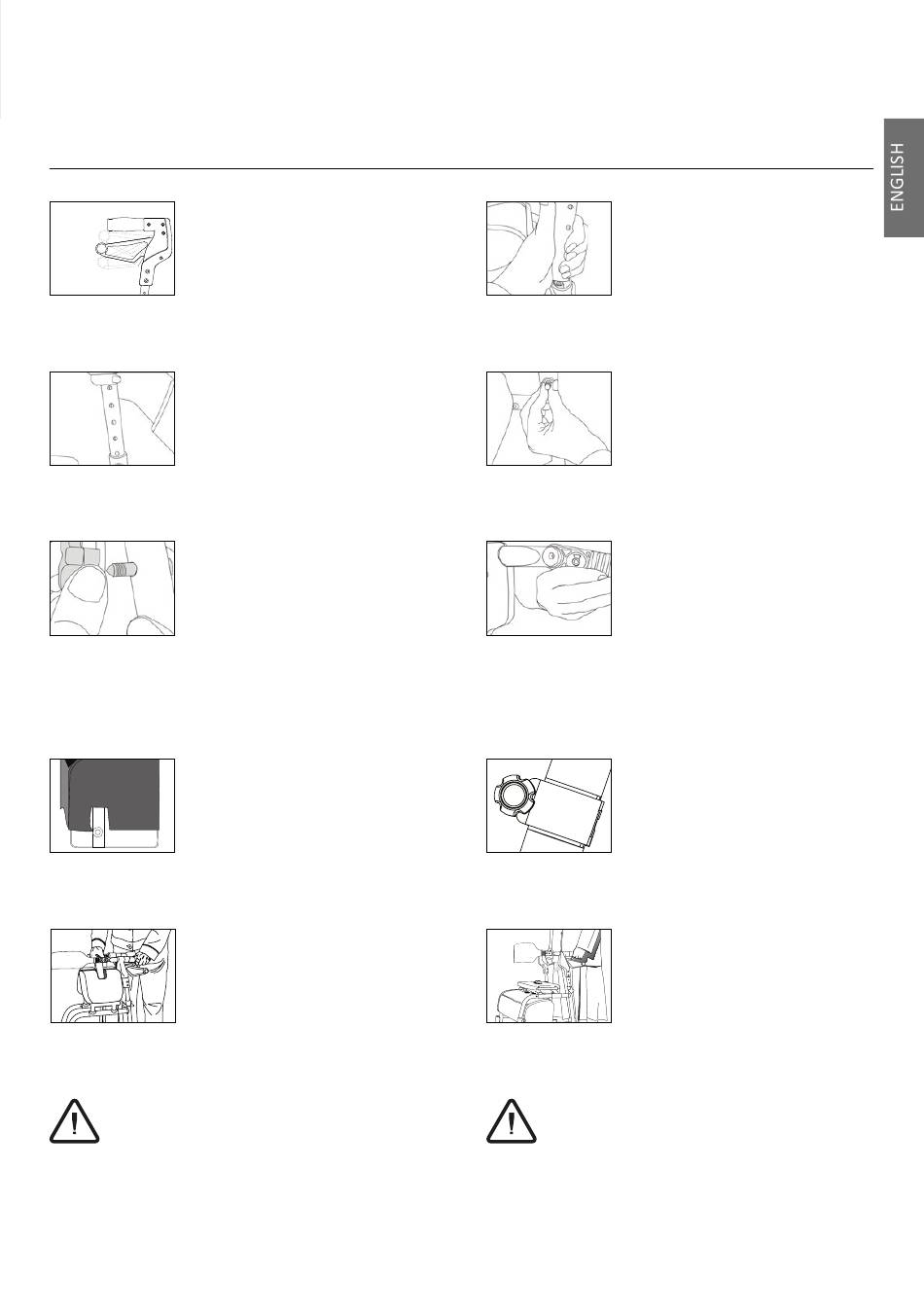

Assembly
Ensure handle is in neutral
position.
Neutral
Set handle to desired height.
Important: Brake handle must
be in neutral position!
Using the pointed end of the
bolt, place it in the hole in
the push handle. At the same
time, tap the brake pad and
slowly push through the bolt.
Installing the soft zippered bag
Slide the metal frame into the
slots on each side of the soft
bag. Each frame side will only
fit on the appropriate soft bag
slot. The clamp should be
visible in the soft bag cut out.
Note: To simplify the assembly
of the soft bag, start by slightly
folding the rollator by pulling
up on the seat handle.
Take care not to strip the clamp
screws when tightening!
Slide upper tube into lower
tube. Important: Upper inter-
nal tube colour must match
colour of lower tube in frame!
Align hexagon shape of bolt in
hexagon shape in plastic cap.
Important: The holes in the
upper and lower internal tubes
will not line up perfectly!
To install backstrap, ensure
key shape faces up. Place into
clamp located at end of handle.
Tighten into place with screw
and nut.
Attach each clamp to the front
rollator frame as shown. Make
sure that each side of the bag is
level and that the clamp is on the
side above the fork cap.
Unfold the rollator once
clamps are secured.
Maximum bag capacity: 11lb/5kg
