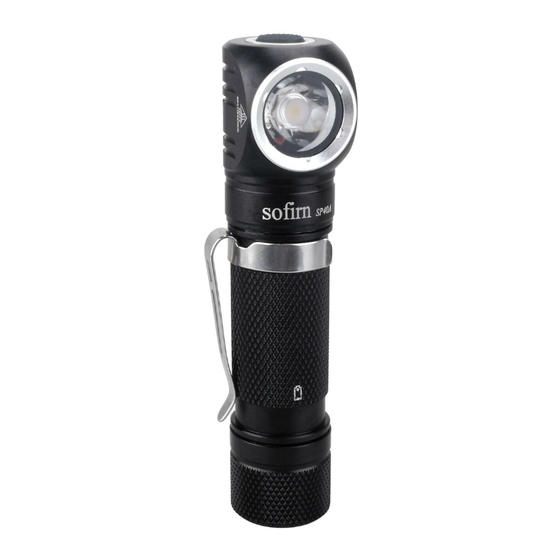

Sofirn SP40 Bedienungsanleitung

Sofirn SP40/SP40A is a powerful headlamp designed for home, EDC or outdoor activities like camping, hiking
etc.. It can be operated from a single 18650 Li-ion rechargeable battery. The switch controls following
functions: Low-Medium-High, hidden Turbo.
SP40 and SP40A share the same body but with different leds.
ANSI/NEMA FL1 Chart
Mode
Luminous Flux
Running Time
Beam Distance
Peak Intensity
Impact Resistance
Water Resistance
Notice: The above mentioned parameters are based on tests according to international flashlight testing standards
(ANSI/NEMA FL1) using one 3400 mAh 18650 Li-ion battery in our laboratory. Results may vary with different battery or
under different environmental conditions.
Specifications:
 Powerful XPL or LH351D led with a lifespan of 50,000 hours
 Working Voltage: 2.8V - 4.2V
 Battery Options: One 18650 Li-ion battery
 Dimension: 108mm (length) × 25mm (head diameter)

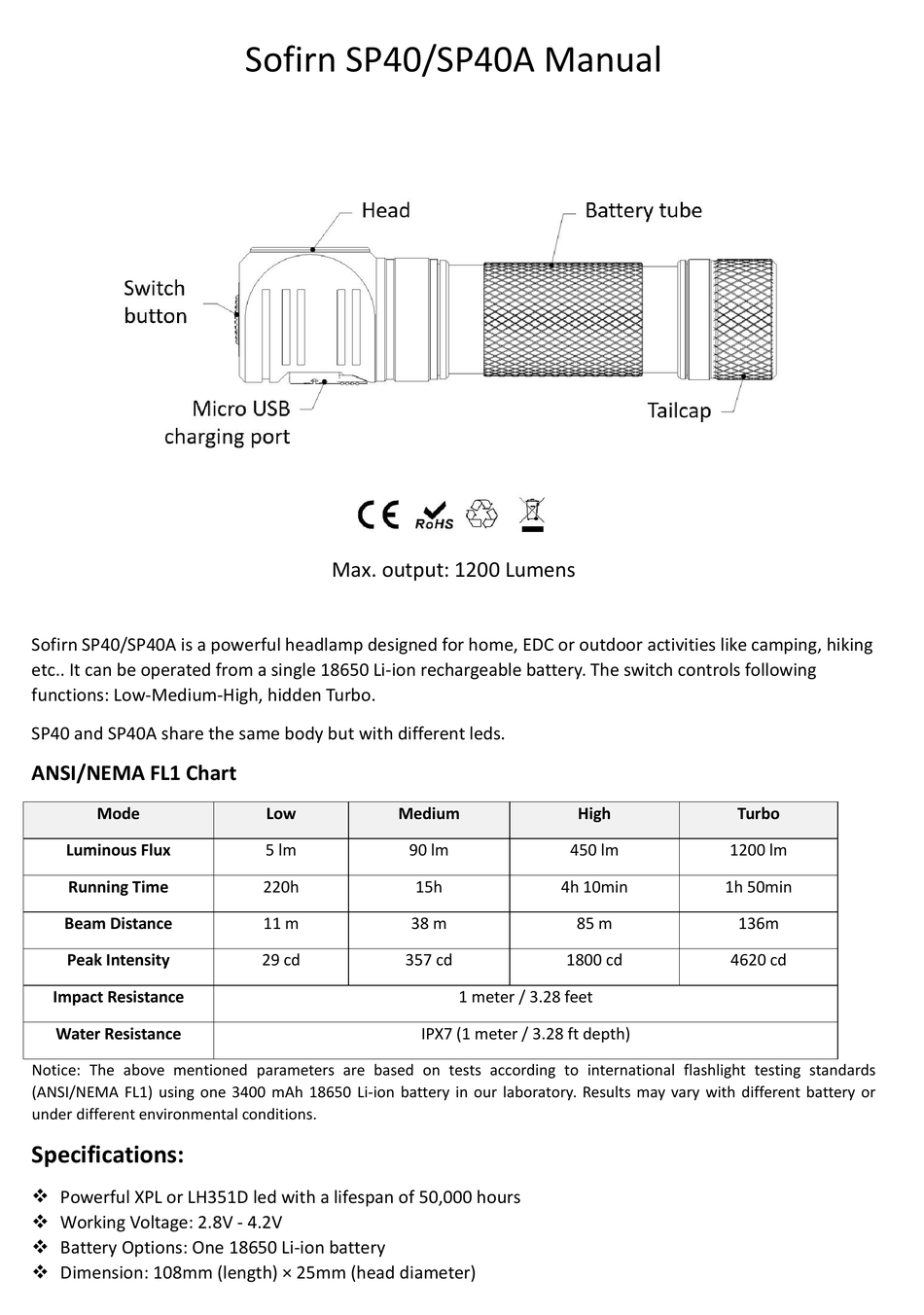

Sofirn SP40/SP40A Manual
Max. output: 1200 Lumens
Low Medium
5 lm 90 lm
220h
11 m 38 m
29 cd 357 cd
High
450 lm
15h 4h 10min
85 m
1800 cd
1 meter / 3.28 feet
IPX7 (1 meter / 3.28 ft depth)
Turbo
1200 lm
1h 50min
136m
4620 cd
