HOMEW

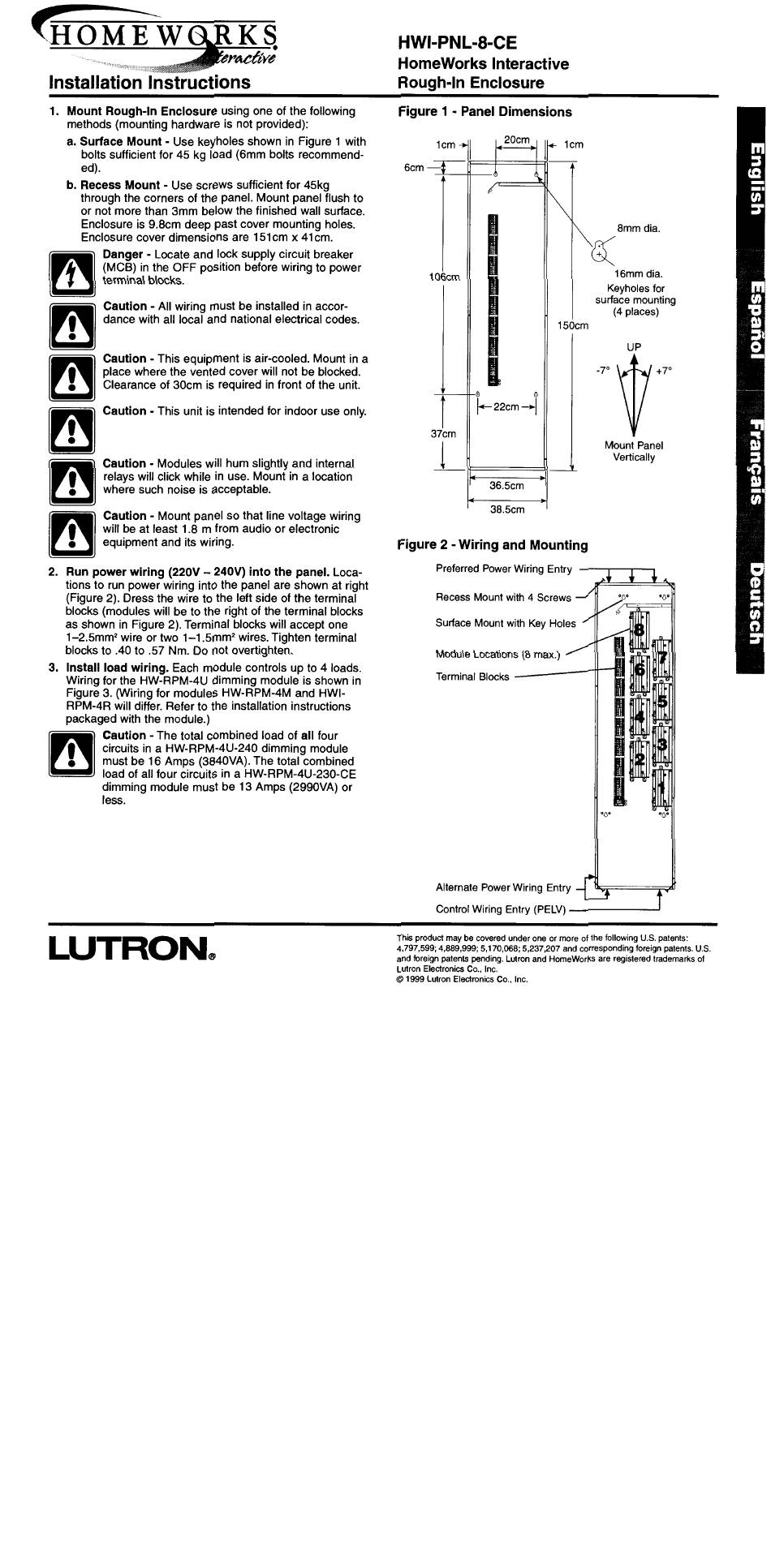

Installation Instructions
Mount Rough-In Enclosure using one of the following
1.
methods (mounting hardware is not provided):
a. Surface Mount - Use keyholes shown in Figure 1 with
bolts sufficient for 45 kg load (6mm bolts recommend-
ed).
b. Recess Mount - Use screws sufficient for 45kg
through the corners of the panel. Mount panel flush to
or not more than 3mm
Enclosure is 9.8cm deep past cover mounting holes.
Enclosure cover dimensions
Danger - Locate and lock supply circuit breaker
(MCB) in the OFF position before wiring to power
terminal blocks.
Caution - All wiring must be installed in accor-
dance with all local
Caution - This equipment is air-cooled. Mount in a
place where the vented cover will not be blocked.
Clearance of 30cm is required in front of the unit.
Caution This unit is intended for indoor use only.
Caution - Modules will hum slightly and internal
relays will click while in use. Mount in a location
where such noise is acceptable.
Caution - Mount panel so that line voltage wiring
will be at least 1.8 m from
equipment and its wiring.
Run power wiring (220V —240V) into the panel. Loca-
2.
tions to run power wiring into the panel are shown at right
(Figure 2). Dress the wire to the left side of the terminal
blocks (modules will be to the right of the terminal blocks
as shown in Figure 2). Terminal blocks will accept one
1—2.5mm2wire or two 1—1.5mm2 wires. Tighten terminal
blocks to .40 to .57 Nm. Do not overtighten.
3. Install load wiring. Each module controls up to 4 loads.
Wiring for the HW-RPM-4U
Figure 3. (Wiring for modules HW-RPM-4M and HWI-
RPM-4R will differ. Refer
packaged with the module.)
Caution - The total combined
circuits in a HW-RPM-4U-240
must be 16 Amps (3840VA). The total combined
load of all four circuits
dimming module must be 13 Amps (2990VA) or
less.
LUTRON.
erncåve
below the finished wall surface.
are 151cm x 41cm.
and national electrical codes.
audio or electronic
dimming module is shown in
to the installation instructions
load of all four
dimming module
in a HW-RPM-4U-230-CE
HWl-PNL-8-CE
HomeWorks Interactive
Rough-In Enclosure
Figure 1 - Panel Dimensions
20cm
lcm
6cm —
106cm
37cm
36.5cm
38.5cm
Figure 2 - Wiring and Mounting
Preferred PowerWiring Entry
Recess Mount with 4 Screws
Surface Mount with Key Holes
Module Locations (8 max.)
Terminal Blocks
Alternate Power Wiring Entry
Control Wiring Entry (PELV)
produd may be covered under one or more of the following US. patents:
4,889,999; 5, 170,068; 5,237207 and corresponding foreign patents. U.s.
and foreign patents pending. Lutron and HomeWorks are registered trademarks of
Lutron Co., Inc.
01999 Lutron Co., Inc.
lcm
8mm dia.
16mm dia.
Keyholes for
surface mounting
(4 places)
150cm
-70 70
Mount Panel
Vertically
