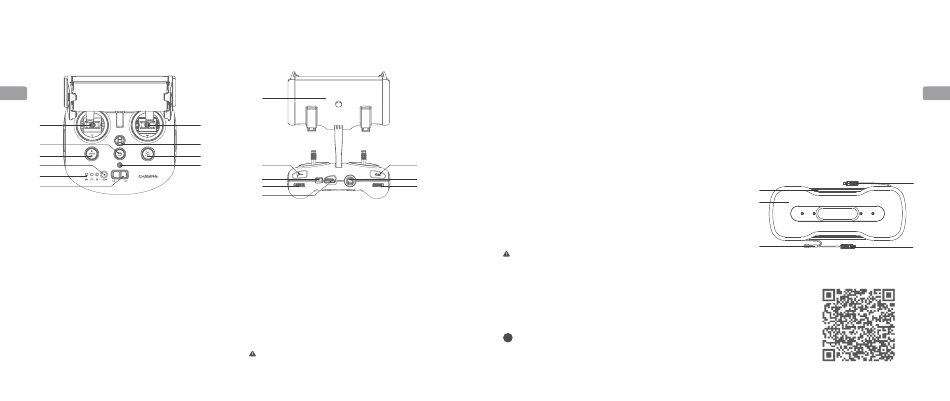

Remote controller

EN
9
6
5
3
4
1
1. Power switch: turn on/off remote controller.
2. Power indicator: green light (high battery level); blue light (medium
battery level); red light (low battery level).
3. Wi-Fi switch button: switch between 2.4G/5G Wi-Fi.
4. Remote controller connection indicator: ROV/2.4G/5G.
5. One-key reset: in any posture, the ROV can be reset to the horizontal
state.
Long press to switch the control mode.
6. Unlock: lock/unlock the motor, the current state of the motor can be
confirmed in the App.
7. Fill light control button: fill light [off/medium brightness/high
brightness] control.
8. Safety buckle: can be used with a safety rope to prevent the remote
controller from falling.
9. Control stick: used to control the navigation of the ROV. Refer to the
navigation posture for specific operations.
17
9
8
7
10
2
14
12
15
10. Grabber claw button: Press and hold to enable/disable grabber claw
function.
11. Video/Photo: short press to take photo/start or end video recording;
long press to switch between photo and video mode.
12. Right scroll wheel: Control opening and closing of the grabber claw.
13. Left scroll wheel: adjust the pitch angle.
14. Type-C port: direct communication between the controller and the
mobile phone/tablet.
15. HDMI port: 1080P high-definition real-time image output.
16. Tether cable socket/charging port.
17. Mobile phone/tablet bracket: used to attach the mobile phone/tablet.
Open both ends to insert the device, then press the button on the back
to tighten the device.
Note: Damage caused by immersion in liquid is not covered by the
warranty. To avoid damage, do not put the remote controller in water.
Remote controller indicator light
Battery: The battery indicator light has three color states. Red: the red light stays on without flashing when the battery level is between 10% and 30%; the red
light flashes when the battery level is between 0% and 10%. Blue: the blue light stays on without flashing when the battery level is between 30% and
70%.
Green: the green light stays on without flashing when the battery level is between 70% and 100%.
2.4G: Wi-Fi indicator light, always on when the 2.4G frequency band is working.
5G: Wi-Fi indicator light, always on when the 5G frequency band is working.
ROV: communication between the remote controller and the ROV (flashing: not connected, steady: connected).
One-key reset button: when the machine is in a non-horizontal state, the blue light under the button is always on.
Unlock button: after unlocking, the blue light under the button is always on.
Fill light button: when the fill light is bright, the blue light under the button is always on. when the fill light is low, the blue light under the button flashes. when the
11
fill light is turned off, the blue light under the button is off.
16
100/200m tether cable & winder
13
The winder is used to store the tether cable, and the tether cable is used to connect the ROV
and the controller.
1. Tether cable socket
3. Tether cable
Note: Do not put the unconnected tether cable socket into the water or allow liquid to
splash into it. Check whether the O-ring on the tether cable socket is missing or damaged.
If so, please replace it before use.

Installation and connection

1
Install the CHASING GO1 App
CHASING GO1 App: (For iOS 9.0/Android 4.4 and above) Scan the QR code below to
download or visit the iOS App Store/Google Play to download.
3
2
2. Winder shell
4
4. Hanging buckle
