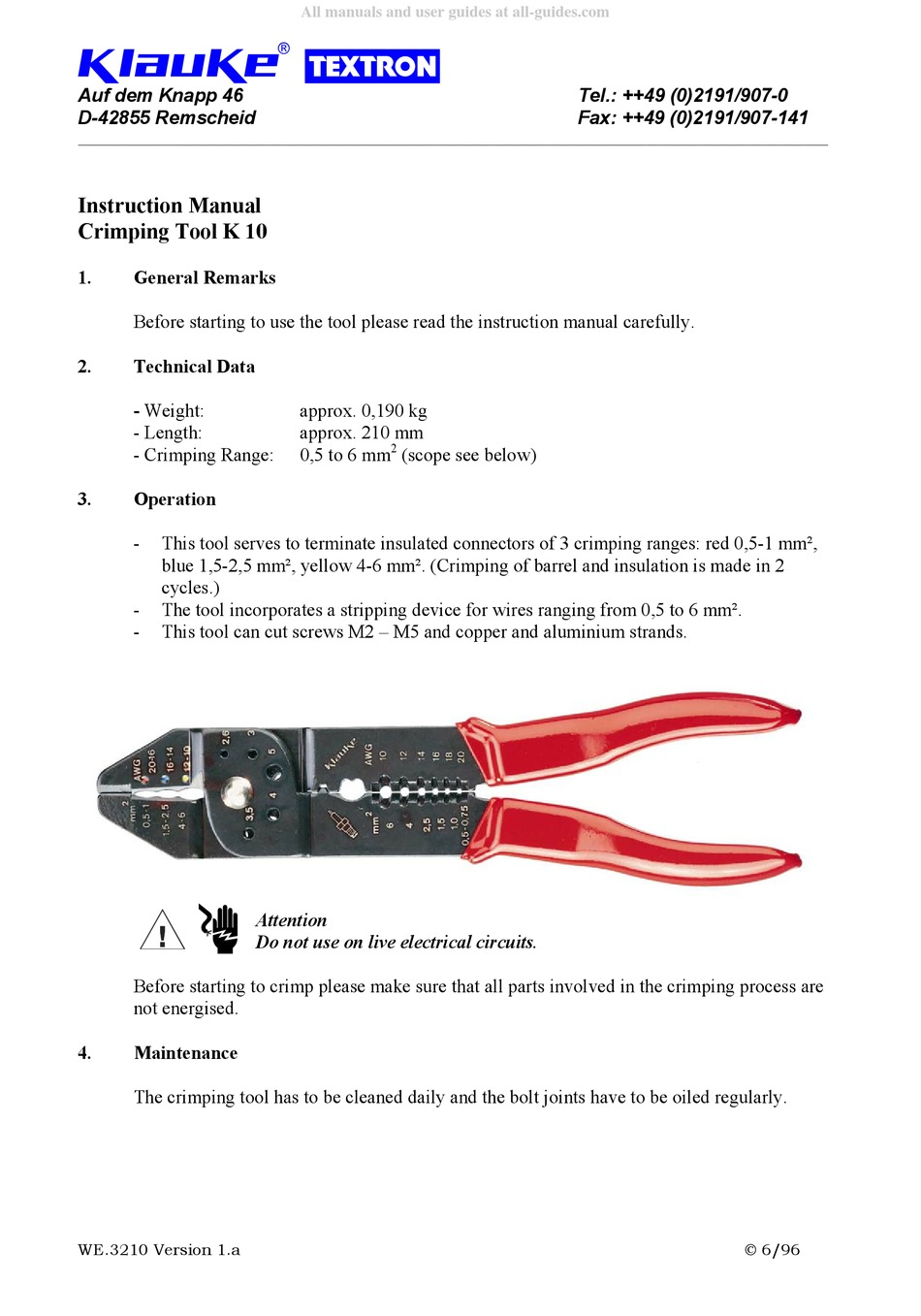

Instruction Manual
Crimping Tool K 10
1.
General Remarks
Before starting to use the tool please read the instruction manual carefully.
2.
Technical Data
- Weight:
- Length:
- Crimping Range:
3.
Operation
-
This tool serves to terminate insulated connectors of 3 crimping ranges: red 0,5-1 mm²,
blue 1,5-2,5 mm², yellow 4-6 mm². (Crimping of barrel and insulation is made in 2
cycles.)
-
The tool incorporates a stripping device for wires ranging from 0,5 to 6 mm².
-
This tool can cut screws M2 – M5 and copper and aluminium strands.
Before starting to crimp please make sure that all parts involved in the crimping process are
not energised.
4.
Maintenance
The crimping tool has to be cleaned daily and the bolt joints have to be oiled regularly.
WE.3210 Version 1.a
All manuals and user guides at all-guides.com
approx. 0,190 kg
approx. 210 mm
2
0,5 to 6 mm
(scope see below)
Attention
Do not use on live electrical circuits.
