Evolution R355CPS Bersetzung Der Originalbetriebsanleitung Seite 4

Fig. 13
b
a
Fig. 14

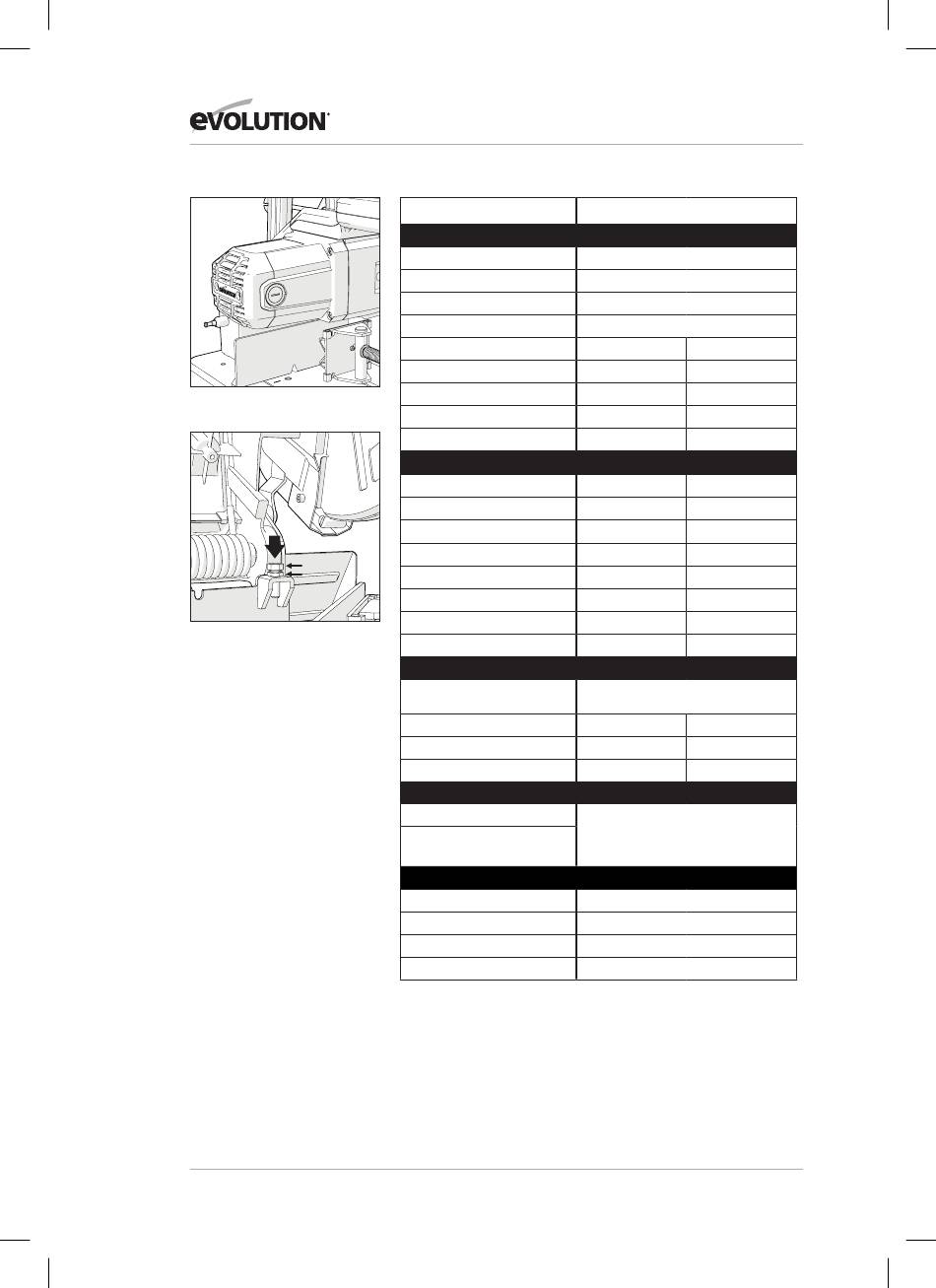

SPECIFICATIONS
MACHINE
Motor (UK/EU) 220V-240V ~ 50Hz
Motor (UK) 110V ~ 50Hz
Motor (USA) 120V ~ 60Hz
Motor (AUS) 240V ~ 50Hz
Speed (No Load) @ 110V
Speed (No Load) @ 120V
Speed (No Load) @ 220-240V
Weight (With Blade)
Power Cord
CUTTING CAPACITY
Mild Steel Plate (Max. Thickness)
Square Tube at 90˚
Square Tube at 45˚
Rectangle Tube at 90°
Rectangle Tube at 45°
Round Tube at 90°
Round Tube at 45°
Minimum Cut Off Piece Length
BLADE
Model No.
Diameter
Bore
Kerf
NOISE EMISSION DATA*
Sound Pressure Level L
PA
Sound Power Level L
WA
MODELS
United Kingdom
United States
Europe
Australia
WARNING: Due to the power input of this product on start up, voltage drops
may occur and this can influence other equipment (e.g. dimming lights). So for
technical reasons we advise, if the mains-impedance is Zmax< 0.264Ω, these
disturbances are not expected. If you require further clarification, you may
contact your local power supply authority.
4
www.evolutionpowertools.com
R355CPS
METRIC IMPERIAL
2200W
1600W
15A
2200W
1550 min -1 1550 rpm
1450 min -1 1450 rpm
1550 min -1 1550 rpm
21.5 kg 47 lbs
2 m 6 feet
6mm 1/4"
120 x 120mm 4-3/4" x 4-3/4"
89 x 89mm 3-1/2" x 3-1/2"
95 x 180mm 3-3/4" x 7-1/8"
78 x 110mm 3-1/8" x 4-3/8"
Ø 130mm Ø 5-1/8"
Ø 105mm Ø 4-1/8"
8mm 5/16"
RAGEBLADE355MULTI (UK/EU)
RAGE355BLADE (USA)
355mm 14"
25.4mm 1"
2.2mm 0-3/32"
110V: 100,5dB(A), K=3dB(A) /
220-240V: 97,3dB(A), K=3dB(A)
110V: 111,5dB(A), K=3dB(A) /
220-240V: 108,3dB(A), K=3dB(A)
(230V) 083-0001, (110v) 083-0002
(120V) 083-0004
(230V) 083-0003
(230V) 083-0006
