EXTENSION ARMS

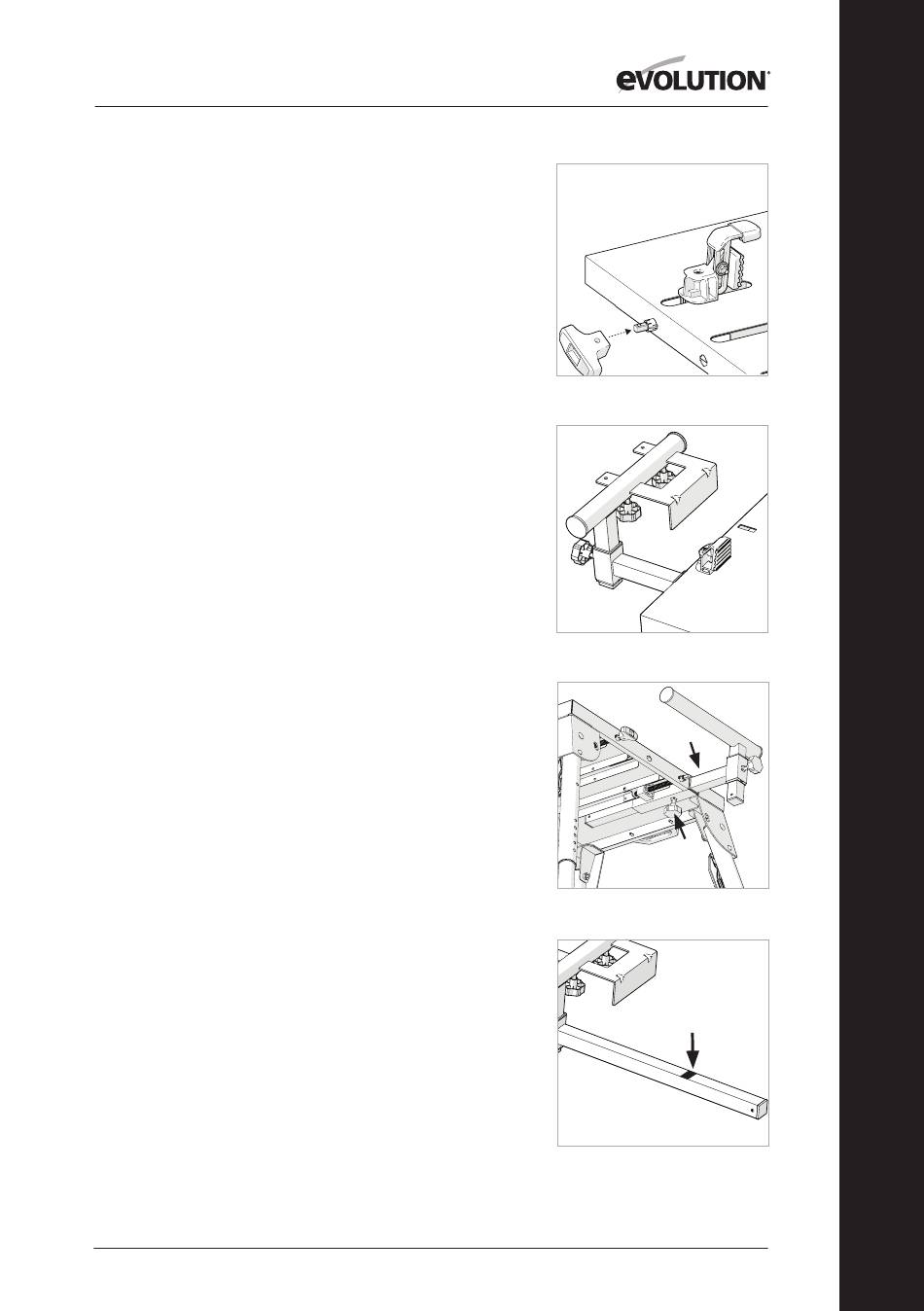

(Fig.10)
Note: The supplied extension arms are not 'handed' and
will fit either the RH (right hand) or LH (left hand) sides of
the machine table.
To fit the extension arms
• The extension arms slide through the square section
guide tubes located on the underside of the stands
table top (Fig. 11a).
A locking screw (Fig. 11b) is located on both of the
•
square section guide tubes.
When an extension arm is adjusted to the required
position, tightening the locking screw will secure the
extension arm in place.
WARNING: The extension arms must not be withdrawn
beyond the maximum safe working limit. To aid the
operator a safety index mark is printed onto the surface of
the extension arms (Fig. 12).
