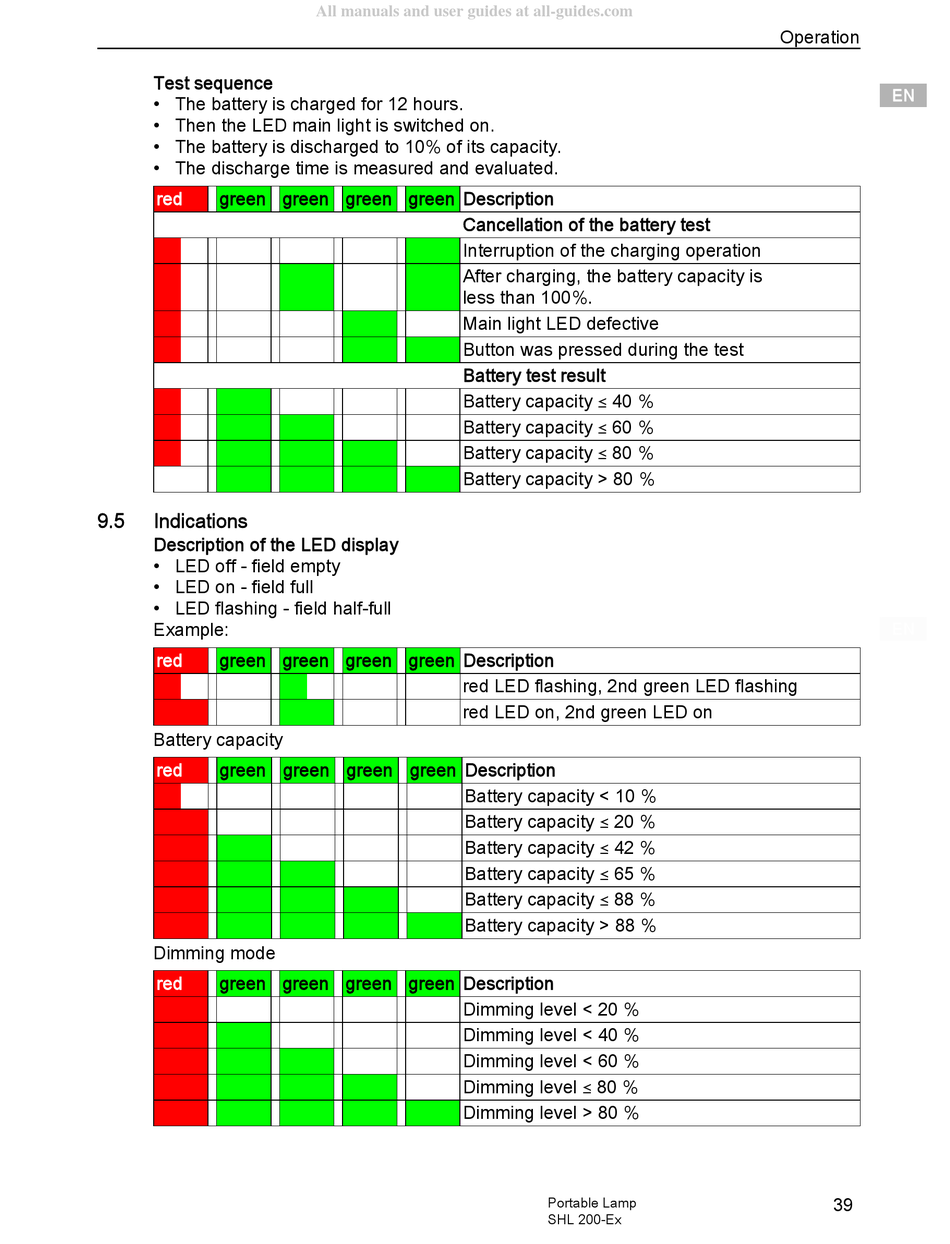

Test sequence
• The battery is charged for 12 hours.
• Then the LED main light is switched on.
• The battery is discharged to 10% of its capacity.
• The discharge time is measured and evaluated.
red green green green green Description
9.5 Indications
Description of the LED display
• LED off - field empty
• LED on - field full
• LED flashing - field half-full
Example:
red green green green green Description
Battery capacity
red green green green green Description
Dimming mode
red green green green green Description
All manuals and user guides at all-guides.com
Cancellation of the battery test
Interruption of the charging operation
After charging, the battery capacity is
less than 100%.
Main light LED defective
Button was pressed during the test
Battery test result
Battery capacity ( 40 %
Battery capacity ( 60 %
Battery capacity ( 80 %
Battery capacity > 80 %
red LED flashing, 2nd green LED flashing
red LED on, 2nd green LED on
Battery capacity < 10 %
Battery capacity ( 20 %
Battery capacity ( 42 %
Battery capacity ( 65 %
Battery capacity ( 88 %
Battery capacity > 88 %
Dimming level < 20 %
Dimming level < 40 %
Dimming level < 60 %
Dimming level ( 80 %
Dimming level > 80 %
Portable Lamp
SHL 200-Ex
