2. 15A (DFC-10P) / 30A (DFC-30P) fuse
3. 6/12V (DFC-10P) / 12/24V (DFC-30P) switch
4. 3A (DFC-10P) / 5A (DFC-30P) fuse
5. Amp output switch, MIN - Trickle charge / MAX - Fast Charge
1. Ammeter - displays current / load
2. Mode switch - charging / jump start
3. 12 / 24 Volt switch
4. 10 Amp fuse
5. Amp output switch, MIN - Trickle charge / MAX - Fast Charge
6
DFC-10P / DFC-30P / DFC-50P / DFC-450P / DFC-650P English
1. Ammeter - displays current / load
2. '1-2' Function - Adjusts ampere output
3. Amp output switch, MIN - Trickle charge / MAX - Fast Charge
4. Mode switch - charging / jump start
All manuals and user guides at all-guides.com

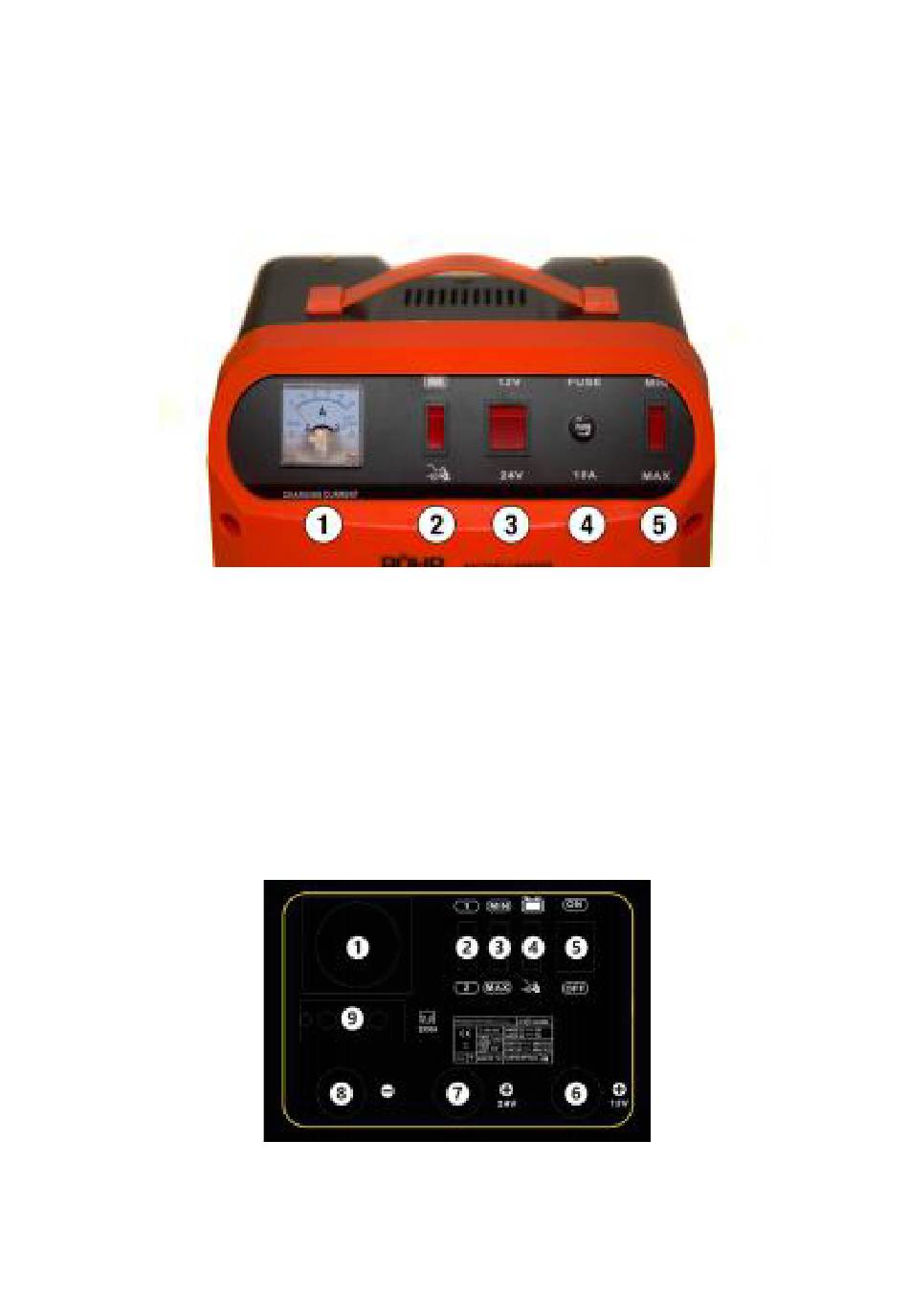

Fig.2 - Panel Controls for the DFC-50P
© ROHR
Fig.3 - Panel Controls for the DFC-450P
